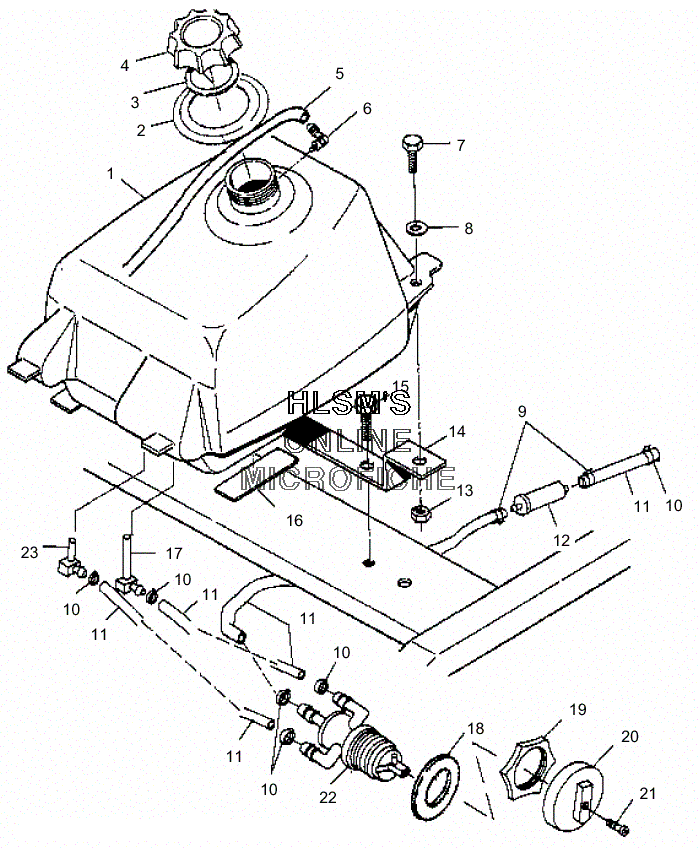

FUEL TANK для Polaris SCRAMBLER 2X4 (A00BA38CA) - 2000 года выпуска
-
№АртикулНазвание
-
11240048 FUEL TANK, 90, PERPENDICULARFUEL TANK, 90, PERPENDICULAR
-
11240082 FUEL TANK, 90, PERPENDICULAR (INCL. 6,17,23) (BUILT AFTER8/16/99)FUEL TANK, 90, PERPENDICULAR (INCL. 6,17,23) (BUILT AFTER8/16/99)
-
25410842 GROMMET, FUEL TANKGROMMET, FUEL TANK
-
35810144 GASKET, GAS CAPGASKET, GAS CAP
-
45430725 CAP, GAS (BLACK)CAP, GAS (BLACK)
-
58360009-600 FUEL LINE (1/8 ID,600 CM.) (OPT)FUEL LINE (1/8 ID,600 CM.) (OPT)
-
65431053 VENT, TANKVENT, TANK
-
77512310 SCREWSCREW
-
87555734 WASHERWASHER
-
97080534 CLAMP, SPRINGCLAMP, SPRING
-
107080003 CLAMP, HOSECLAMP, HOSE
-
118450040-600 FUEL LINE, 1/4 ID (600 CM.) (OPT)FUEL LINE, 1/4 ID (600 CM.) (OPT)
-
122530008 FILTER FUELFILTER FUEL
-
137542324 NUTNUT
-
145220916-067 BRACKET,REAR TANK MOUNT (BLACK)BRACKET,REAR TANK MOUNT (BLACK)
-
157512208 SCREWSCREW
-
168360026 PAD,BULK FUEL(OPT)PAD,BULK FUEL(OPT)
-
177052147 ELBOW, MAINELBOW, MAIN
-
185242977 SPACER, FUEL VALVESPACER, FUEL VALVE
-
195432733 NUT, FUEL VALVE ATVNUT, FUEL VALVE ATV
-
205432559 KNOB, FUEL VALVEKNOB, FUEL VALVE
-
217517505 SCREWSCREW
-
227052154 VALVE, 3-WAY HORIZ PORTSVALVE, 3-WAY HORIZ PORTS
-
237052148 FITTING, FUEL OUT (90 DEG)FITTING, FUEL OUT (90 DEG)
