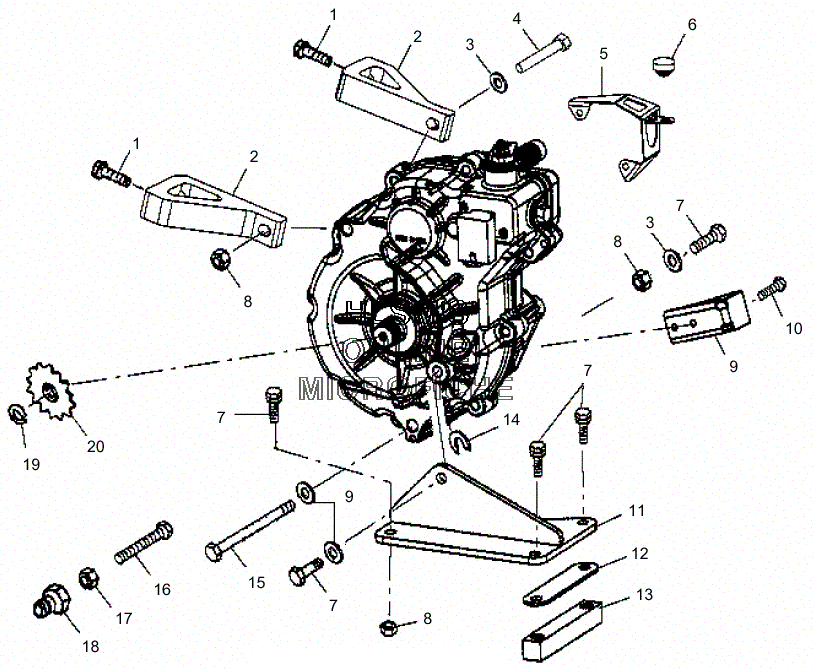

GEARCASE MOUNTING для Polaris SCRAMBLER 2X4 (A00BA38CA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7517632 SCREW
    SCREW
  • 2
    5132046 MOUNT, TRANSMISSION REAR
    MOUNT, TRANSMISSION REAR
  • 3
    7555806 WASHER
    WASHER
  • 4
    7517642 SCREW
    SCREW
  • 5
    5243943-067 BRACKET, CARB DAMPENER SPORT (BLACK)
    BRACKET, CARB DAMPENER SPORT (BLACK)
  • 6
    5410414 BUMPER, RUBBER
    BUMPER, RUBBER
  • 7
    7512492 SCREW
    SCREW
  • 8
    7542423 NUT
    NUT
  • 9
    1012785-067 BRKT, TORQUE STOP (BLACK)
    BRKT, TORQUE STOP (BLACK)
  • 10
    7512325 BOLT
    BOLT
  • 11
    1012886-067 MOUNT, TRANSMISSION 2X4 (BLACK)
    MOUNT, TRANSMISSION 2X4 (BLACK)
  • 12
    5243296-067 SPACER, TRANSMISSION MOUNT (BLACK)
    SPACER, TRANSMISSION MOUNT (BLACK)
  • 13
    5243306 MOUNT, TRANSMISSION 2X4
    MOUNT, TRANSMISSION 2X4
  • 14
    5210764 SPACER (.020) (OPT)
    SPACER (.020) (OPT)
  • 14
    5211065 SHIM, GEARCASE (.010) (OPT)
    SHIM, GEARCASE (.010) (OPT)
  • 14
    5211517 SHIM (.030) (OPT)
    SHIM (.030) (OPT)
  • 15
    7517646 SCREW
    SCREW
  • 16
    7517631 SCREW
    SCREW
  • 19
    7710434 RING, SNAP
    RING, SNAP
  • 20
    3221041 SPKT (13 TEETH) (SPLINED)
    SPKT (13 TEETH) (SPLINED)
