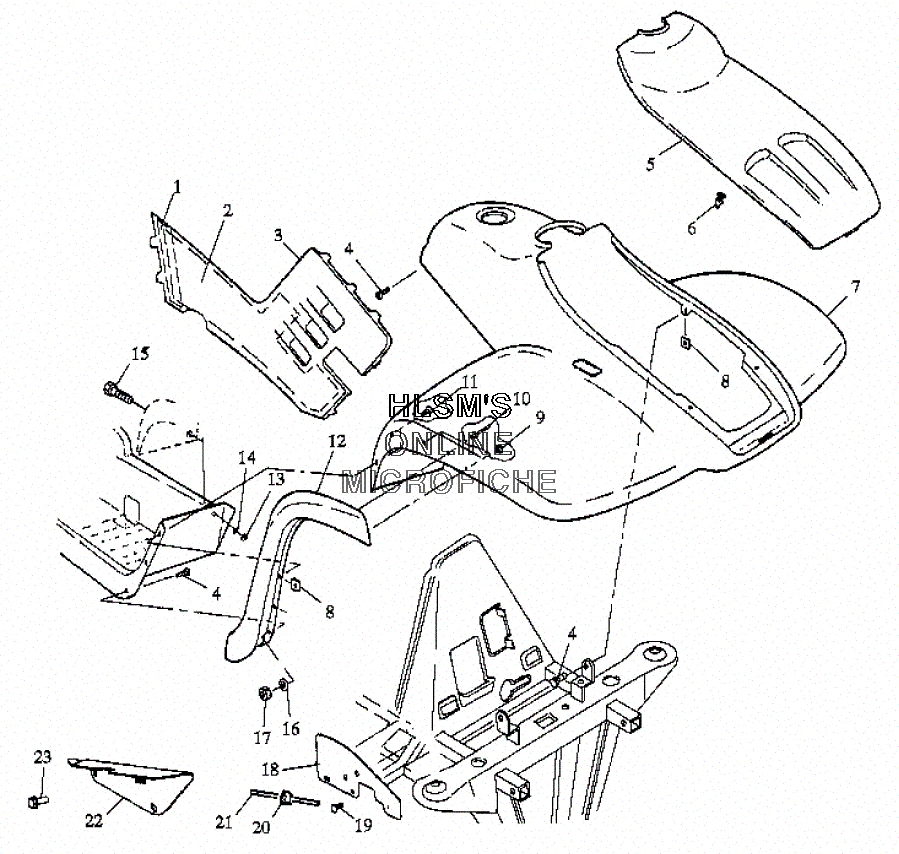

FENDER - FRONT W/ SIDE PANELS для Polaris DIESEL (A00CH46CA) - 2000 года выпуска`
-
№АртикулНазвание
-
15811491 FOIL, SIDEPANEL GEN IV (RIGHT)FOIL, SIDEPANEL GEN IV (RIGHT)
-
25811743 FOIL, FOAM SIDE PANELFOIL, FOAM SIDE PANEL
-
32632017-157 PANEL, ASSY. SIDE (RIGHT/BONNIE BLUE)PANEL, ASSY. SIDE (RIGHT/BONNIE BLUE)
-
35431809-157 PANEL, SIDE (LEFT/BONNIE BLUE)PANEL, SIDE (LEFT/BONNIE BLUE)
-
47512232 BOLTBOLT
-
55432088-157 COVER (FRONT/BONNIE BLUE)COVER (FRONT/BONNIE BLUE)
-
67670085 CLIP, SPRINGCLIP, SPRING
-
72631987-157 CAB, SERVICE (FRONT/BONNIE BLUE)CAB, SERVICE (FRONT/BONNIE BLUE)
-
87670057 NUT, SPEEDNUT, SPEED
-
97670068 NUT, PUSH-ONNUT, PUSH-ON
-
107661645 RIVETRIVET
-
117517312 SCREWSCREW
-
125431798 GUARD, MUD (FRONT/LEFT/BLACK)GUARD, MUD (FRONT/LEFT/BLACK)
-
125431799 GUARD, MUD (FRONT/RIGHT/BLACK)GUARD, MUD (FRONT/RIGHT/BLACK)
-
137541925 NUTNUT
-
147555792 WASHERWASHER
-
157512085 SCREWSCREW
-
167555931 WASHERWASHER
-
177542122 NUT, LOCKNUT, LOCK
-
185811917 SHIELD, DEFLECTORSHIELD, DEFLECTOR
-
197670090 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
207670109 CLIP, ROUTINGCLIP, ROUTING
-
215411778 (OPT)(OPT)
-
225244913-067 GUARD, SPLASH SPORTMAN (LEFT/BLACK)GUARD, SPLASH SPORTMAN (LEFT/BLACK)
-
225244914-067 GUARD, SPLASH SPORTMAN (RIGHT/BLACK)GUARD, SPLASH SPORTMAN (RIGHT/BLACK)
-
237515194 SCREWSCREW
