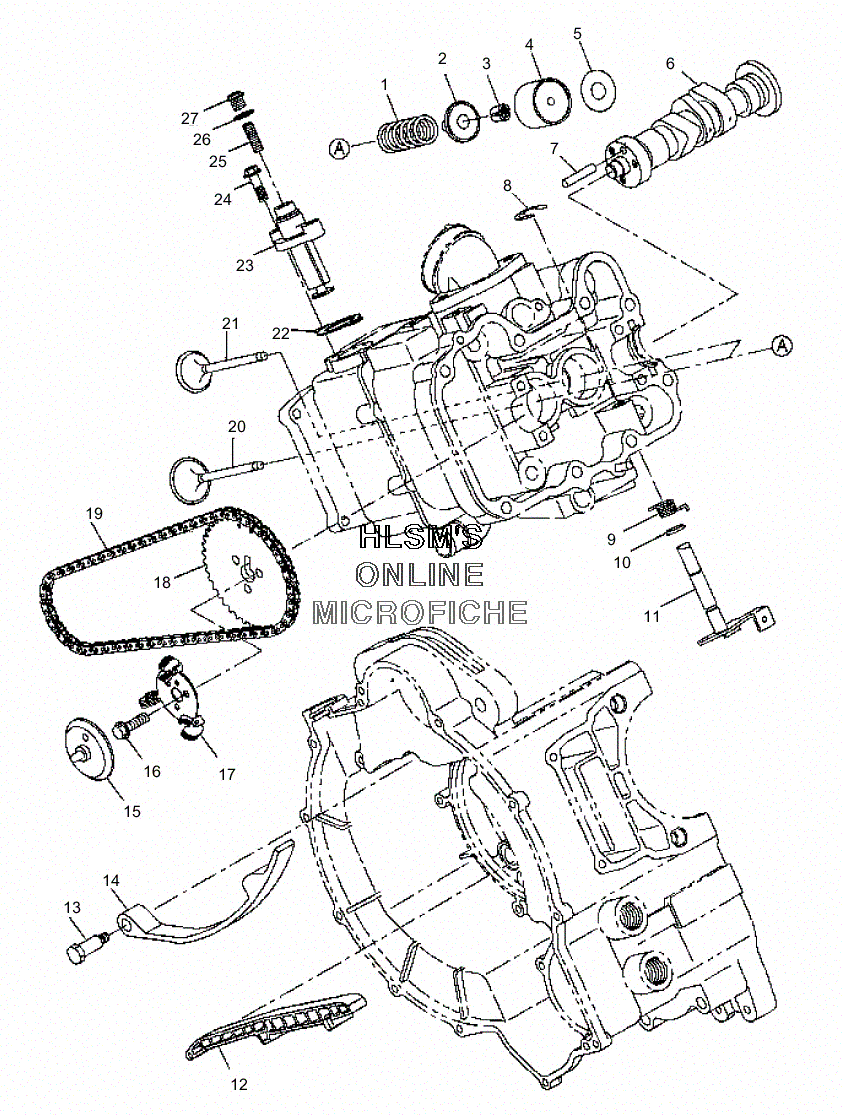

CAMSHAFT W/ VALVE ASSY. для Polaris DIESEL (A00CH46CA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    3085992 SPRING, VALVE
    SPRING, VALVE
  • 2
    3085993 RETAINER, VALVE SPRING
    RETAINER, VALVE SPRING
  • 3
    3084908 COLLET, VALVE
    COLLET, VALVE
  • 4
    3085994 VALVE, LIFTER
    VALVE, LIFTER
  • 5
    3085995 SHIM, VALVE (2.800) (OPT)
    SHIM, VALVE (2.800) (OPT)
  • 5
    3085996 SHIM, VALVE (2.750) (OPT)
    SHIM, VALVE (2.750) (OPT)
  • 5
    3085997 SHIM, VALVE (2.700) (OPT)
    SHIM, VALVE (2.700) (OPT)
  • 5
    3085998 SHIM, VALVE (2.650) (OPT)
    SHIM, VALVE (2.650) (OPT)
  • 5
    3085999 SHIM, VALVE (2.600) (OPT)
    SHIM, VALVE (2.600) (OPT)
  • 5
    3086000 SHIM, VALVE (2.575) (OPT)
    SHIM, VALVE (2.575) (OPT)
  • 5
    3086001 SHIM, VALVE (2.550) (OPT)
    SHIM, VALVE (2.550) (OPT)
  • 5
    3086002 SHIM, VALVE (2.525) (OPT)
    SHIM, VALVE (2.525) (OPT)
  • 5
    3086003 SHIM, VALVE (2.500) (OPT)
    SHIM, VALVE (2.500) (OPT)
  • 5
    3086004 SHIM, VALVE (2.475) (OPT)
    SHIM, VALVE (2.475) (OPT)
  • 5
    3086005 SHIM, VALVE (2.450) (OPT)
    SHIM, VALVE (2.450) (OPT)
  • 5
    3086006 SHIM, VALVE (2.425) (OPT)
    SHIM, VALVE (2.425) (OPT)
  • 5
    3086007 SHIM, VALVE (2.400) (OPT)
    SHIM, VALVE (2.400) (OPT)
  • 5
    3086008 SHIM, VALVE (2.375) (OPT)
    SHIM, VALVE (2.375) (OPT)
  • 5
    3086009 SHIM, VALVE (2.350) (OPT)
    SHIM, VALVE (2.350) (OPT)
  • 5
    3086010 SHIM, VALVE (2.325) (OPT)
    SHIM, VALVE (2.325) (OPT)
  • 5
    3086011 SHIM, VALVE 2.300) (OPT)
    SHIM, VALVE 2.300) (OPT)
  • 5
    3086012 SHIM, VALVE (2.275) (OPT)
    SHIM, VALVE (2.275) (OPT)
  • 5
    3086013 SHIM, VALVE (2.250) (OPT)
    SHIM, VALVE (2.250) (OPT)
  • 5
    3086014 SHIM, VALVE (2.225) (OPT)
    SHIM, VALVE (2.225) (OPT)
  • 5
    3086015 SHIM, VALVE (2.200) (OPT)
    SHIM, VALVE (2.200) (OPT)
  • 5
    3086016 SHIM, VALVE (2.175) (OPT)
    SHIM, VALVE (2.175) (OPT)
  • 5
    3086017 SHIM, VALVE (2.150) (OPT)
    SHIM, VALVE (2.150) (OPT)
  • 5
    3086018 SHIM, VALVE (2.100) (OPT)
    SHIM, VALVE (2.100) (OPT)
  • 5
    3086019 SHIM, VALVE (2.050) (OPT)
    SHIM, VALVE (2.050) (OPT)
  • 5
    3086020 SHIM, VALVE (2.000) (OPT)
    SHIM, VALVE (2.000) (OPT)
  • 5
    3086021 SHIM, VALVE (1.950) (OPT)
    SHIM, VALVE (1.950) (OPT)
  • 5
    3086022 SHIM, VALVE (1.900) (OPT)
    SHIM, VALVE (1.900) (OPT)
  • 6
    3085988 CAMSHAFT (INCL. 7)
    CAMSHAFT (INCL. 7)
  • 6
    3086159 CAMSHAFT (INCL. 7)
    CAMSHAFT (INCL. 7)
  • 6
    3086160 CAMSHAFT (INCL. 7)
    CAMSHAFT (INCL. 7)
  • 7
    3086161 PIN, DOWEL
    PIN, DOWEL
  • 8
    3086028 CLIP
    CLIP
  • 9
    3086027 SPRING, RETURN DECOMP.
    SPRING, RETURN DECOMP.
  • 10
    3086054 O-RING
    O-RING
  • 11
    3086026 LEVER, DECOMP
    LEVER, DECOMP
  • 12
    3084916 GUIDE, CHAIN
    GUIDE, CHAIN
  • 13
    3084924 BOLT, PIVOT LEVER
    BOLT, PIVOT LEVER
  • 14
    3084917 LEVER
    LEVER
  • 15
    3086162 PLATE, THRUST
    PLATE, THRUST
  • 16
    3083361 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 17
    3086094 PLATE, GOVERNOR
    PLATE, GOVERNOR
  • 18
    3084914 SPROCKET 2
    SPROCKET 2
  • 19
    3086023 CHAIN, TIMMING
    CHAIN, TIMMING
  • 20
    3085990 VALVE, INTAKE
    VALVE, INTAKE
  • 21
    3085991 VALVE, EXHAUST
    VALVE, EXHAUST
  • 22
    3084922 GASKET, TENSIONER
    GASKET, TENSIONER
  • 23
    3086024 TENSIONER, ASSY. (INCL. 25-27)
    TENSIONER, ASSY. (INCL. 25-27)
  • 24
    3084874 BOLT, FLANGE
    BOLT, FLANGE
  • 25
    3086025 SPRING, TENSIONER
    SPRING, TENSIONER
  • 26
    3084920 GASKET, PLUG
    GASKET, PLUG
  • 27
    3084845 PLUG
    PLUG
