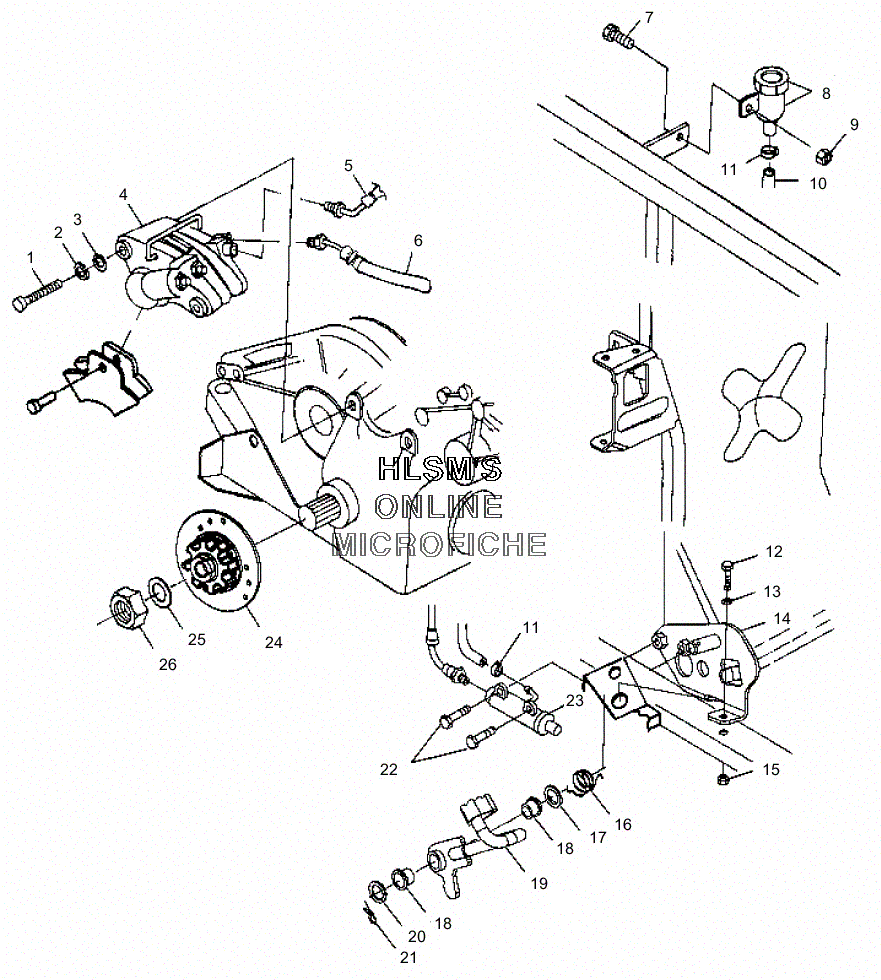

BRAKE - REAR W/ FOOT PEDAL для Polaris DIESEL (A00CH46CA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7515497 BOLT
    BOLT
  • 2
    7552603 WASHER
    WASHER
  • 3
    7555806 WASHER
    WASHER
  • 4
    1910441 CALIPER, BRAKE DHIP AFT
    CALIPER, BRAKE DHIP AFT
  • 4
    2201399 BRAKE PADS, AFT WOOD (REAR) (INCL. SPACER, PIN)
    BRAKE PADS, AFT WOOD (REAR) (INCL. SPACER, PIN)
  • 4
    2201180 SEAL, CALIPER WOOD KIT
    SEAL, CALIPER WOOD KIT
  • 4
    2201428 BLEEDER REPLACEMENT, KIT
    BLEEDER REPLACEMENT, KIT
  • 5
    1930853 LINE, BRAKE WOOD (REAR)
    LINE, BRAKE WOOD (REAR)
  • 6
    1910305 LINE, BRAKE CALIPER W/FITTINGS
    LINE, BRAKE CALIPER W/FITTINGS
  • 7
    7512111 BOLT
    BOLT
  • 8
    1930854 RESERVOIR ASSY., BRAKE (REAR)
    RESERVOIR ASSY., BRAKE (REAR)
  • 9
    7542153 NUT
    NUT
  • 10
    1910326 HOSE, RESERVOIR (1/4 ID) (17IN.)
    HOSE, RESERVOIR (1/4 ID) (17IN.)
  • 11
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    7512240 BOLT
    BOLT
  • 13
    7558301 WASHER
    WASHER
  • 14
    1012840-067 BRAKE MOUNT, DIESEL (BLACK)
    BRAKE MOUNT, DIESEL (BLACK)
  • 15
    7542122 NUT, LOCK
    NUT, LOCK
  • 16
    7041750 SPRING, TORSION BRAKE
    SPRING, TORSION BRAKE
  • 17
    7555919 WASHER
    WASHER
  • 18
    5433189 BUSHING, PEDAL PIVOT
    BUSHING, PEDAL PIVOT
  • 19
    1013147-067 MOUNT, BRAKE DIESEL (BLACK)
    MOUNT, BRAKE DIESEL (BLACK)
  • 20
    7556090 WASHER, SPRING
    WASHER, SPRING
  • 21
    7661401 COTTER PIN
    COTTER PIN
  • 22
    7515158 SCREW
    SCREW
  • 23
    1910301 CYLINDER, MASTER BRAKE (REAR)
    CYLINDER, MASTER BRAKE (REAR)
  • 24
    1910439 DISC, BRAKE 1050
    DISC, BRAKE 1050
  • 25
    7571620 WASHER, SLOTTED
    WASHER, SLOTTED
  • 26
    7547046 NUT, NYLOC
    NUT, NYLOC
