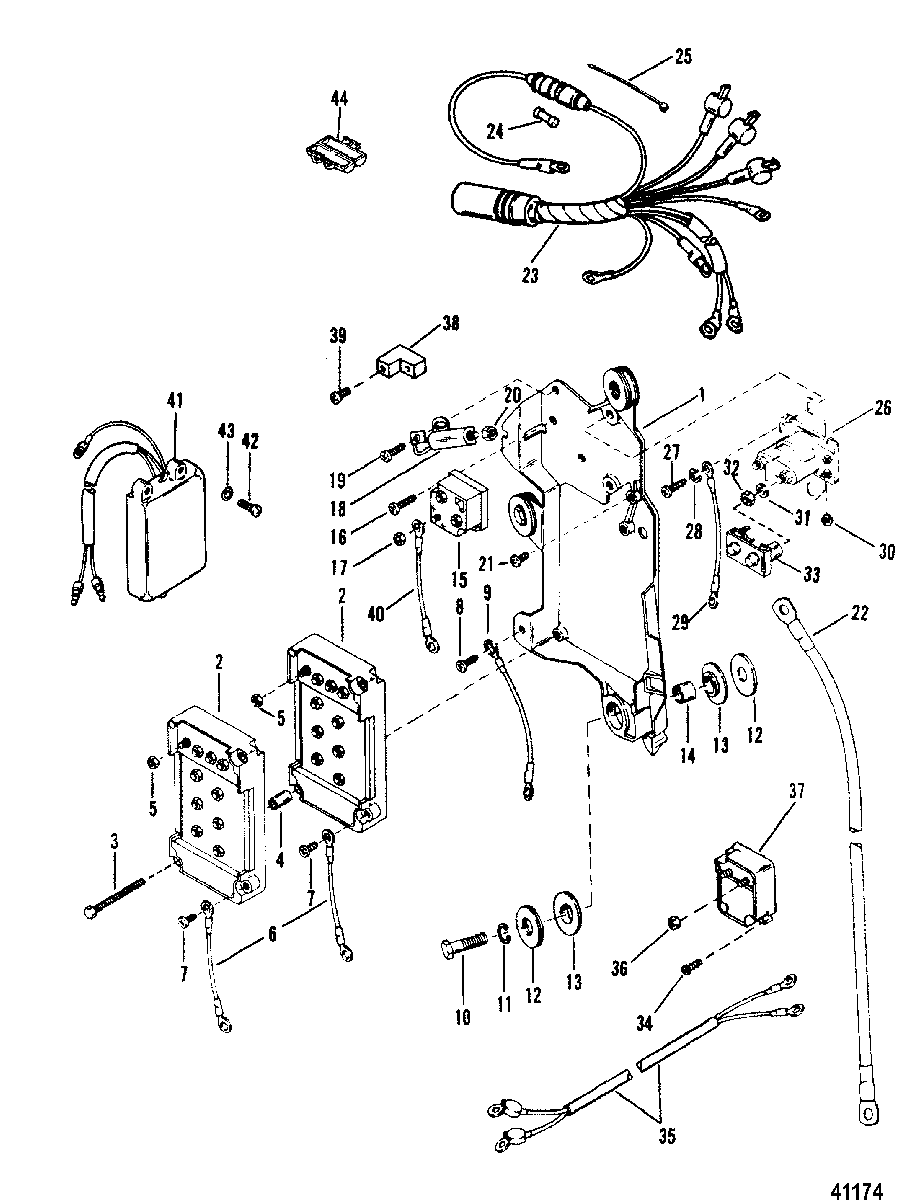

WIRING HARNESS, STARTER SOLENOID AND RECTIFIER для Mercury - V-220 0B117316 & Up

  • №
    Артикул
    Название
  • 1
    434292 PLATE, IGNITION
    PLATE, IGNITION
  • 2
    332-7778A12 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 3
    10-13669 SCREW, (#12-24 x 2.00)
    SCREW, (#12-24 x 2.00)
  • 4
    23-94453 BUSHING, SWITCH BOX SCREW
    BUSHING, SWITCH BOX SCREW
  • 5
    11-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINAL
    NUT, (#10-32) Brass, SWITCH BOX TERMINAL
  • 6
    84-60871A10 WIRE ASSEMBLY, SWITCH BOX
    WIRE ASSEMBLY, SWITCH BOX
  • 7
    10-62568 SCREW, (#10-16 x .375), WIRE ATTACHING
    SCREW, (#10-16 x .375), WIRE ATTACHING
  • 8
    10-87926 SCREW, (#10-32 x .500)
    SCREW, (#10-32 x .500)
  • 9
    84-65999A3 CABLE ASSEMBLY, Black
    CABLE ASSEMBLY, Black
  • 10
    10-60411 SCREW, (1.25), IGNITION PLATE
    SCREW, (1.25), IGNITION PLATE
  • 11
    13-26993 LOCKWASHER, (.312), IGNITION PLATE SCREW
    LOCKWASHER, (.312), IGNITION PLATE SCREW
  • 12
    12-36042 WASHER, IGNITION PLATE SCREW
    WASHER, IGNITION PLATE SCREW
  • 13
    12-67264 WASHER, (Rubber)
    WASHER, (Rubber)
  • 14
    23-67268 BUSHING, IGNITION PLATE SCREW
    BUSHING, IGNITION PLATE SCREW
  • 15
    8M0058226 RECTIFIER
    RECTIFIER
  • 16
    10-38055 SCREW, (.190-32 x .620)
    SCREW, (.190-32 x .620)
  • 17
    11-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALS
    NUT, (#10-32) Brass, RECTIFIER TERMINALS
  • 18
    87-33386A3 SWITCH ASSEMLBY
    SWITCH ASSEMLBY
  • 19
    10-38055 SCREW, (.190-32 x .620)
    SCREW, (.190-32 x .620)
  • 20
    11-45076 NUT, (#10-32) Brass, MERCURY SWITCH TERMINAL
    NUT, (#10-32) Brass, MERCURY SWITCH TERMINAL
  • 21
    10-42813 SCREW, (#10-32 X .380), LEAD ATTACHING
    SCREW, (#10-32 X .380), LEAD ATTACHING
  • 22
    84-88439A14 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 22
    84-88439A2 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 23
    84-96220A6 HARNESS ASSEMBLY, ENGINE
    HARNESS ASSEMBLY, ENGINE
  • 24
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 25
    54-816311T CLAMP, HARNESS AND CABLES
    CLAMP, HARNESS AND CABLES
  • 26
    89-853654A1 SOLENOID, Starter
    SOLENOID, Starter
  • 27
    10-31716 SCREW, (.250-20 x .620)
    SCREW, (.250-20 x .620)
  • 28
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 29
    84-65999A2 CABLE ASSEMBLY, Black, UPPER MOUNT
    CABLE ASSEMBLY, Black, UPPER MOUNT
  • 30
    11-45076 NUT, (#10-32) Brass, SOLENOID TERMINALS
    NUT, (#10-32) Brass, SOLENOID TERMINALS
  • 31
    13-53166 LOCKWASHER, (.312), SOLENOID TERMINALS
    LOCKWASHER, (.312), SOLENOID TERMINALS
  • 32
    11-68292 NUT, (.312-18), SOLENOID TERMINALS
    NUT, (.312-18), SOLENOID TERMINALS
  • 33
    85-97861 INSULATOR, SOLENOID
    INSULATOR, SOLENOID
  • 34
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, VOLTAGE REGULATOR
    SCREW, (#10-16 x .625) Stainless Steel, VOLTAGE REGULATOR
  • 35
    84-13397A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 36
    11-45076 NUT, (#10-32) Brass, VOLTAGE REGULATOR
    NUT, (#10-32) Brass, VOLTAGE REGULATOR
  • 37
    88825A7 VOLTAGE REGUALTOR
    VOLTAGE REGUALTOR
  • 38
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 39
    10-48408 SCREW, (#10-16 x .500), TERMINAL BLOCK
    SCREW, (#10-16 x .500), TERMINAL BLOCK
  • 40
    84-88808A20 CABLE ASSEMBLY (RED)
    CABLE ASSEMBLY (RED)
  • 41
    87076A10 IDLE SPEED CONTROL ASSEMBLY
    IDLE SPEED CONTROL ASSEMBLY
  • 42
    10-690201 SCREW, (#10-32 x .875), IDLE SPEED CONTROL
    SCREW, (#10-32 x .875), IDLE SPEED CONTROL
  • 43
    12-38833 WASHER, IDLE SPEED CONTROL
    WASHER, IDLE SPEED CONTROL
  • 44
    134731 HOLDER, Fuse
    HOLDER, Fuse
