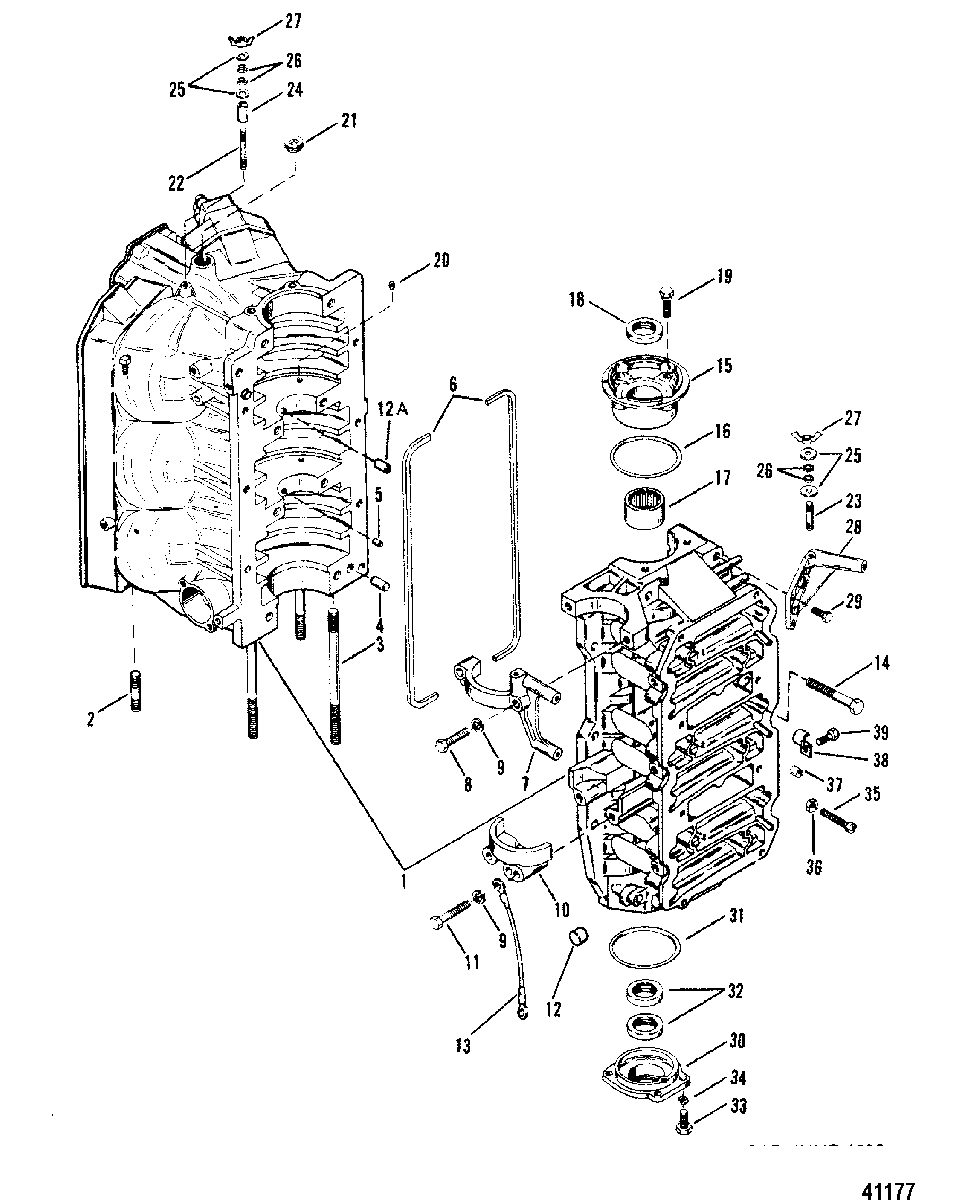

CYLINDER BLOCK AND END CAPS для Mercury - V-220 0B117316 & Up

№

Артикул

Название
1

858-8712T41 CYLINDER BLOCK
(2 SCREW POPPET)

CYLINDER BLOCK
(2 SCREW POPPET)

0 ₽
1

858-8712T41 CYLINDER BLOCK
(4 SCREW POPPET)

CYLINDER BLOCK
(4 SCREW POPPET)

0 ₽
2

16-76175 STUD, POWERHEAD (1-7/8")

STUD, POWERHEAD (1-7/8")

860 ₽
3

16-670654 STUD, POWERHEAD (5-1/2")

STUD, POWERHEAD (5-1/2")

870 ₽
3

16-8M0034454 STUD, POWERHEAD (6-3/4")

STUD, POWERHEAD (6-3/4")

1 130 ₽
4

17-43044 PIN, Dowel, LOCATING

PIN, Dowel, LOCATING

200 ₽
5

17-8M0036405 PIN, CYLINDER BLOCK (BEARING RACE)

PIN, CYLINDER BLOCK (BEARING RACE)

270 ₽
6

27-11338 GASKET, SEALING

GASKET, SEALING

150 ₽
7

8M0088723 COVER, STARTER MOTOR (UPPER)

COVER, STARTER MOTOR (UPPER)

14 890 ₽
8

10-73657 SCREW, (.312-18 x 1.50), COVER TO CRANKCASE

SCREW, (.312-18 x 1.50), COVER TO CRANKCASE

230 ₽
9

13-26993 LOCKWASHER, (.312), STARTER MOTOR COVER SCREW

LOCKWASHER, (.312), STARTER MOTOR COVER SCREW

140 ₽
10

76867 COVER, STARTER MOTOR (LOWER)

COVER, STARTER MOTOR (LOWER)

2 450 ₽
11

10-815549 SCREW, (.312-18 x 2), COVER TO CRANKCASE

SCREW, (.312-18 x 2), COVER TO CRANKCASE

340 ₽
12

19-88801 PLUG, CUPPED

PLUG, CUPPED

0 ₽
12A

23-99448 BUSHING

BUSHING

320 ₽
13

84-88807A20 CABLE ASSEMBLY, COVER

CABLE ASSEMBLY, COVER

1 490 ₽
14

10-66717 SCREW, (.375-16 x 3.250)

SCREW, (.375-16 x 3.250)

380 ₽
14

10-74824 SCREW, (.312-18 x 1.250)

SCREW, (.312-18 x 1.250)

140 ₽
15

1159-8454T2 END CAP ASSEMBLY, UPPER

END CAP ASSEMBLY, UPPER

26 270 ₽
16

25-54029 O-RING, (2.800 x .103), END CAP

O-RING, (2.800 x .103), END CAP

480 ₽
17

31-93496T BEARING, Roller, END CAP

BEARING, Roller, END CAP

27 160 ₽
18

26-41953 SEAL, END CAP

SEAL, END CAP

1 140 ₽
19

10-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)

SCREW AND LOCKWASHER, (.312-18 x 1.00)

70 ₽
20

10-24220 SCREW, (.190-24 x .190)

SCREW, (.190-24 x .190)

0 ₽
21

22-38407 PLUG, (.500-14), CYLINDER BLOCK (WATER JACKET)

PLUG, (.500-14), CYLINDER BLOCK (WATER JACKET)

600 ₽
22

16-15094 STUD, (.190-32 x 1.870)

STUD, (.190-32 x 1.870)

630 ₽
23

16-8M0034435 STUD, (#10-32 x 1.00)

STUD, (#10-32 x 1.00)

800 ₽
24

23-67269 SPACER, FLYWHEEL COVER STUD

SPACER, FLYWHEEL COVER STUD

380 ₽
25

12-49221 WASHER, FLYWHEEL COVER STUD

WASHER, FLYWHEEL COVER STUD

90 ₽
26

12-72761 WASHER, (.203 x .562 x .060) Stainless Steel, FLYWHEEL COVER STUD

WASHER, (.203 x .562 x .060) Stainless Steel, FLYWHEEL COVER STUD

140 ₽
27

11-816874 NUT, FLYWHEEL COVER STUD

NUT, FLYWHEEL COVER STUD

170 ₽
28

422482 BRACKET, FLYWHEEL COVER

BRACKET, FLYWHEEL COVER

4 640 ₽
29

10-49668 SCREW, (.250-20 x .750), BRACKET TO CRANKCASE

SCREW, (.250-20 x .750), BRACKET TO CRANKCASE

100 ₽
30

1156-7809T1 END CAP ASSEMBLY, LOWER

END CAP ASSEMBLY, LOWER

25 510 ₽
31

25-62700 O-RING, (3.237 x .103), END CAP

O-RING, (3.237 x .103), END CAP

400 ₽
32

26-41953 SEAL, END CAP

SEAL, END CAP

1 140 ₽
33

10-28636 SCREW, (.250-20 x .750)

SCREW, (.250-20 x .750)

90 ₽
34

13-26992 LOCKWASHER, (.250) Stainless Steel, LOWER END CAP SCREW

LOCKWASHER, (.250) Stainless Steel, LOWER END CAP SCREW

70 ₽
35

10-64022 SCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCK

SCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCK

270 ₽
36

11-64015 NUT, (.250-20), JAM - ADJUSTING SCREW

NUT, (.250-20), JAM - ADJUSTING SCREW

150 ₽
37

26852 CAP, Nylon, ADJUSTING SCREW

CAP, Nylon, ADJUSTING SCREW

320 ₽
38

54-16793 CLAMP

CLAMP

120 ₽
39

10-73286 SCREW, (.250-20 x .500) Stainless Steel

SCREW, (.250-20 x .500) Stainless Steel

150 ₽
-

15379T88 POWERHEAD ASSMEBLY

POWERHEAD ASSMEBLY

0 ₽
-

27-14697A87 GASKET SET

GASKET SET

16 310 ₽
