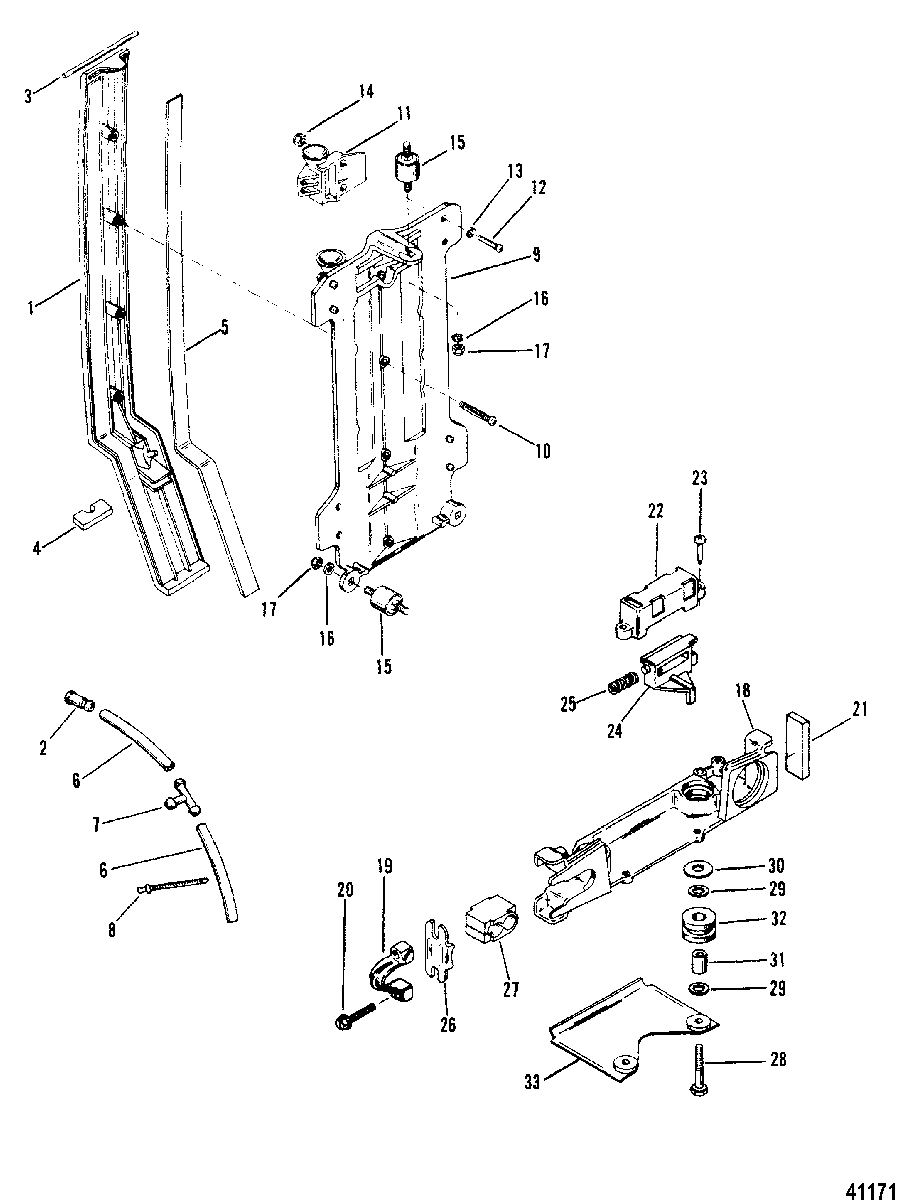

COWL MOUNTING BRACKET для Mercury - V-220 0B117316 & Up

  • №
    Артикул
    Название
  • 1
    76258A2 BRACKET, REAR COWL
    (BLACK)
    BRACKET, REAR COWL
    (BLACK)
  • 1
    76258A3 BRACKET, REAR COWL
    (GRAY)
    BRACKET, REAR COWL
    (GRAY)
  • 2
    22-76256 NOZZLE, TELL TALE
    NOZZLE, TELL TALE
  • 3
    67984 SEAL, REAR COWL BRACKET TO COWL
    SEAL, REAR COWL BRACKET TO COWL
  • 4
    67228 SEAL, REAR COWL BRACKET TO COWL
    SEAL, REAR COWL BRACKET TO COWL
  • 5
    67999 SEAL, REAR COWL BRACKET TO COWL
    SEAL, REAR COWL BRACKET TO COWL
  • 6
    32-8M0108355 LINE, (57.00 Inches Bulk), TELL TALE (4")
    LINE, (57.00 Inches Bulk), TELL TALE (4")
  • 7
    22-90824001 TEE, TELL TALE HOSE
    TEE, TELL TALE HOSE
  • 8
    54-816311T CLAMP, TELL TALE HOSE
    CLAMP, TELL TALE HOSE
  • 9
    86386A1 BRACKET ASSEMBLY, COWL SUPPORT
    BRACKET ASSEMBLY, COWL SUPPORT
  • 10
    10-66687 SCREW, (#10-32 x 1.50), REAR COWL BRACKET
    SCREW, (#10-32 x 1.50), REAR COWL BRACKET
  • 11
    85651 HOUSING, COWL HINGE
    (PORT)
    HOUSING, COWL HINGE
    (PORT)
  • 11
    85650 HOUSING, COWL HINGE
    (STARBOARD)
    HOUSING, COWL HINGE
    (STARBOARD)
  • 12
    10-64278 SCREW, (.250-28 x 1.00), COWL HINGE HOUSING
    SCREW, (.250-28 x 1.00), COWL HINGE HOUSING
  • 13
    12-20583 WASHER, COWL HINGE HOUSING SCREW
    WASHER, COWL HINGE HOUSING SCREW
  • 14
    11-35888 NUT, (.250-28) Stainless Steel, COWL HINGE HOUSING SCREW
    NUT, (.250-28) Stainless Steel, COWL HINGE HOUSING SCREW
  • 15
    90435 MOUNT, COWL MOUNTING BRACKET
    MOUNT, COWL MOUNTING BRACKET
  • 16
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, COWL MOUNTING BRACKET MOUNT
    WASHER, (.281 x .500 x .060) Stainless Steel, COWL MOUNTING BRACKET MOUNT
  • 17
    11-35888 NUT, (.250-28) Stainless Steel, COWL MOUNTING BRACKET MOUNT
    NUT, (.250-28) Stainless Steel, COWL MOUNTING BRACKET MOUNT
  • 18
    99424 BRACKET, COWLING MOUNTING (LOWER)
    BRACKET, COWLING MOUNTING (LOWER)
  • 19
    99447 RETAINER, CABLE
    RETAINER, CABLE
  • 20
    10-68918 SCREW, (.190-24 x 1.00), CABLE RETAINER
    SCREW, (.190-24 x 1.00), CABLE RETAINER
  • 21
    67260 SEAL, CONTROL CABLES
    SEAL, CONTROL CABLES
  • 22
    67241 HOUSING, COWL LATCH
    HOUSING, COWL LATCH
  • 23
    10-92051 SCREW, (10-16 x .75), COWL LATCH HOUSING
    SCREW, (10-16 x .75), COWL LATCH HOUSING
  • 24
    87608 LATCH, Cowl
    LATCH, Cowl
  • 25
    24-60295 SPRING, COWL LATCH
    SPRING, COWL LATCH
  • 26
    88622 PLATE, CABLE RETAINER
    PLATE, CABLE RETAINER
  • 27
    99391 RETAINER, OIL LINES
    RETAINER, OIL LINES
  • 28
    10-69093 SCREW, (.250-20 x 1.50), LOWER BRACKET
    SCREW, (.250-20 x 1.50), LOWER BRACKET
  • 29
    12-69057 WASHER, LOWER BRACKET SCREW (SMALL)
    WASHER, LOWER BRACKET SCREW (SMALL)
  • 30
    12-35280 WASHER, LOWER BRACKET SCREW (LARGE)
    WASHER, LOWER BRACKET SCREW (LARGE)
  • 31
    23-88180 BUSHING, LOWER BRACKET GROMMET
    BUSHING, LOWER BRACKET GROMMET
  • 32
    25-88033 GROMMET, LOWER BRACKET
    GROMMET, LOWER BRACKET
  • 33
    13719T PLATE, RETAINING
    PLATE, RETAINING
