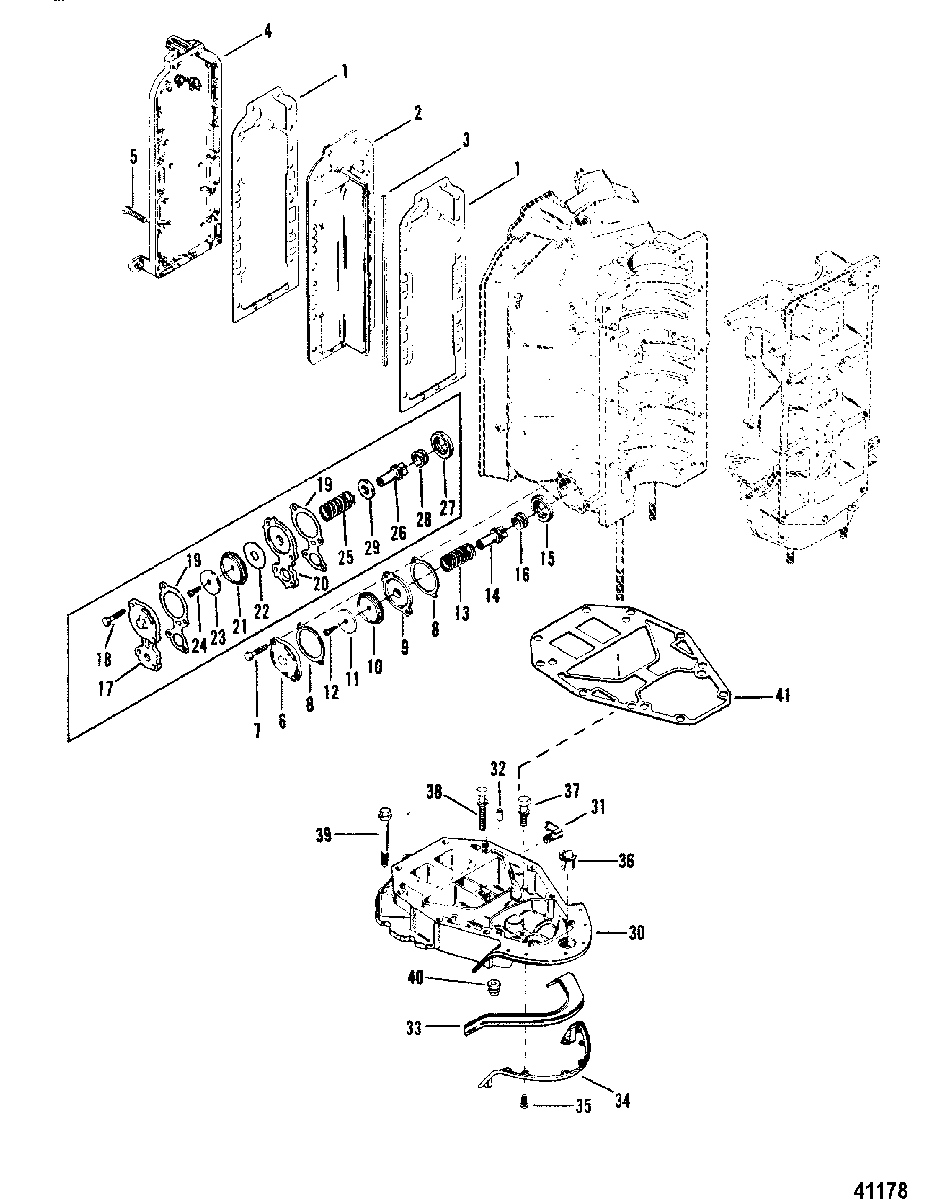

EXHAUST MANIFOLD AND EXHAUST PLATE для Mercury - V-220 0B117316 & Up

  • №
    Артикул
    Название
  • 1
    27-904841 GASKET, DIVIDER PLATE
    GASKET, DIVIDER PLATE
  • 2
    99169A1 DIVIDER PLATE
    DIVIDER PLATE
  • 3
    26-814754 SEAL, DIVIDER PLATE
    SEAL, DIVIDER PLATE
  • 4
    95067 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 5
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 6
    65663A2 COVER, RELIEF VALVE
    OLD DESIGN
    COVER, RELIEF VALVE
    OLD DESIGN
  • 7
    10-38837 SCREW, (.312-18 x 1.12)
    OLD DESIGN
    SCREW, (.312-18 x 1.12)
    OLD DESIGN
  • 8
    27-88907003 GASKET, RELIEF VALVE PLATE
    OLD DESIGN
    GASKET, RELIEF VALVE PLATE
    OLD DESIGN
  • 9
    65664A1 PLATE ASSEMBLY, RELIEF VALVE
    OLD DESIGN
    PLATE ASSEMBLY, RELIEF VALVE
    OLD DESIGN
  • 10
    648771 DIAPHRAGM
    OLD DESIGN
    DIAPHRAGM
    OLD DESIGN
  • 11
    12-76451 WASHER, DIAPHRAGM SCREW
    OLD DESIGN
    WASHER, DIAPHRAGM SCREW
    OLD DESIGN
  • 12
    10-69570 SCREW, (#10-16 x .750)
    OLD DESIGN
    SCREW, (#10-16 x .750)
    OLD DESIGN
  • 13
    24-64878 SPRING, (Black), COMPRESSION POPPET VALVE
    OLD DESIGN
    SPRING, (Black), COMPRESSION POPPET VALVE
    OLD DESIGN
  • 14
    86596 POPPET VALVE, VALVE
    OLD DESIGN
    POPPET VALVE, VALVE
    OLD DESIGN
  • 15
    65848 CARRIER, POPPET VALVE
    OLD DESIGN
    CARRIER, POPPET VALVE
    OLD DESIGN
  • 16
    25-64872 GROMMET, POPPET VALVE
    OLD DESIGN
    GROMMET, POPPET VALVE
    OLD DESIGN
  • 17
    14462A1 COVER, RELIEF VALVE
    NEW DESIGN
    COVER, RELIEF VALVE
    NEW DESIGN
  • 18
    10-74824 SCREW, (.312-18 x 1.250)
    NEW DESIGN
    SCREW, (.312-18 x 1.250)
    NEW DESIGN
  • 19
    27-78690002 GASKET, RELIEF VALVE PLATE
    NEW DESIGN
    GASKET, RELIEF VALVE PLATE
    NEW DESIGN
  • 20
    16497A1 PLATE, RELIEF VALVE
    NEW DESIGN
    PLATE, RELIEF VALVE
    NEW DESIGN
  • 21
    144791 DIAPHRAGM
    NEW DESIGN
    DIAPHRAGM
    NEW DESIGN
  • 22
    16496 DEFLECTOR, Water
    NEW DESIGN
    DEFLECTOR, Water
    NEW DESIGN
  • 23
    12-76451 WASHER, DIAPHRAGM SCREW
    NEW DESIGN
    WASHER, DIAPHRAGM SCREW
    NEW DESIGN
  • 24
    10-69570 SCREW, (#10-16 x .750)
    NEW DESIGN
    SCREW, (#10-16 x .750)
    NEW DESIGN
  • 25
    24-64878 SPRING, (Black), COMPRESSION POPPET VALVE
    NEW DESIGN
    SPRING, (Black), COMPRESSION POPPET VALVE
    NEW DESIGN
  • 26
    14480 POPPET, VALVE
    NEW DESIGN
    POPPET, VALVE
    NEW DESIGN
  • 27
    65848 CARRIER, POPPET VALVE
    NEW DESIGN
    CARRIER, POPPET VALVE
    NEW DESIGN
  • 28
    25-64872 GROMMET, POPPET VALVE
    NEW DESIGN
    GROMMET, POPPET VALVE
    NEW DESIGN
  • 29
    12-85303 WASHER, POPPET SPRING
    NEW DESIGN
    WASHER, POPPET SPRING
    NEW DESIGN
  • 30
    41944A5 PLATE ASSEMBLY, EXHAUST
    PLATE ASSEMBLY, EXHAUST
  • 31
    22-996642 ELBOW, EXHAUST PLATE
    ELBOW, EXHAUST PLATE
  • 32
    17-43044 PIN, Dowel, LOCATING - EXHAUST PLATE
    PIN, Dowel, LOCATING - EXHAUST PLATE
  • 33
    707482 SEAL, EXHUAST PLATE
    SEAL, EXHUAST PLATE
  • 34
    680101 BRACKET, SEAL RETAINING
    BRACKET, SEAL RETAINING
  • 35
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 36
    23-27132 BUSHING, EXHUAST PLATE
    BUSHING, EXHUAST PLATE
  • 37
    10-66727 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 38
    10-68783 SCREW, (.312-18 x 2.50)
    SCREW, (.312-18 x 2.50)
  • 39
    10-898833 SCREW, (.375-16 x 3.50)
    SCREW, (.375-16 x 3.50)
  • 40
    25-12602002 GROMMET, EXHAUST PLATE
    GROMMET, EXHAUST PLATE
  • 41
    27-991764 GASKET, EXHAUST PLATE
    GASKET, EXHAUST PLATE
  • -
    27-14697A87 GASKET SET
    GASKET SET
