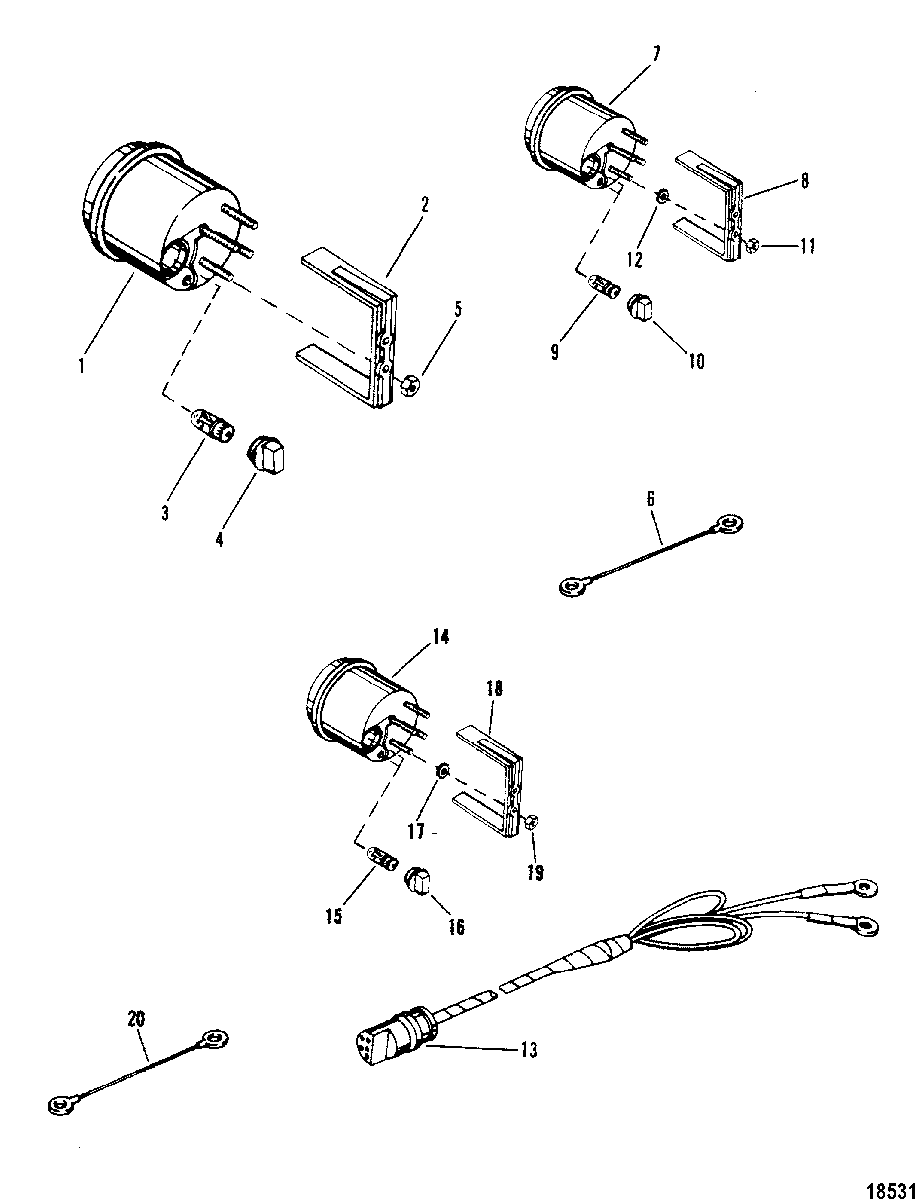

TACHOMETER, TRIM GAUGE, TEMPERATURE GAUGE для Mercury - V-220 0B117316 & Up
-
№АртикулНазвание
-
179-895283Q45 TACHOMETERTACHOMETER
-
279101T BRACKET, MOUNTINGBRACKET, MOUNTING
-
388-72729 LIGHT BULB, Wedge Base (14V - .19W)LIGHT BULB, Wedge Base (14V - .19W)
-
488-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
511-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
684-86322A7 CABLE ASSEMBLY, (1.50 Feet) Black, TRIM GAUGECABLE ASSEMBLY, (1.50 Feet) Black, TRIM GAUGE
-
684-86323A5 CABLE ASSEMBLY, (1.50 Feet) Purple, TRIM GAUGECABLE ASSEMBLY, (1.50 Feet) Purple, TRIM GAUGE
-
779-895292Q41 TRIM GAUGETRIM GAUGE
-
879480 BRACKET, MOUNTING - TRIM GAUGEBRACKET, MOUNTING - TRIM GAUGE
-
988-72729 LIGHT BULB, Wedge Base (14V - .19W), TRIM GAUGELIGHT BULB, Wedge Base (14V - .19W), TRIM GAUGE
-
1088-79888 SOCKET, Light Bulb, TRIM GAUGESOCKET, Light Bulb, TRIM GAUGE
-
1111-26419 NUT, (#8-32) Brass, TRIM GAGUE TERMINALNUT, (#8-32) Brass, TRIM GAGUE TERMINAL
-
1213-26995 LOCKWASHER, (#8) Stainless Steel, TRIM GAUGE TERMINALLOCKWASHER, (#8) Stainless Steel, TRIM GAUGE TERMINAL
-
1384-86396A8 HARNESS ASSEMBLY, Tachometer (5.00 Feet)HARNESS ASSEMBLY, Tachometer (5.00 Feet)
-
1479-895287Q41 TEMPERATURE GAUGETEMPERATURE GAUGE
-
1588-72729 LIGHT BULB, Wedge Base (14V - .19W)LIGHT BULB, Wedge Base (14V - .19W)
-
1688-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
1712-26427 WASHERWASHER
-
1879480 BRACKETBRACKET
-
1911-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
2084-86323A2 CABLE ASSEMBLY, (2.00 Feet) PurpleCABLE ASSEMBLY, (2.00 Feet) Purple
-
2084-61600A16 CABLE ASSEMBLY, (17.00 Inches) BlackCABLE ASSEMBLY, (17.00 Inches) Black
-
2084-88032A3 CABLE ASSEMBLY, (23.00 Feet) Tan/BlueCABLE ASSEMBLY, (23.00 Feet) Tan/Blue
-
2084-88824A4 CABLE ASSEMBLY, (45.00 Inches) TanCABLE ASSEMBLY, (45.00 Inches) Tan
