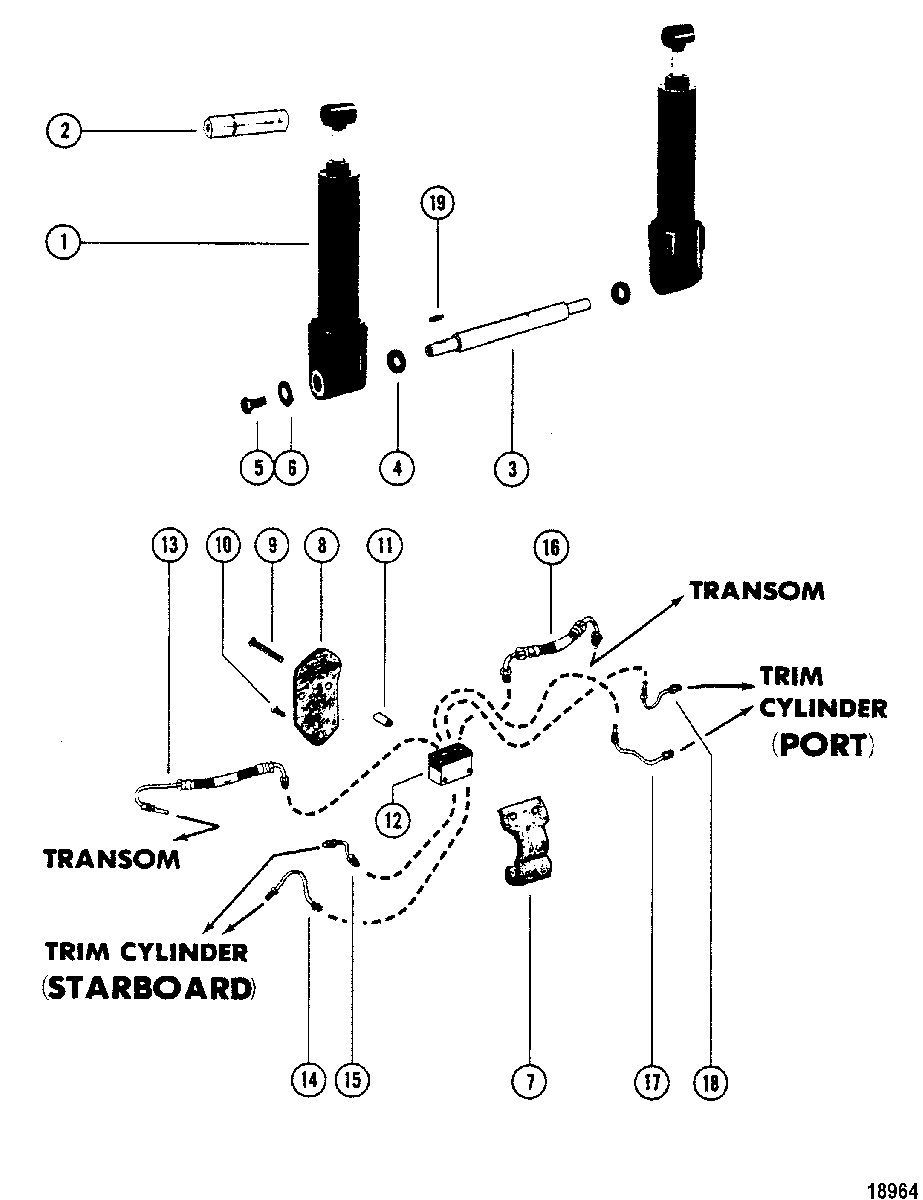

Trim Cylinder(S/N-Merc-5488751/Mariner-5555929 & Below) для Mercury - V-175 8058870 & Up
-
№АртикулНазвание
-
179114A4 TRIM CYLINDER ASSEMBLYTRIM CYLINDER ASSEMBLY
-
267694 PINPIN
-
367701 SHAFTSHAFT
-
412-67745 WASHERWASHER
-
510-67756 SCREWSCREW
-
612-48926 WASHERWASHER
-
767698T SPACERSPACER
-
867700 COVERCOVER
-
910-35049 SCREW, (.250-20 x 2.75)SCREW, (.250-20 x 2.75)
-
1010-20665 SCREW, (.190-24 x .50)SCREW, (.190-24 x .50)
-
1123-67671 SPACERSPACER
-
1267696 MANIFOLDMANIFOLD
-
1332-67683 HYDRAULIC TUBE
(STARBOARD)HYDRAULIC TUBE
(STARBOARD) -
1432-67681 HYDRAULIC TUBE
(STARBOARAD - DOWN)HYDRAULIC TUBE
(STARBOARAD - DOWN) -
1532-67678 HYDRAULIC TUBE
(STARBOARD - UP)HYDRAULIC TUBE
(STARBOARD - UP) -
1632-67682 HYDRAULIC TUBE
(PORT)HYDRAULIC TUBE
(PORT) -
1732-67680 HYDRAULIC TUBE
(PORT - UP)HYDRAULIC TUBE
(PORT - UP) -
1832-67679 HYDRAULIC TUBE
(PORT - DOWN)HYDRAULIC TUBE
(PORT - DOWN) -
1928-20094 KEY, WoodruffKEY, Woodruff
