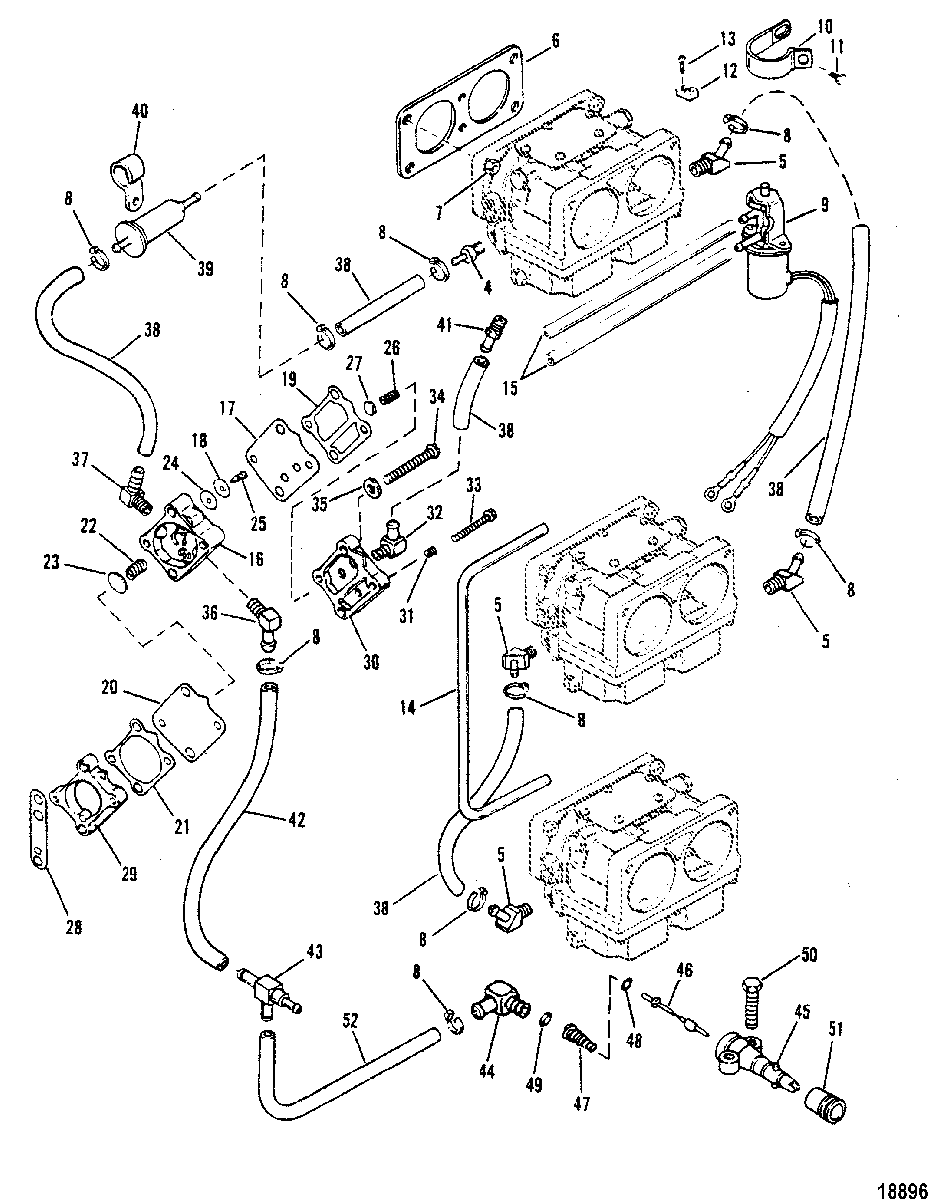

Fuel Pump(Design III Square Fuel Pump) для Mercury - V-175 8058870 & Up
-
№АртикулНазвание
-
41395-6232 FITTING, FUEL INLET - UPPER AND LOWERFITTING, FUEL INLET - UPPER AND LOWER
-
522-70007 FITTING, FUEL INLET - MIDDLEFITTING, FUEL INLET - MIDDLE
-
627-904301 GASKETGASKET
-
711-20184 NUT, CARBURETOR MOUNTINGNUT, CARBURETOR MOUNTING
-
854-816311T CABLE TIE, (8.00 Inches)CABLE TIE, (8.00 Inches)
-
942859A2 ENRICHNER VALVEENRICHNER VALVE
-
1054-633001 CLAMPCLAMP
-
1110-73286 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
1286-45915 TERMINAL BLOCKTERMINAL BLOCK
-
1310-35519 SCREW, (#10-16 X .50)SCREW, (#10-16 X .50)
-
1432-892024122 TUBING, (20.00 Feet Bulk)TUBING, (20.00 Feet Bulk)
-
1532-9912688 TUBING, (36.00 Inches Bulk), CARBURETOR TO CARBURETORTUBING, (36.00 Inches Bulk), CARBURETOR TO CARBURETOR
-
1615930A15 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
1721-857005A1 DIAPHAGM KITDIAPHAGM KIT
-
18NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
19NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
20NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
21NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
22NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
23NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
24NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
25NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
26NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
27NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
2827-987691 GASKET, BASEGASKET, BASE
-
29144303 BASEBASE
-
30987752 PLATEPLATE
-
3122-56800 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
3222-19688 FITTINGFITTING
-
3310-16452 SCREW, (#12-24 x 2.00)SCREW, (#12-24 x 2.00)
-
3410-4000310 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
3512-4002314 WASHERWASHER
-
3622-14868 FITTINGFITTING
-
3722-19688 FITTINGFITTING
-
3832-8M0108355 FUEL LINE, (57.00 Inches Bulk)FUEL LINE, (57.00 Inches Bulk)
-
3935-816296Q03 FUEL FILTERFUEL FILTER
-
4054-15279 CLAMPCLAMP
-
4122-64705 FITTINGFITTING
-
4232-8M0108349 TUBINGTUBING
-
4322-424253 TEETEE
-
4422-36221 ELBOW
(BLACK & GRAY)ELBOW
(BLACK & GRAY) -
4530186 ADAPTOR
(BLACK & GRAY)ADAPTOR
(BLACK & GRAY) -
4630185Q3 STEM
(BLACK & GRAY)STEM
(BLACK & GRAY) -
4724-30189 SPRING
(BLACK & GRAY)SPRING
(BLACK & GRAY) -
4825-16524 O-RING
(BLACK & GRAY)O-RING
(BLACK & GRAY) -
4930188 WASHER
(BLACK & GRAY)WASHER
(BLACK & GRAY) -
5010-69067 SCREW, (.25-20 X 1.375)
(BLACK & GRAY)SCREW, (.25-20 X 1.375)
(BLACK & GRAY) -
5192037 SEAL
(BLACK & GRAY)SEAL
(BLACK & GRAY) -
5232-8M0108349 TUBING
(BLACK & GRAY)TUBING
(BLACK & GRAY) -
-27-11338A88 GASKET SET, Engine Overhaul
SN# 6618751 & UpGASKET SET, Engine Overhaul
SN# 6618751 & Up
