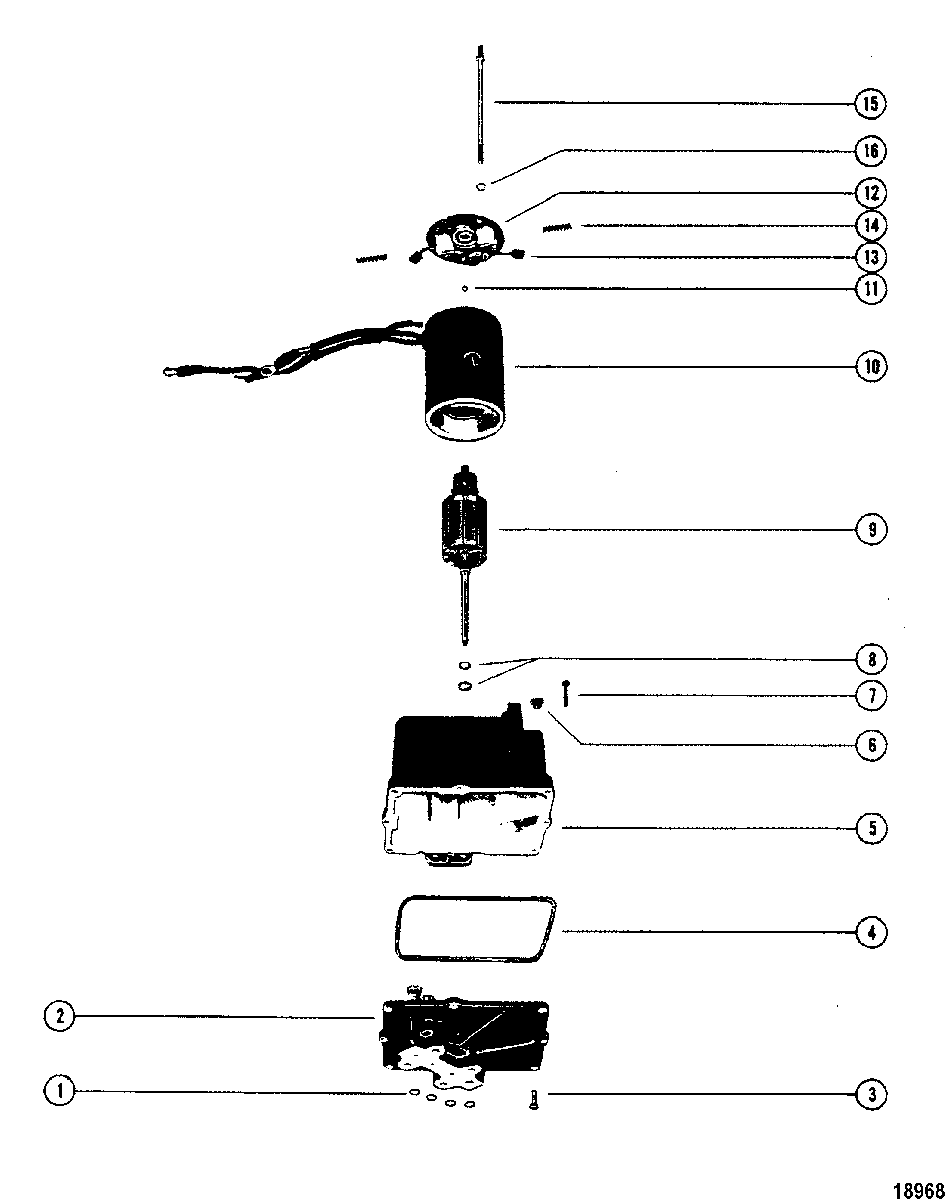

Hydraulic Pump(S/N-Merc-5393736/Mariner-5316380 & Below) для Mercury - V-175 8058870 & Up
-
№АртикулНазвание
-
-92975A32 HYDRAULIC PUMPHYDRAULIC PUMP
-
125-48171 O-RING, (.364. x .070)O-RING, (.364. x .070)
-
2NLA No Longer Available, Valve Body & Gear AssemblyNo Longer Available, Valve Body & Gear Assembly
-
310-20411 SCREW, (.190-24 x .62)SCREW, (.190-24 x .62)
-
4392-7735 SEALSEAL
-
5392-6251 RESERVOIRRESERVOIR
-
610-62269 SCREW, (#10-32 x .437)SCREW, (#10-32 x .437)
-
7NLA No Longer Available, Filler ScrewNo Longer Available, Filler Screw
-
8392-2623 WASHERWASHER
-
9392-2943 ARMATUREARMATURE
-
10NLA No Longer Available, Field & FrameNo Longer Available, Field & Frame
-
11392-2944 BALLBALL
-
12392-2940 PLATE ASSEMBLYPLATE ASSEMBLY
-
13392-8989 BRUSH KITBRUSH KIT
-
14392-2529 SPRING SETSPRING SET
-
15NLA No Longer Available, Thru Bolt SetNo Longer Available, Thru Bolt Set
-
1613-26996 LOCKWASHER, (#10)LOCKWASHER, (#10)
