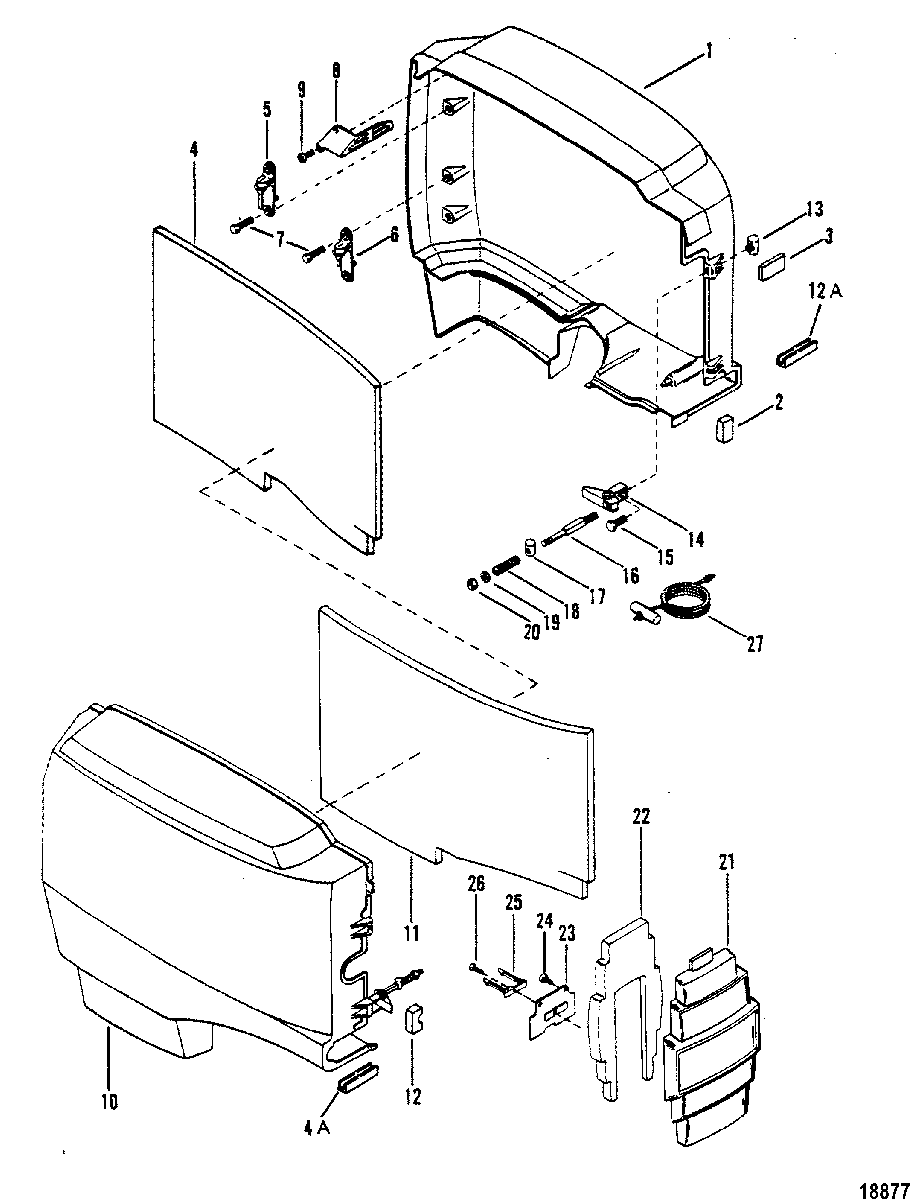

Cowl and Front Cover для Mercury - V-175 8058870 & Up
-
№АртикулНазвание
-
1/102151-6608A13 PORT/STBD. COWL
(Black) SN# 4838073 & BelowPORT/STBD. COWL
(Black) SN# 4838073 & Below -
12151-7620A4 COWL ASSEMBLY, Port
(Black) SN# 4838074 & UpCOWL ASSEMBLY, Port
(Black) SN# 4838074 & Up -
12151-7620A22 COWL ASSEMBLY, Port
(Gray)COWL ASSEMBLY, Port
(Gray) -
12151-9447A18 COWL ASSEMBLY, Port
(Oyster)COWL ASSEMBLY, Port
(Oyster) -
267260 SEALSEAL
-
367258 PADPAD
-
488227 BLANKETBLANKET
-
4A193681 SEAL, (3.20 Inch)
(Oyster)SEAL, (3.20 Inch)
(Oyster) -
5879871 BRACKET, UPPERBRACKET, UPPER
-
6879851 BRACKET, LOWERBRACKET, LOWER
-
710-37562 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
868049 SHIELD
(STARBOARD)(BLACK & GRAY)SHIELD
(STARBOARD)(BLACK & GRAY) -
868048 SHIELD
(PORT)(BLACK & GRAY)SHIELD
(PORT)(BLACK & GRAY) -
8680491 SHIELD
(STARBOARD)(OYSTER)SHIELD
(STARBOARD)(OYSTER) -
8680481 SHIELD
(PORT)(OYSTER)SHIELD
(PORT)(OYSTER) -
910-48409 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
910-57807 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
910-35519 SCREW, (#10-16 X .50)SCREW, (#10-16 X .50)
-
102150-7619A1 COWL ASSEMBLY, Starboard
(Black)COWL ASSEMBLY, Starboard
(Black) -
102150-7619A5 COWL ASSEMBLY, Starboard
(Gray)COWL ASSEMBLY, Starboard
(Gray) -
102150-9452A3 COWL ASSEMBLY, Starboard
(Oyster)COWL ASSEMBLY, Starboard
(Oyster) -
1188227 BLANKETBLANKET
-
1299444 SEALSEAL
-
12A193681 SEAL, (3.20 Inch)
(Oyster)SEAL, (3.20 Inch)
(Oyster) -
1362628 BARRELBARREL
-
1446785A5 COWL LATCH ASSEMBLYCOWL LATCH ASSEMBLY
-
1510-31312 SCREW, (#10-32 x 0.875)SCREW, (#10-32 x 0.875)
-
1615222 BARBAR
-
1762629 BARRELBARREL
-
1824-62624 SPRINGSPRING
-
1912-30164 WASHER, (.192 x .375 x .0312)WASHER, (.192 x .375 x .0312)
-
2011-859124 NUT, (#10-32)NUT, (#10-32)
-
212149-5399A3 FRONT COVER
(Black)(Use With Ref. #23)FRONT COVER
(Black)(Use With Ref. #23) -
212149-5399A16 FRONT COVER
(Gray)(Use With Ref. #23)FRONT COVER
(Gray)(Use With Ref. #23) -
212149-7532A2 COWL FRONT COVER ASSEMBLY
(Black)(Use WithOut Ref. #23)COWL FRONT COVER ASSEMBLY
(Black)(Use WithOut Ref. #23) -
212149-7532A23 COWL FRONT COVER ASSEMBLY
(Gray)(Use WithOut Ref. #23)COWL FRONT COVER ASSEMBLY
(Gray)(Use WithOut Ref. #23) -
212149-7532A23 COWL FRONT COVER ASSEMBLY
(Oyster)(Use WithOut Ref. #23)COWL FRONT COVER ASSEMBLY
(Oyster)(Use WithOut Ref. #23) -
2267615 BLANKETBLANKET
-
2367261 SHIELD
(Use With Ref. #23)SHIELD
(Use With Ref. #23) -
2410-35519 SCREW, (#10-16 X .50)
(Use With Ref. #23)SCREW, (#10-16 X .50)
(Use With Ref. #23) -
2561158T HOOK
(Use With Ref. #23)HOOK
(Use With Ref. #23) -
2587907 HOOK
(Use WithOut Ref. #23)HOOK
(Use WithOut Ref. #23) -
2610-75162 SCREW
(Use With Ref. #23)SCREW
(Use With Ref. #23) -
2610-95700 SCREW, (#10-16 x .500)
(Use WithOut Ref. #23)SCREW, (#10-16 x .500)
(Use WithOut Ref. #23) -
2747341A11 EMERGENCY STARTER ROPE (MANUAL STARTING)EMERGENCY STARTER ROPE (MANUAL STARTING)
