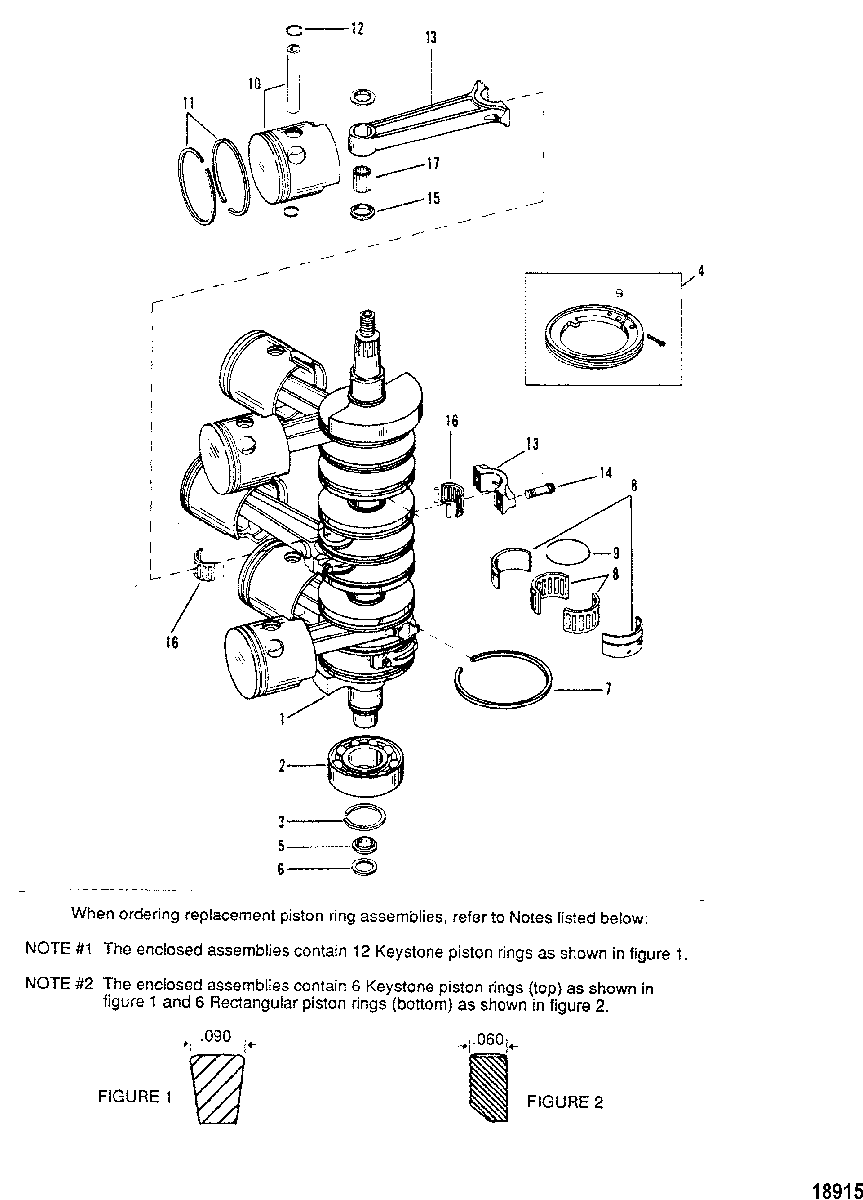

Crankshaft, Pistons and Connecting Rods для Mercury - V-175 8058870 & Up
-
№АртикулНазвание
-
1455-8745T5 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-67923T BEARING, Ball (LOWER)BEARING, Ball (LOWER)
-
353-67446 RINGRING
-
443-99727A1 DRIVE GEAR
(OIL INJECTION)DRIVE GEAR
(OIL INJECTION) -
554196A6 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
665800 PACKINGPACKING
-
739-67377T RING, SEALING
(.124 THICK)RING, SEALING
(.124 THICK) -
739-78633 RING, SEALING
(.139 THICK)RING, SEALING
(.139 THICK) -
831-93495T ROLLER BEARING
(1 PIECE)ROLLER BEARING
(1 PIECE) -
831-88903T ROLLER BEARING
(2 PIECE)ROLLER BEARING
(2 PIECE) -
831-67445 ROLLER BEARING
(2 PIECE)ROLLER BEARING
(2 PIECE) -
953-67444 RETAINING RINGRETAINING RING
-
10766-8666T41 PISTON ASSEMBLY
(Starboard-Standard) SN# 6618751 & UpPISTON ASSEMBLY
(Starboard-Standard) SN# 6618751 & Up -
10NLA No Longer Available, Piston Assembly
(Starboard-.030 Oversize SN# 6618751 & UpNo Longer Available, Piston Assembly
(Starboard-.030 Oversize SN# 6618751 & Up -
10766-8667T41 PISTON ASSEMBLY
(Port-Standard) SN# 6618751 & UpPISTON ASSEMBLY
(Port-Standard) SN# 6618751 & Up -
10NLA No Longer Available, Piston Assembly
(Port-.030 Oversize) SN# 6618751 & UpNo Longer Available, Piston Assembly
(Port-.030 Oversize) SN# 6618751 & Up -
10765-7441T36 PISTON
(Starboard-Standard) SN# 6618750 & BelowPISTON
(Starboard-Standard) SN# 6618750 & Below -
10765-7443A12 PISTON
(Starboard-.015 Oversize SN# 6618750 & BelowPISTON
(Starboard-.015 Oversize SN# 6618750 & Below -
10765-7445A12 PISTON
(Starboard-.030 Oversize) SN# 6618750 & BelowPISTON
(Starboard-.030 Oversize) SN# 6618750 & Below -
10765-7442T36 PISTON
(Port-Standard) SN# 6618750 & BelowPISTON
(Port-Standard) SN# 6618750 & Below -
10765-7444A12 PISTON
(Port-.015 Oversize) SN# 6618750 & BelowPISTON
(Port-.015 Oversize) SN# 6618750 & Below -
10765-7446T12 PISTON
(Port-.030 Oversize) SN# 6618750 & BelowPISTON
(Port-.030 Oversize) SN# 6618750 & Below -
1139-813011A12 PISTON RING
(Standard) SN# 6618751 & UpPISTON RING
(Standard) SN# 6618751 & Up -
1139-90264A4 PISTON RING
(.030 Oversize) SN# 6618751 & UpPISTON RING
(.030 Oversize) SN# 6618751 & Up -
1139-78807A12 PISTON RING
(Standard-Use with 2 Ring Piston)(See Note #1 On Illustration) SN# 6618750 & BelowPISTON RING
(Standard-Use with 2 Ring Piston)(See Note #1 On Illustration) SN# 6618750 & Below -
1139-67376A12 PISTON RING
(Standard-Use with 3 Ring Piston)(See Note #1 On Illustration) SN# 6618750 & BelowPISTON RING
(Standard-Use with 3 Ring Piston)(See Note #1 On Illustration) SN# 6618750 & Below -
1139-93481A12 PISTON RING
(Standard)(See Note #2 On Illustration) SN# 6618750 & BelowPISTON RING
(Standard)(See Note #2 On Illustration) SN# 6618750 & Below -
1139-78918A4 PISTON RING
(.015 Oversize) SN# 6618750 & BelowPISTON RING
(.015 Oversize) SN# 6618750 & Below -
1139-85636A4 PISTON RING
(.030 Oversize) SN# 6618750 & BelowPISTON RING
(.030 Oversize) SN# 6618750 & Below -
1253-857196 RING, LockRING, Lock
-
13636-8119A6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1410-93886 SCREW, (.3125-28 X .875)SCREW, (.3125-28 X .875)
-
1410-76349 SCREW, (.3125-24 X 1.00)SCREW, (.3125-24 X 1.00)
-
1512-8M0032839 WASHERWASHER
-
1631-8M0045428 BEARING KITBEARING KIT
-
1729-67483 NEEDLE BEARINGNEEDLE BEARING
-
-27-11338A88 GASKET SET, Engine Overhaul
SN# 6618751 & UpGASKET SET, Engine Overhaul
SN# 6618751 & Up -
-27-79583A81 GASKET SET
SN# 5875204 THRU 6618750GASKET SET
SN# 5875204 THRU 6618750 -
-NLA No Longer Available, Gasket Set
(Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & BelowNo Longer Available, Gasket Set
(Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & Below
