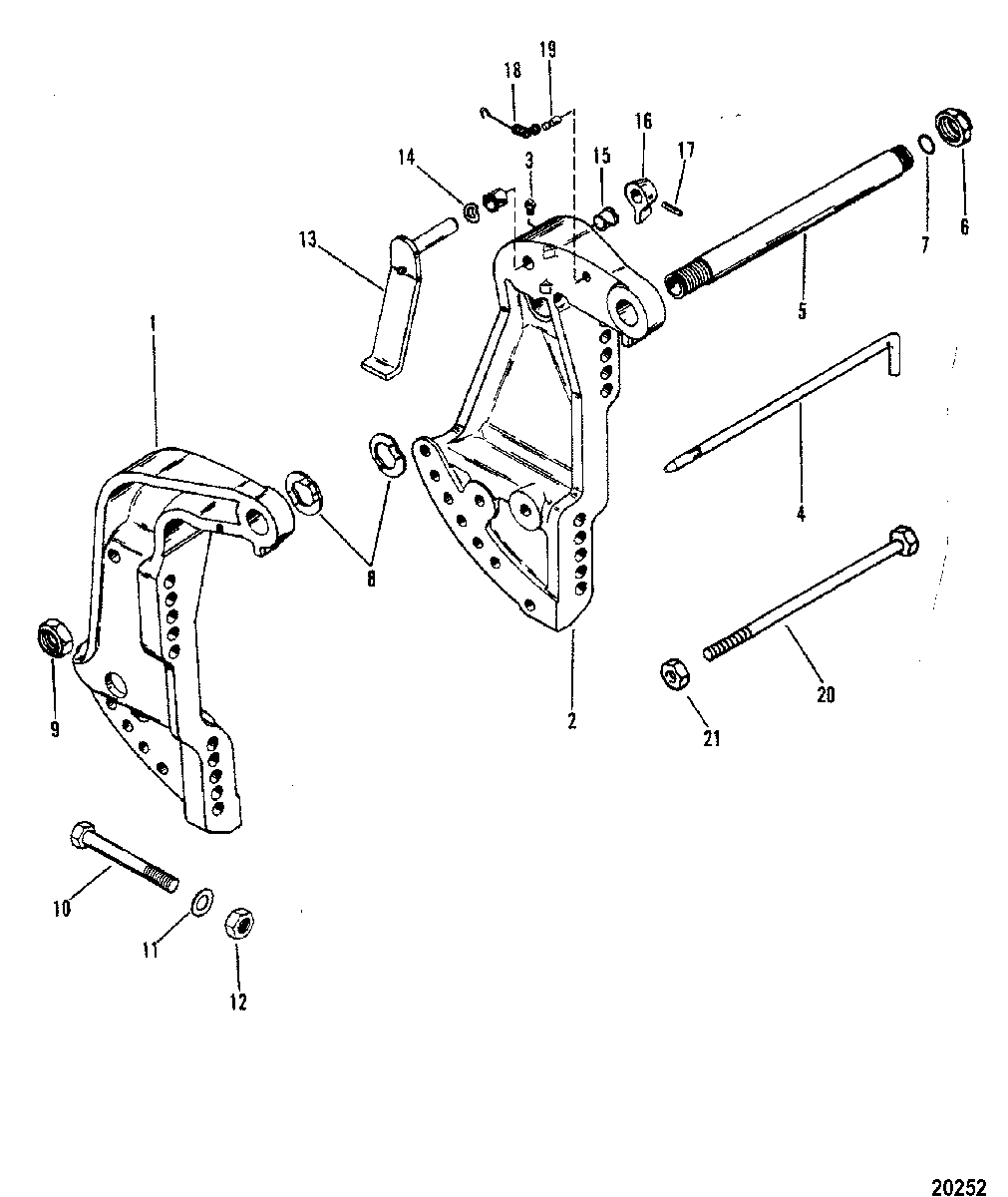

Transom Brackets(S/N-6616991 and Up) для Mercury - V-1500 4868998 THRU 0A904645
-
№АртикулНазвание
-
13401-8718F7 BRACKET ASSEMBLY, Transom
(BLACK)(STARBOARD )BRACKET ASSEMBLY, Transom
(BLACK)(STARBOARD ) -
23400-8716A8 BRACKET ASSEMBLY, Transom
(BLACK)(PORT )BRACKET ASSEMBLY, Transom
(BLACK)(PORT ) -
13401-8718F8 BRACKET ASSEMBLY, Transom
(GRAY)(STARBOARD)BRACKET ASSEMBLY, Transom
(GRAY)(STARBOARD) -
23400-8716A9 BRACKET ASSEMBLY, Transom
(GRAY)(PORT )BRACKET ASSEMBLY, Transom
(GRAY)(PORT ) -
322-98727 FITTING, Grease
(PORT)FITTING, Grease
(PORT) -
417-8M0026068 PIN ASSEMBLY, Tilt Lock
(NON POWER TRIM)PIN ASSEMBLY, Tilt Lock
(NON POWER TRIM) -
5826125A1 TILT TUBETILT TUBE
-
611-82671327 NUT
(BLACK)NUT
(BLACK) -
611-82671327 NUT
(GRAY)NUT
(GRAY) -
725-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
813-88750 WASHERWASHER
-
911-858869 NUT, (.875-14)NUT, (.875-14)
-
1010-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
1112-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1211-91962 NUT, (.500-20)NUT, (.500-20)
-
138M0115104 LEVER ASSEMBLYLEVER ASSEMBLY
-
1413-99611 WAVE WASHERWAVE WASHER
-
1523-65830 NYLINERNYLINER
-
1699633 KNOB
(BLACK)KNOB
(BLACK) -
1699633 KNOB
(GRAY)KNOB
(GRAY) -
1717-99615 PIN, GroovePIN, Groove
-
1824-99622 SPRINGSPRING
-
1917-99604 PIN, GroovePIN, Groove
-
2010-96930A1 BOLT ASSEMBLY
(POWER TRIM)BOLT ASSEMBLY
(POWER TRIM) -
2111-23161 NUT, (.375-24)
(POWER TRIM)NUT, (.375-24)
(POWER TRIM) -
-27-90484A88 GASKET SETGASKET SET
