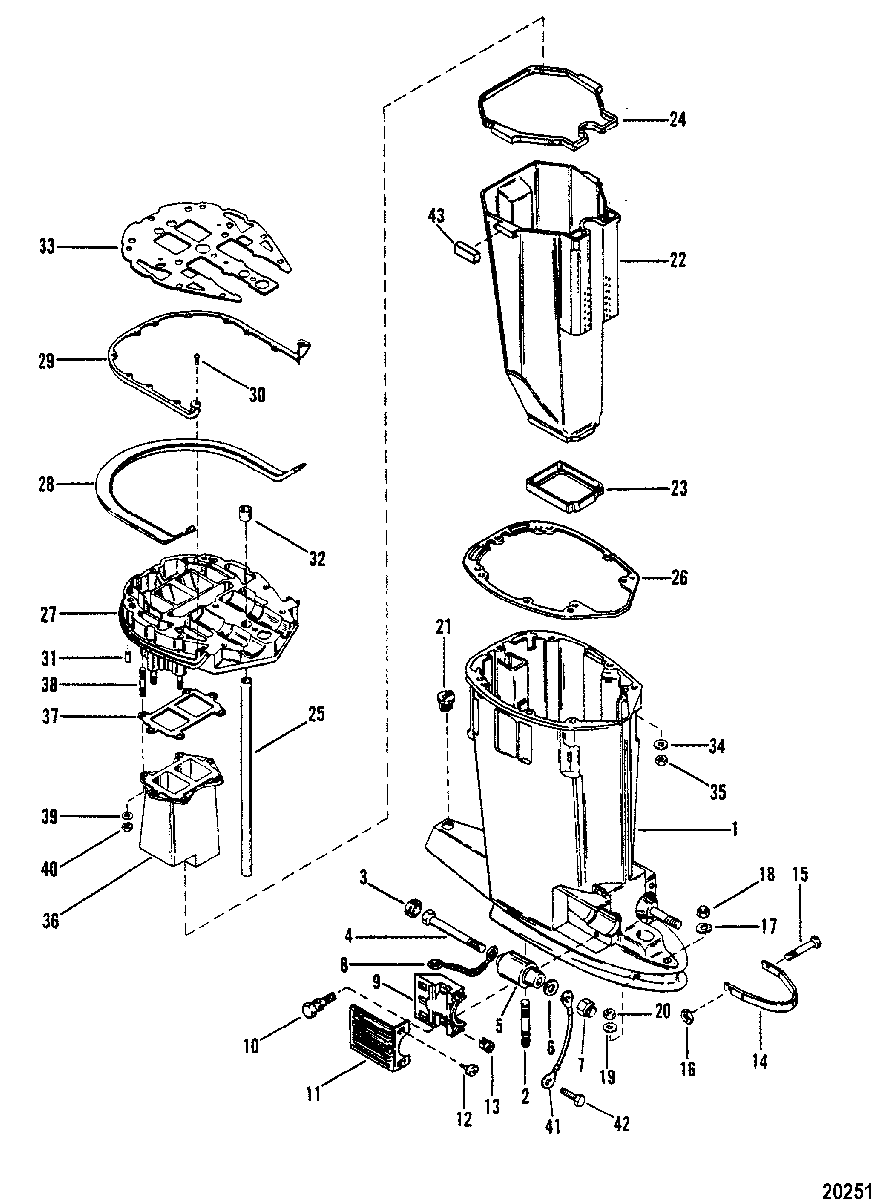

Driveshaft Housing and Exhaust Tube для Mercury - V-1500 4868998 THRU 0A904645
-
№АртикулНазвание
-
11579-7315A7 HOUSING ASSEMBLY, Driveshaft
(Black) SN# ME-5432021 & BelowHOUSING ASSEMBLY, Driveshaft
(Black) SN# ME-5432021 & Below -
11590-8343A7 HOUSING ASSEMBLY, Driveshaft (BLACK)
SN# 5432022 & UpHOUSING ASSEMBLY, Driveshaft (BLACK)
SN# 5432022 & Up -
11590-8343A8 HOUSING ASSEMBLY, Driveshaft
(Gray)HOUSING ASSEMBLY, Driveshaft
(Gray) -
216-56295 STUD, (.437 x 2.69)
(LONG SHAFT)STUD, (.437 x 2.69)
(LONG SHAFT) -
216-74732 STUD
(X-LONG SHAFT)STUD
(X-LONG SHAFT) -
325067 BUMPERBUMPER
-
410-898831 SCREW, (.500-20 x 6.00)SCREW, (.500-20 x 6.00)
-
577327 MOUNTMOUNT
-
577327 MOUNT
(HEAVY DUTY)MOUNT
(HEAVY DUTY) -
612-49339 WASHER, (.8125)WASHER, (.8125)
-
711-25096 NUTNUT
-
888238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
954-8M0036782 CLAMPCLAMP
-
1010-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
11100-8M4500752 COVER, Black
(BLACK)COVER, Black
(BLACK) -
11100-8M4500752 COVER
(GRAY)COVER
(GRAY) -
1210-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
-
1311-35521 NUTNUT
-
1467703 STRAP
SN# 6616990 & BelowSTRAP
SN# 6616990 & Below -
1510-67769 SCREW, (.375-24 x 4.00)
SN# 6616990 & BelowSCREW, (.375-24 x 4.00)
SN# 6616990 & Below -
1611-25269 NUT, (.375-24)
SN# 6616990 & BelowNUT, (.375-24)
SN# 6616990 & Below -
1712-73862 WASHERWASHER
-
1811-29489 NUTNUT
-
1912-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
2011-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2119-64649 PLUGPLUG
-
2267075 TUBE, Exhaust
SN# ME-5432021 & BelowTUBE, Exhaust
SN# ME-5432021 & Below -
2289743 TUBE, Exhaust
SN# ME-5432022 & UpTUBE, Exhaust
SN# ME-5432022 & Up -
2366350001 SEAL (LOWER)SEAL (LOWER)
-
2486027 SEAL (UPPER)SEAL (UPPER)
-
2532-8M0042788 TUBE, Water
(LONG SHAFT)TUBE, Water
(LONG SHAFT) -
2532-8M0042790 TUBE
(X-LONG SHAFT)TUBE
(X-LONG SHAFT) -
2627-991734 GASKETGASKET
-
2778067A1 PLATE ASSEMBLY
SN# ME-5432021 & BelowPLATE ASSEMBLY
SN# ME-5432021 & Below -
2741945A6 PLATE ASSEMBLY
SN# ME-5432022 & UpPLATE ASSEMBLY
SN# ME-5432022 & Up -
28707482 SEALSEAL
-
2968011 BRACKETBRACKET
-
3010-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3117-43044 PIN, DowelPIN, Dowel
-
3226-38970 SEALSEAL
-
3327-991772 GASKETGASKET
-
3412-20553 WASHERWASHER
-
3511-69254 NUTNUT
-
36879288T71 EXTENSIONEXTENSION
-
3727-782461 GASKET
SN# 6616990 & BelowGASKET
SN# 6616990 & Below -
3816-66021 STUDSTUD
-
3912-20533 WASHERWASHER
-
4011-30506 NUT, (.250-28)NUT, (.250-28)
-
4188238A10 CABLE ASSEMBLY, Ground
SN# 6616991 & UpCABLE ASSEMBLY, Ground
SN# 6616991 & Up -
4210-41508 SCREW, (.250-20 x .500) Stainless Steel
SN# 6616991 & UpSCREW, (.250-20 x .500) Stainless Steel
SN# 6616991 & Up -
4365638 BOOT
SN# ME-5432021 & BelowBOOT
SN# ME-5432021 & Below -
-78148A1 SPACER ASSEMBLY
(X-LONG SHAFT)SPACER ASSEMBLY
(X-LONG SHAFT) -
-17-43044 PIN, Dowel
(X-LONG SHAFT)PIN, Dowel
(X-LONG SHAFT) -
-27-90484A88 GASKET SET
SN# ME-6042946/MA-6038681 & UpGASKET SET
SN# ME-6042946/MA-6038681 & Up -
-27-79583A81 GASKET SET
SN# 5866777 THRU 6042945GASKET SET
SN# 5866777 THRU 6042945 -
-NLA No Longer Available, Gasket Set
(Service Bulletin 81-8) SN# ME-5866776/MA-6038680 & BelowNo Longer Available, Gasket Set
(Service Bulletin 81-8) SN# ME-5866776/MA-6038680 & Below
