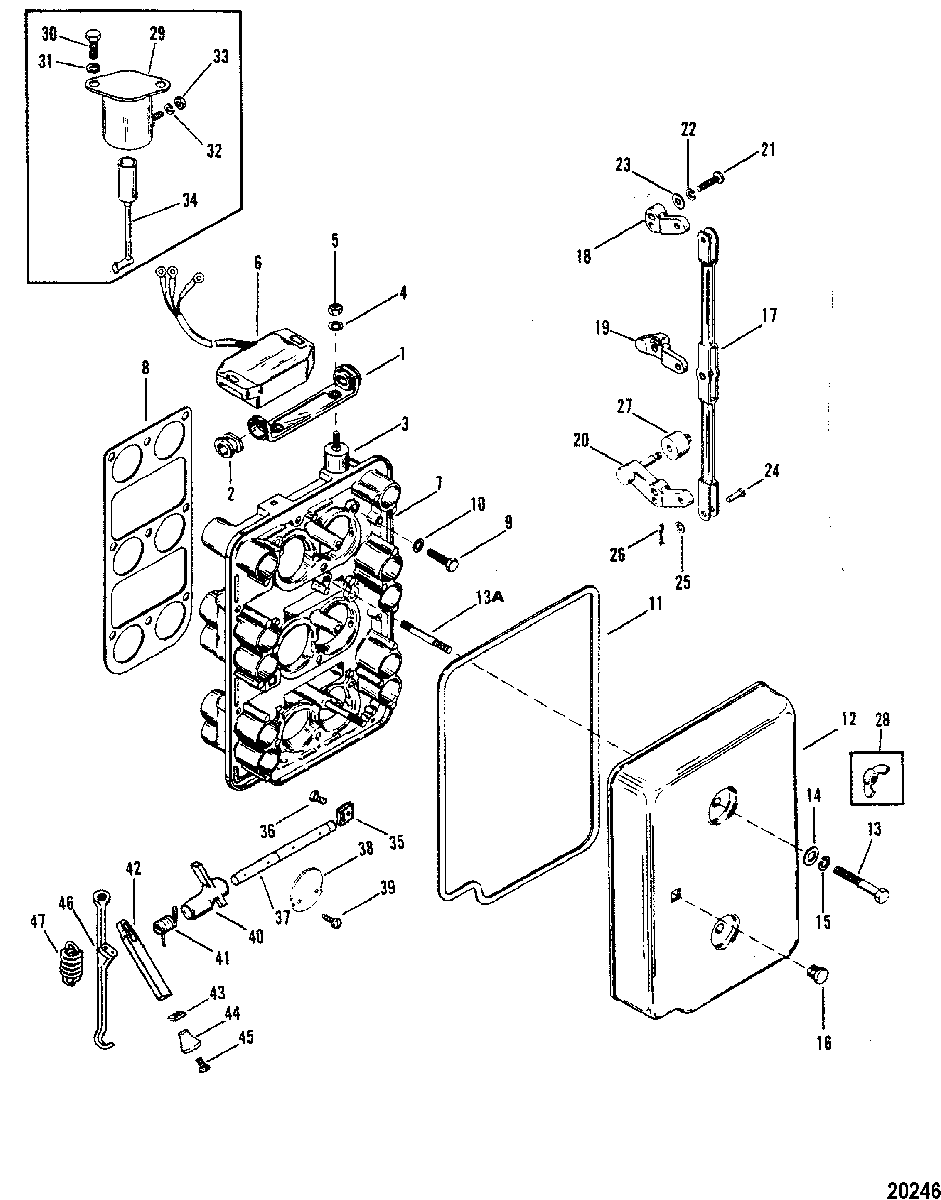

Choke Plate and Throttle Levers для Mercury - V-1500 4868998 THRU 0A904645
-
№АртикулНазвание
-
167245T BRACKET, COWL MOUNTING - UPPERBRACKET, COWL MOUNTING - UPPER
-
225-67272 GROMMETGROMMET
-
390435 MOUNTMOUNT
-
412-21249 WASHERWASHER
-
511-8267089 NUT, (.250-28)NUT, (.250-28)
-
687076A4 IDLE SPEED CONTROL ASSEMBLYIDLE SPEED CONTROL ASSEMBLY
-
7799831 PLATE
SN# 6616991 & UpPLATE
SN# 6616991 & Up -
799390A4 PLATE ASSEMBLY, Choke
SN# 6616990 & BelowPLATE ASSEMBLY, Choke
SN# 6616990 & Below -
827-672741 GASKETGASKET
-
910-68000 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
1012-20583 WASHERWASHER
-
1127-672751 GASKETGASKET
-
1267246T COVERCOVER
-
1310-98255 SCREW
SN# ME-6443213/MA-6443818 & UpSCREW
SN# ME-6443213/MA-6443818 & Up -
13A16-33071 STUD
SN# ME-6443212/MA-6443817 & BelowSTUD
SN# ME-6443212/MA-6443817 & Below -
1412-69056 WASHER, (.255 x .625 x .0312)WASHER, (.255 x .625 x .0312)
-
1513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1619-90585 PLUGPLUG
-
1767760 LINK, ThrottleLINK, Throttle
-
1867759 LEVER, Throttle
(CENTER/UPPER)(NON OIL INJECTION)LEVER, Throttle
(CENTER/UPPER)(NON OIL INJECTION) -
1867759 LEVER, Throttle
(UPPER)(OIL INJECTION)LEVER, Throttle
(UPPER)(OIL INJECTION) -
1941049 LEVER, Throttle
(CENTER)(OIL INJECTION)LEVER, Throttle
(CENTER)(OIL INJECTION) -
2067749 LEVER, Throttle, LOWERLEVER, Throttle, LOWER
-
2110-15124 SCREW (3/4")SCREW (3/4")
-
2213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2312-24676 WASHER, (.200 x .440 x .032)WASHER, (.200 x .440 x .032)
-
2417-67297 PIN, ClevisPIN, Clevis
-
2512-89302 WASHERWASHER
-
2618-26953 COTTER PINCOTTER PIN
-
2767748 ROLLERROLLER
-
2811-26001 NUT
SN# ME-6443212/MA-6443817 & BelowNUT
SN# ME-6443212/MA-6443817 & Below -
2954293A10 SOLENOID ASSEMBLY, Choke
SN# USA-5503246/AUS-8062734 & BelowSOLENOID ASSEMBLY, Choke
SN# USA-5503246/AUS-8062734 & Below -
3010-39349 SCREW, (.312-18 x .750) Stainless Steel
SN# USA-5503246/AUS-8062734 & BelowSCREW, (.312-18 x .750) Stainless Steel
SN# USA-5503246/AUS-8062734 & Below -
3113-26993 LOCKWASHER, (.312)
SN# USA-5503246/AUS-8062734 & BelowLOCKWASHER, (.312)
SN# USA-5503246/AUS-8062734 & Below -
3213-26996 LOCKWASHER, (#10) Stainless Steel
SN# USA-5503246/AUS-8062734 & BelowLOCKWASHER, (#10) Stainless Steel
SN# USA-5503246/AUS-8062734 & Below -
3311-68219 NUT, (#10-32) Stainless Steel
SN# USA-5503246/AUS-8062734 & BelowNUT, (#10-32) Stainless Steel
SN# USA-5503246/AUS-8062734 & Below -
3456074A11 PLUNGER AND LINK
SN# USA-5503246/AUS-8062734 & BelowPLUNGER AND LINK
SN# USA-5503246/AUS-8062734 & Below -
3589041 RETAINER
SN# USA-5503246/AUS-8062734 & BelowRETAINER
SN# USA-5503246/AUS-8062734 & Below -
3610-48408 SCREW, (#10-16 x .500)
SN# USA-5503246/AUS-8062734 & BelowSCREW, (#10-16 x .500)
SN# USA-5503246/AUS-8062734 & Below -
3773861A1 SHAFT ASSEMBLY, Choke
SN# USA-5503246/AUS-8062734 & BelowSHAFT ASSEMBLY, Choke
SN# USA-5503246/AUS-8062734 & Below -
3876040 SHUTTER, Choke
SN# USA-5503246/AUS-8062734 & BelowSHUTTER, Choke
SN# USA-5503246/AUS-8062734 & Below -
3910-75898 SCREW
SN# USA-5503246/AUS-8062734 & BelowSCREW
SN# USA-5503246/AUS-8062734 & Below -
4090401 LEVER, Choke Shaft
SN# USA-5503246/AUS-8062734 & BelowLEVER, Choke Shaft
SN# USA-5503246/AUS-8062734 & Below -
4124-88578 SPRING
SN# USA-5503246/AUS-8062734 & BelowSPRING
SN# USA-5503246/AUS-8062734 & Below -
4273860 ROD, Choke - Manual
SN# USA-5503246/AUS-8062734 & BelowROD, Choke - Manual
SN# USA-5503246/AUS-8062734 & Below -
4325-67273 GROMMET
SN# USA-5503246/AUS-8062734 & BelowGROMMET
SN# USA-5503246/AUS-8062734 & Below -
4467247 KNOB
SN# USA-5503246/AUS-8062734 & BelowKNOB
SN# USA-5503246/AUS-8062734 & Below -
4510-67262 SCREW
SN# USA-5503246/AUS-8062734 & BelowSCREW
SN# USA-5503246/AUS-8062734 & Below -
4667249 ROD, Choke
SN# USA-5503246/AUS-8062734 & BelowROD, Choke
SN# USA-5503246/AUS-8062734 & Below -
4724-88522 SPRING
SN# USA-5503246/AUS-8062734 & BelowSPRING
SN# USA-5503246/AUS-8062734 & Below -
-27-90484A88 GASKET SET
SN# ME-6042946/MA-6038681 & UpGASKET SET
SN# ME-6042946/MA-6038681 & Up -
-27-79583A81 GASKET SET
SN# 5866777 THRU 6042945GASKET SET
SN# 5866777 THRU 6042945 -
-NLA No Longer Available, Gasket Set
(Service Bulletin 81-8) SN# ME-5866776/MA-6038680 & BelowNo Longer Available, Gasket Set
(Service Bulletin 81-8) SN# ME-5866776/MA-6038680 & Below
