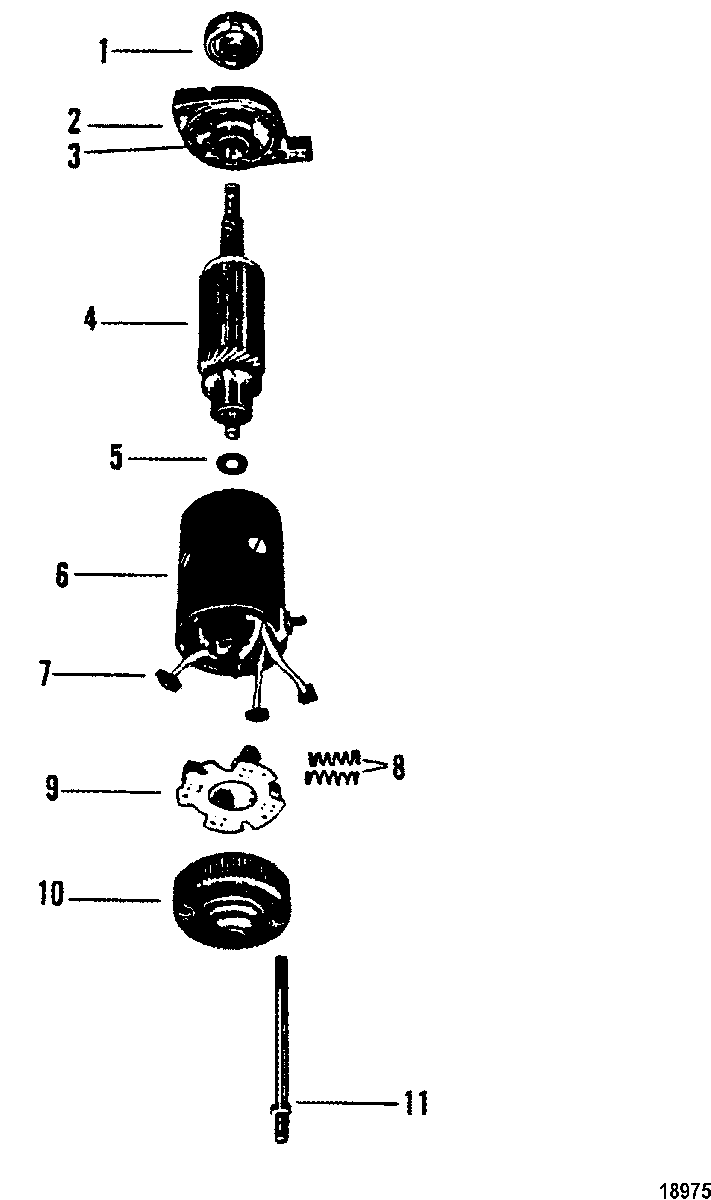

Starter Motor(Prestolite #MJL-4003B) для Mercury - V-1500 4868998 THRU 0A904645
-
№АртикулНазвание
-
-50-898265010 STARTER MOTOR ASSEMBLY
(REPLACE W/50-72467)STARTER MOTOR ASSEMBLY
(REPLACE W/50-72467) -
1392-5053 DRIVEDRIVE
-
2392-4261 PLATEPLATE
-
3392-2518 BUSHINGBUSHING
-
5392-2523 PACKAGEPACKAGE
-
6NLA No Longer Available, Fame and FieldNo Longer Available, Fame and Field
-
7392-2521 BRUSH AND TERMINAL SETBRUSH AND TERMINAL SET
-
8392-2514 SPRING SET (2 SPRINGS PER SET)SPRING SET (2 SPRINGS PER SET)
-
9392-2519 PLATE/HOLDER ASSEMBLY, BrushPLATE/HOLDER ASSEMBLY, Brush
-
10NLA No Longer Available, End CapNo Longer Available, End Cap
-
11392-4262 THRU BOLTTHRU BOLT
