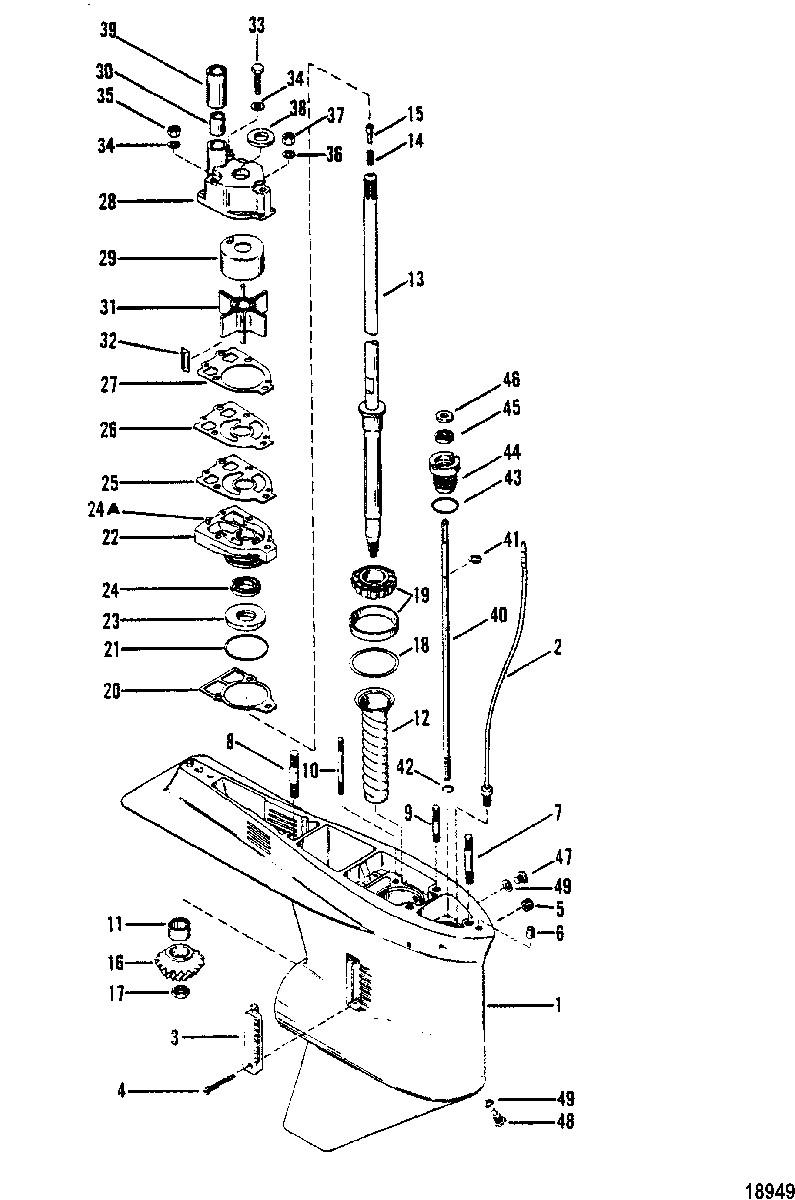

Gear Housing(Driveshaft)(Without a Driveshaft Nut) для Mercury - V-1500 4868998 THRU 0A904645
-
№АртикулНазвание
-
01647-9148T81 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(LONG)(BLACK)GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(LONG)(BLACK) -
01647-9148T81 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(LONG)(GRAY)GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(LONG)(GRAY) -
01647-9148T82 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(X-LONG)(BLACK)GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(X-LONG)(BLACK) -
01647-9148T82 GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(X-LONG)(GRAY)GEAR HOUSING ASSEMBLY, Standard Rotation 2:1 Gear Ratio
(X-LONG)(GRAY) -
11647-7321A11 GEAR HOUSING ASSEMBLY (Basic)
(BLACK)(CASTING #1647-6670C)GEAR HOUSING ASSEMBLY (Basic)
(BLACK)(CASTING #1647-6670C) -
11647-8688T9 GEAR HOUSING ASSEMBLY (Basic)
(BLACK)(CASTING #1647-8675C)GEAR HOUSING ASSEMBLY (Basic)
(BLACK)(CASTING #1647-8675C) -
11647-8688T10 GEAR HOUSING ASSEMBLY (Basic)
(GRAY)GEAR HOUSING ASSEMBLY (Basic)
(GRAY) -
222-85822A10 CONNECTOR ASSEMBLYCONNECTOR ASSEMBLY
-
366885 INSERT
(STARBOARD )(Use where Applicable)INSERT
(STARBOARD )(Use where Applicable) -
366884 INSERT
(PORT)(Use where Applicable)INSERT
(PORT)(Use where Applicable) -
410-76156 SCREW, (#10-32 x 1.88)
(Use where Applicable)SCREW, (#10-32 x 1.88)
(Use where Applicable) -
511-859124 NUT, (#10-32) Stainless Steel
(Use where Applicable)NUT, (#10-32) Stainless Steel
(Use where Applicable) -
617-43044 PIN, DowelPIN, Dowel
-
716-786382 STUD, (.438 x 3.12)
(LONG)STUD, (.438 x 3.12)
(LONG) -
716-78639 STUD
(9"- X-LONG)STUD
(9"- X-LONG) -
816-8M0133358 STUD, (.44 x 2.06)
(LONG)STUD, (.44 x 2.06)
(LONG) -
816-74730 STUD
(7-1/16"-X-LONG)STUD
(7-1/16"-X-LONG) -
916-8M0034463 STUD, (.312 x 3.38)STUD, (.312 x 3.38)
-
1016-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
1131-35934A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1223-98621 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
1345-98682A1 DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
1345-41509A2 DRIVESHAFT ASSEMBLY
(X-LONG)DRIVESHAFT ASSEMBLY
(X-LONG) -
1424-34576 SPRINGSPRING
-
1517-30545 PINPIN
-
1643-78081T1 GEAR, PinionGEAR, Pinion
-
1711-35921 NUT, (.625-18)NUT, (.625-18)
-
1815-57007A1 SHIMSHIM
-
1931-53079A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2027-856704 GASKETGASKET
-
2125-33145 O-RING, (1.984 x .139)O-RING, (1.984 x .139)
-
2246-96146A6 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
2326-89238 SEAL, OilSEAL, Oil
-
2426-16977 SEAL, OilSEAL, Oil
-
24A17-8M0084627 PIN, Dowel
(Use where Applicable)PIN, Dowel
(Use where Applicable) -
2527-8M0090319 GASKETGASKET
-
26324351 FACE PLATEFACE PLATE
-
2727-858524 GASKETGASKET
-
2846-96148T1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
2948752T INSERTINSERT
-
3026-38970 SEALSEAL
-
3147-89984T4 IMPELLERIMPELLER
-
3228-8M0032834 KEYKEY
-
3310-96411 SCREW, (#14-8 x 2.25)SCREW, (#14-8 x 2.25)
-
3412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3511-35888 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
3612-36001 WASHERWASHER
-
3711-826709111 NUT, (.312-24)NUT, (.312-24)
-
38NLA No Longer Available, Ring-RubberNo Longer Available, Ring-Rubber
-
3923-29804T SLEEVESLEEVE
-
4076041 SHIFT SHAFT, Lower
(HOUSING CASTING #1647-6670C)SHIFT SHAFT, Lower
(HOUSING CASTING #1647-6670C) -
40789022 SHAFT
(HOUSING CASTING #1647-8675C)SHAFT
(HOUSING CASTING #1647-8675C) -
4153-29641 E RINGE RING
-
4253-78907 RING, RetainingRING, Retaining
-
4325-25439 O-RING, (.862 x .103)O-RING, (.862 x .103)
-
4423-77631A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
4526-8164641 SEAL, OilSEAL, Oil
-
4612-77674 WASHERWASHER
-
4710-79953Q04 SCREW, (.375-16 x .250)SCREW, (.375-16 x .250)
-
4822-8M0058389 SCREW, MagneticSCREW, Magnetic
-
4912-191833 WASHER, FiberWASHER, Fiber
-
-46-96148A8 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-26-55682A1 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-27-90484A88 GASKET SET
SN# ME-6042946/MA-6038681 & UpGASKET SET
SN# ME-6042946/MA-6038681 & Up -
-27-79583A81 GASKET SET
SN# 5866777 THRU 6042945GASKET SET
SN# 5866777 THRU 6042945 -
-NLA No Longer Available, Gasket Set
(Service Bulletin 81-8 SN# ME-5866776/MA-6038680 & BelowNo Longer Available, Gasket Set
(Service Bulletin 81-8 SN# ME-5866776/MA-6038680 & Below
