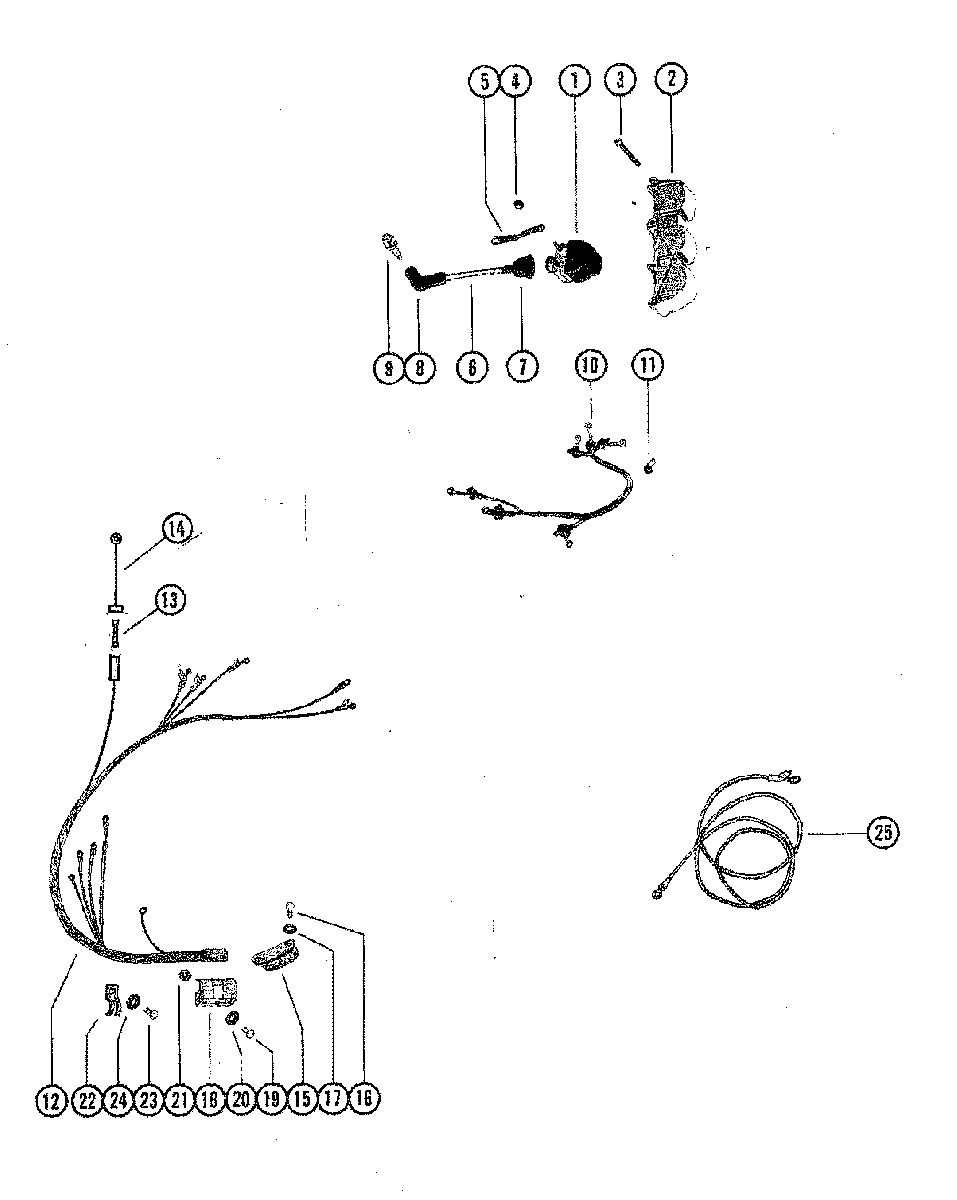

WIRING HARNESS AND IGNITION COIL для Mercury - 90 (6 CYL.) 5594657 THRU 6436122
-
№АртикулНазвание
-
1339-832757A4 IGNITION COILIGNITION COIL
-
243542 COVER, IGNITION COILCOVER, IGNITION COIL
-
310-88856 SCREW, IGNITION COIL COVER (2")SCREW, IGNITION COIL COVER (2")
-
411-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
584-60466A1 CABLE ASSEMBLY, IGNITION COIL (BLACK)CABLE ASSEMBLY, IGNITION COIL (BLACK)
-
684-813715A1 CABLE, HIGH TENSIONCABLE, HIGH TENSION
-
7332-2854T01 BOOT, COIL ENDBOOT, COIL END
-
885-63709A1 PROTECTOR, SPARK PLUG ENDPROTECTOR, SPARK PLUG END
-
933-97180Q SPARK PLUG (CHAMPION #L76-V)SPARK PLUG (CHAMPION #L76-V)
-
1084-85537A2 HARNESS, COIL TO SWITCH BOX (#2, 4 AND 6)HARNESS, COIL TO SWITCH BOX (#2, 4 AND 6)
-
1084-85537A1 HARNESS, COIL TO SWITCH BOX (#1, 3 AND 5)HARNESS, COIL TO SWITCH BOX (#1, 3 AND 5)
-
1154-63153 CLIP, HARNESS TO COIL COVERCLIP, HARNESS TO COIL COVER
-
1284-96188A4 WIRING HARNESS
UNITED STATES 6026608 AND BELOW
AUSTRALIA 8074512 AND BELOW
CANADA 7185072 AND BELOWWIRING HARNESS
UNITED STATES 6026608 AND BELOW
AUSTRALIA 8074512 AND BELOW
CANADA 7185072 AND BELOW -
1284-96188A4 WIRING HARNESS
UNITED STATES 6026609 AND UP
AUSTRALIA 8074513 AND UP
CANADA 7185073 AND UPWIRING HARNESS
UNITED STATES 6026609 AND UP
AUSTRALIA 8074513 AND UP
CANADA 7185073 AND UP -
1388-79091 FUSE
UNITED STATES 6026609 AND UP
AUSTRALIA 8074513 AND UP
CANADA 7185073 AND UPFUSE
UNITED STATES 6026609 AND UP
AUSTRALIA 8074513 AND UP
CANADA 7185073 AND UP -
1484-95084A2 WIRE, FUSE HOLDER
UNITED STATES 6026609 AND UP
AUSTRALIA 8074513 AND UP
CANADA 7185073 AND UPWIRE, FUSE HOLDER
UNITED STATES 6026609 AND UP
AUSTRALIA 8074513 AND UP
CANADA 7185073 AND UP -
1554-88608 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1610-28636 SCREW, WIRING HARNESS CLAMPSCREW, WIRING HARNESS CLAMP
-
1713-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREWLOCKWASHER, WIRING HARNESS CLAMP SCREW
-
1889047 BRACKET, WIRING HARNESSBRACKET, WIRING HARNESS
-
1910-24637 SCREW, WIRING HARNESS BRACKETSCREW, WIRING HARNESS BRACKET
-
2012-38833 WASHER, BRACKET SCREWWASHER, BRACKET SCREW
-
2111-20110 NUT, BRACKET SCREWNUT, BRACKET SCREW
-
2288751 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
2310-28636 SCREW, WIRING HARNESS CLAMPSCREW, WIRING HARNESS CLAMP
-
2412-20533 WASHER, CLAMP SCREWWASHER, CLAMP SCREW
-
2584-88439A3 BATTERY CABLE (POSITIVE)BATTERY CABLE (POSITIVE)
-
2584-88439A4 BATTERY CABLE (NEGATIVE)BATTERY CABLE (NEGATIVE)
