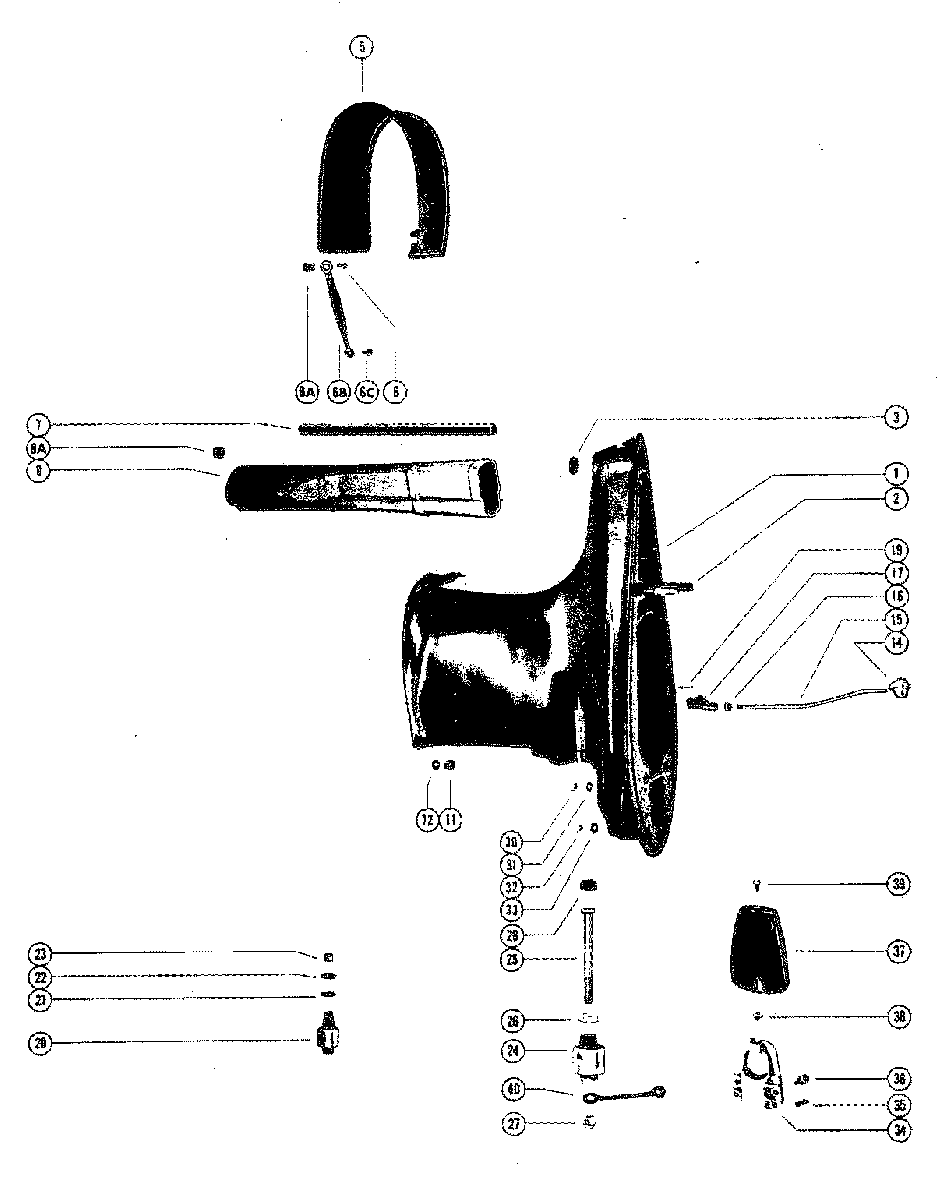

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 90 (6 CYL.) 5594657 THRU 6436122

  • №
    Артикул
    Название
  • 1
    1573-5239A4 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 2
    16-56295 STUD, DRIVE SHAFT HOUSING
    STUD, DRIVE SHAFT HOUSING
  • 3
    19-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLE
    PLUG, PLASTIC - TRIM TAB SCREW HOLE
  • 5
    37417 COVER, TRIM - DRIVE SHAFT HOUWING
    COVER, TRIM - DRIVE SHAFT HOUWING
  • 6
    10-57807 SCREW, TRIM COVER TO BOTTOM COWL
    SCREW, TRIM COVER TO BOTTOM COWL
  • 6A
    25-8M0079730 GROMMET, PLASTIC - TRIM COVER SCREW
    GROMMET, PLASTIC - TRIM COVER SCREW
  • 6B
    84-88238T01 GROUND STRAP ASSEMBLY, TRIM COVER SCREW
    GROUND STRAP ASSEMBLY, TRIM COVER SCREW
  • 6C
    10-62568 SCREW, GROUND STRAP ATTACHING
    SCREW, GROUND STRAP ATTACHING
  • 7
    32-60897 TUBE, WATER INLET
    TUBE, WATER INLET
  • 8
    78184T EXHAUST TUBE
    EXHAUST TUBE
  • 8A
    65638 BOOT, EXHAUST TUBE
    BOOT, EXHAUST TUBE
  • 11
    11-69254 NUT, POWERHEAD STUDS (3/8-24)
    NUT, POWERHEAD STUDS (3/8-24)
  • 12
    12-20553 WASHER, POWERHEAD STUDS
    WASHER, POWERHEAD STUDS
  • 14
    52887 GUIDE, PUSH ROD
    NOT USED WITH FULL POWER TRIM
    UNITED STATES 5825802 AND BELOW
    AUSTRALIA 8071019 AND BELOW
    CANADA 7170897 AND BELOW
    GUIDE, PUSH ROD
    NOT USED WITH FULL POWER TRIM
    UNITED STATES 5825802 AND BELOW
    AUSTRALIA 8071019 AND BELOW
    CANADA 7170897 AND BELOW
  • 15
    47558 ROD, PUSH
    NOT USED WITH FULL POWER TRIM UNITED STATES 5825802 AND BELOW
    AUSTRALIA 8071019 AND BELOW
    CANADA 7170897 AND BELOW
    ROD, PUSH
    NOT USED WITH FULL POWER TRIM UNITED STATES 5825802 AND BELOW
    AUSTRALIA 8071019 AND BELOW
    CANADA 7170897 AND BELOW
  • 16
    11-69254 NUT, JAM - PUSH ROD
    NOT USED WITH FULL POWER TRIM UNITED STATES 5825802 AND BELOW
    AUSTRALIA 8071019 AND BELOW
    CANADA 7170897 AND BELOW
    NUT, JAM - PUSH ROD
    NOT USED WITH FULL POWER TRIM UNITED STATES 5825802 AND BELOW
    AUSTRALIA 8071019 AND BELOW
    CANADA 7170897 AND BELOW
  • 17
    47559 YOKE, PUSH ROD
    NOT USED WITH FULL POWER TRIM UNITED STATES 5825802 AND BELOW
    AUSTRALIA 8071019 AND BELOW
    CANADA 7170897 AND BELOW
    YOKE, PUSH ROD
    NOT USED WITH FULL POWER TRIM UNITED STATES 5825802 AND BELOW
    AUSTRALIA 8071019 AND BELOW
    CANADA 7170897 AND BELOW
  • 14
    92704 GUIDE, PUSH ROD
    NOT USED WITH FULL POWER TRIM UNITED STATES 5825803 AND UP
    AUSTRALIA 8071020 AND UP
    CANADA 7170898 AND UP
    GUIDE, PUSH ROD
    NOT USED WITH FULL POWER TRIM UNITED STATES 5825803 AND UP
    AUSTRALIA 8071020 AND UP
    CANADA 7170898 AND UP
  • 15
    43417A2 ROD, PUSH
    NOT USED WITH FULL POWER TRIM
    UNITED STATES 5825803 AND UP
    AUSTRALIA 8071020 AND UP
    CANADA 7170898 AND UP
    ROD, PUSH
    NOT USED WITH FULL POWER TRIM
    UNITED STATES 5825803 AND UP
    AUSTRALIA 8071020 AND UP
    CANADA 7170898 AND UP
  • 16
    11-28770 NUT, JAM - PUSH ROD
    NOT USED WITH FULL POWER TRIM UNITED STATES 5825803 AND UP
    AUSTRALIA 8071020 AND UP
    CANADA 7170898 AND UP
    NUT, JAM - PUSH ROD
    NOT USED WITH FULL POWER TRIM UNITED STATES 5825803 AND UP
    AUSTRALIA 8071020 AND UP
    CANADA 7170898 AND UP
  • 17
    89813 YOKE, PUSH ROD
    NOT USED WITH FULL POWER TRIM UNITED STATES 5825803 AND UP
    AUSTRALIA 8071020 AND UP
    CANADA 7170898 AND UP
    YOKE, PUSH ROD
    NOT USED WITH FULL POWER TRIM UNITED STATES 5825803 AND UP
    AUSTRALIA 8071020 AND UP
    CANADA 7170898 AND UP
  • 19
    18-25191 COTTER PIN, PUSH ROD
    NOT USED WITH FULL POWER TRIM
    COTTER PIN, PUSH ROD
    NOT USED WITH FULL POWER TRIM
  • 20
    75296 MOUNT, RUBBER - UPPER
    MOUNT, RUBBER - UPPER
  • 21
    12-47840 WASHER, RUBBER - UPPER MOUNT BOLT
    WASHER, RUBBER - UPPER MOUNT BOLT
  • 22
    12-31263 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 23
    11-34933 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 24
    75299 MOUNT, RUBBER - LOWER
    MOUNT, RUBBER - LOWER
  • 25
    10-75284 SCREW, LOWER MOUNT (5-1/2")
    SCREW, LOWER MOUNT (5-1/2")
  • 26
    12-49339 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 27
    11-25096 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 28
    25067 BUMPER, RUBBER - LOWER MOUNTING SCREW
    BUMPER, RUBBER - LOWER MOUNTING SCREW
  • 30
    11-34933 NUT, GEAR HOUSING STUDS
    NUT, GEAR HOUSING STUDS
  • 31
    12-45176 WASHER, GEAR HOUSING STUDS
    WASHER, GEAR HOUSING STUDS
  • 32
    11-29489 NUT, GEAR HOUSING STUDS
    NUT, GEAR HOUSING STUDS
  • 33
    12-45176 WASHER, GEAR HOUSING STUDS
    WASHER, GEAR HOUSING STUDS
  • 34
    35608 CLAMP, LOWER MOUNT
    CLAMP, LOWER MOUNT
  • 35
    24-35522 SPRING, TENSION - LOWER MOUNT CLAMP
    SPRING, TENSION - LOWER MOUNT CLAMP
  • 36
    10-29256 SCREW, LOWER MOUNT CLAMP
    SCREW, LOWER MOUNT CLAMP
  • 37
    35474T COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 38
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
  • 39
    10-87884 SCREW, COVER TO LOWER CLAMP MOUNT
    SCREW, COVER TO LOWER CLAMP MOUNT
  • 40
    88238A10 WIRE ASSEMBLY, GROUND
    WIRE ASSEMBLY, GROUND
