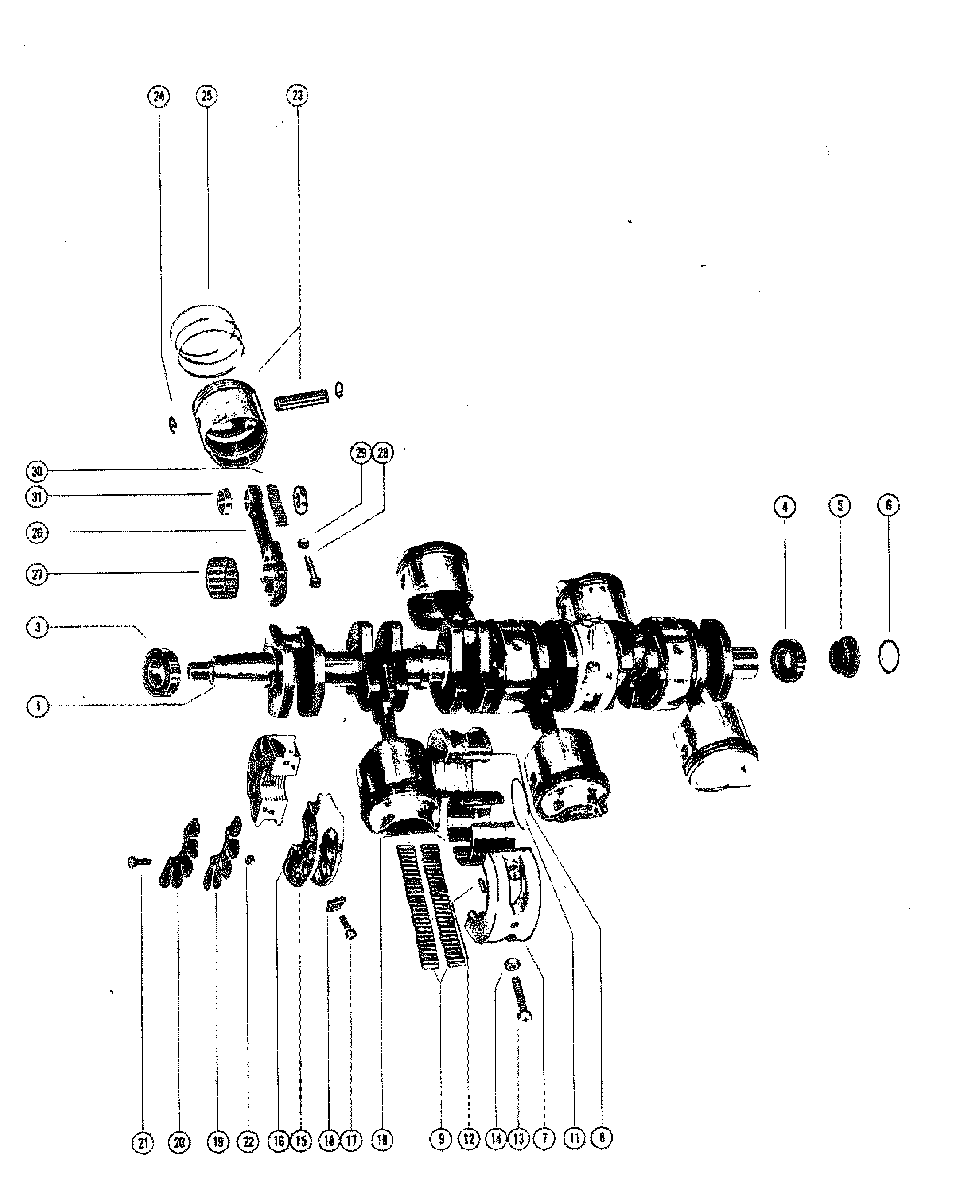

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 90 (6 CYL.) 5594657 THRU 6436122
-
№АртикулНазвание
-
1436-9072A1 CRANKSHAFT ASSEMLBYCRANKSHAFT ASSEMLBY
-
330-62567T BALL BEARING, UPPERBALL BEARING, UPPER
-
430-63742T BALL BEARING, LOWERBALL BEARING, LOWER
-
554196A6 CARRIER ASSEMBLY, "O" RINGCARRIER ASSEMBLY, "O" RING
-
665800 "O" RING, CARRIER"O" RING, CARRIER
-
7535-5397A4 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
817-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
929-714221 NEEDLE BEARING, OUTER RACENEEDLE BEARING, OUTER RACE
-
1026113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1153-26933 SNAP RING, OUTER RACESNAP RING, OUTER RACE
-
1217-47246 DOWEL PIN, STEPPEDDOWEL PIN, STEPPED
-
1310-22968 SCREW, CENTER MAIN BEARINGSCREW, CENTER MAIN BEARING
-
1411-20184 NUT, BEARING SCREWNUT, BEARING SCREW
-
15540-5266T5 MAIN BEARING ASSEMBLY, VALVE TYPEMAIN BEARING ASSEMBLY, VALVE TYPE
-
1617-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1710-45775 SCREW, MAIN BEARINGSCREW, MAIN BEARING
-
1811-45774 NUT, MAIN BEARING SCREWNUT, MAIN BEARING SCREW
-
1934-56007A1 REED SET, MATCHEDREED SET, MATCHED
-
2034-56008 REED STOP, REED VALVESREED STOP, REED VALVES
-
2110-62204 SCREW, REED STOPSCREW, REED STOP
-
2211-53153 NUT, REED STOP SCREWNUT, REED STOP SCREW
-
23774-9137A12 PISTON/PISTON PIN ASS'Y (STANDARD)PISTON/PISTON PIN ASS'Y (STANDARD)
-
23774-9137A13 PISTON/PISTON PIN ASS'Y (.015 OVERSIZE)PISTON/PISTON PIN ASS'Y (.015 OVERSIZE)
-
23774-9137A14 PISTON/PISTON PIN ASS'Y (.030 OVERSIZE)PISTON/PISTON PIN ASS'Y (.030 OVERSIZE)
-
2453-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2539-78816A12 PISTON RING (STANDARD)PISTON RING (STANDARD)
-
2539-78811A12 PISTON RING (.015 OVERSIZE)PISTON RING (.015 OVERSIZE)
-
2539-88392A12 PISTON RING (.030 OVERSIZE)PISTON RING (.030 OVERSIZE)
-
26624-8101A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2731-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
2810-54803 SCREW, CONNECTING ROD - WITH NUTSSCREW, CONNECTING ROD - WITH NUTS
-
2911-49091 NUT, CONNECTING ROD SCREW - WITH NUTSNUT, CONNECTING ROD SCREW - WITH NUTS
-
2810-91012 SCREW, CONNECTING ROD - W/O NUTSSCREW, CONNECTING ROD - W/O NUTS
-
3029-47270 NEEDLE BEARING, PISTON PINNEEDLE BEARING, PISTON PIN
-
3112-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
-27-85653A87 GASKET SETGASKET SET
