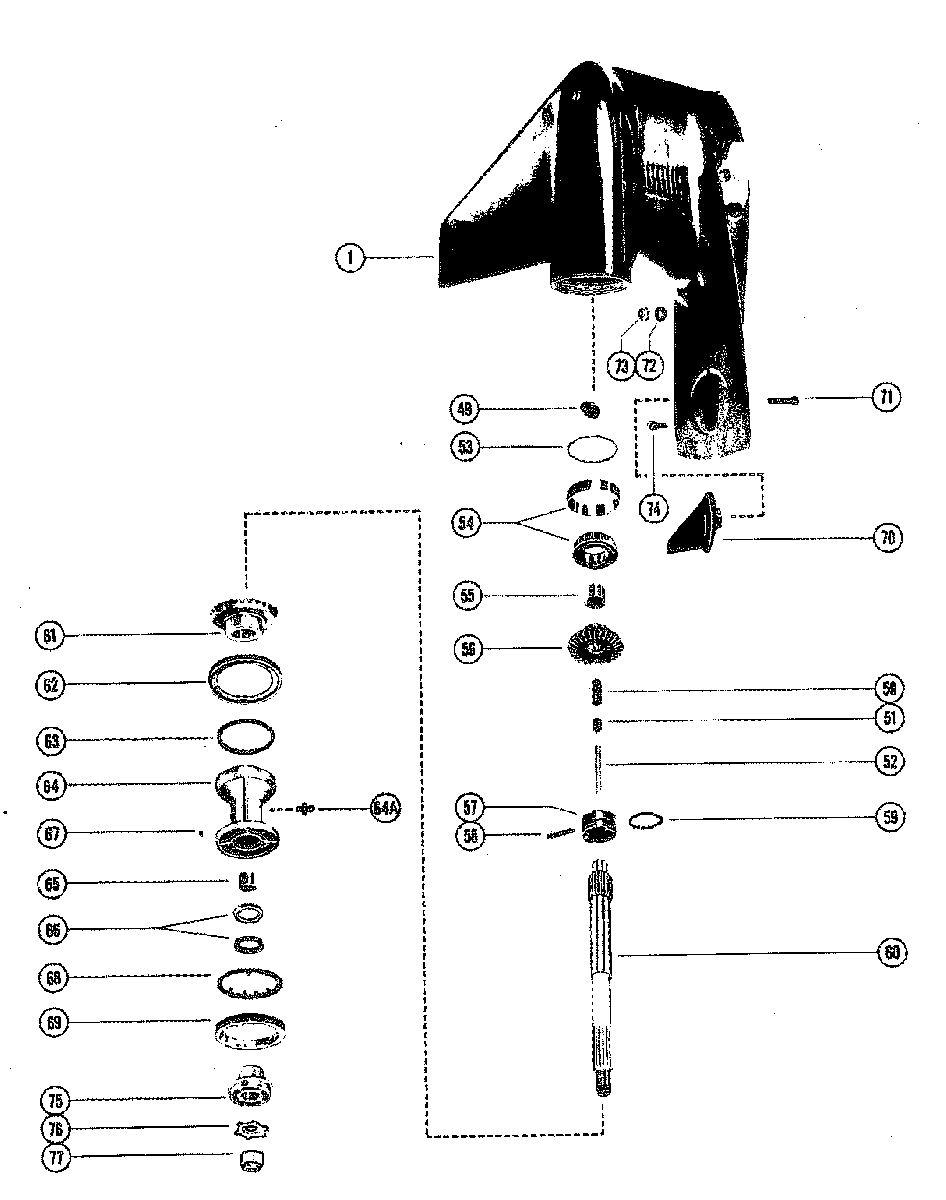

GEAR HOUSING (PROPELLER SHAFT) для Mercury - 90 (6 CYL.) 5594657 THRU 6436122
-
№АртикулНазвание
-
-1655-7333T24 GEAR HOUSING ASSEMBLY, COMPLETEGEAR HOUSING ASSEMBLY, COMPLETE
-
11655-7333T23 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
49760394 SHIFT CAMSHIFT CAM
-
5030625 CAM FOLLOWERCAM FOLLOWER
-
5130624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5224-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5315-30923A1 SHIM, BEARING OURTER RACE (.002-3-5-10)SHIM, BEARING OURTER RACE (.002-3-5-10)
-
5431-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5531-30895T ROLLER BEARING, FORWAR GEARROLLER BEARING, FORWAR GEAR
-
5643-68447T1 FORWARD GEARFORWARD GEAR
-
5752-822539T RATCHET, SLIDING GEARRATCHET, SLIDING GEAR
-
5817-8M0100263 CROSS PIN, RATCHET TO PROPELLER SHAFTCROSS PIN, RATCHET TO PROPELLER SHAFT
-
5924-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6044-93003 PROPELLER SHAFTPROPELLER SHAFT
-
6143-76250T REVERSE GEARREVERSE GEAR
-
6212-76358 WASHER, THRUST - BEARING CARRIERWASHER, THRUST - BEARING CARRIER
-
6325-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6441529T2 BEARING CARRIER ASS'Y (W/O GREASE FITTING)BEARING CARRIER ASS'Y (W/O GREASE FITTING)
-
6441529T2 BEARING CARRIER ASS'Y - WITH GREASE FITTINGBEARING CARRIER ASS'Y - WITH GREASE FITTING
-
64A22-98727 GREASE FITTING - WITH GREASE FITTINGGREASE FITTING - WITH GREASE FITTING
-
6531-30956T ROLLER BEARING, BEARING CARRIERROLLER BEARING, BEARING CARRIER
-
6626-76868 OIL SEAL (INSIDE)OIL SEAL (INSIDE)
-
6626-70081 OIL SEAL (OUTSIDE) - CUTTEROIL SEAL (OUTSIDE) - CUTTER
-
6728-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
6814-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
6952699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7097-31640Q4 TRIM TAB, GEAR HOUSINGTRIM TAB, GEAR HOUSING
-
7110-66024 SCREW, TRIM TAB TO GEAR HOUSING (1-3/4)SCREW, TRIM TAB TO GEAR HOUSING (1-3/4)
-
7212-45176 WASHER, DRIVE SHAFT HOUSING STUDSWASHER, DRIVE SHAFT HOUSING STUDS
-
7311-34933 NUT, DRIVE SHAFT HOUSING STUDSNUT, DRIVE SHAFT HOUSING STUDS
-
7410-65210 SCREW, GEAR HOUSINGSCREW, GEAR HOUSING
-
7513191Q01 THRUST HUBTHRUST HUB
-
7614-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
7711-52707Q1 PROPELLER NUTPROPELLER NUT
-
-27-85653A87 GASKET SETGASKET SET
