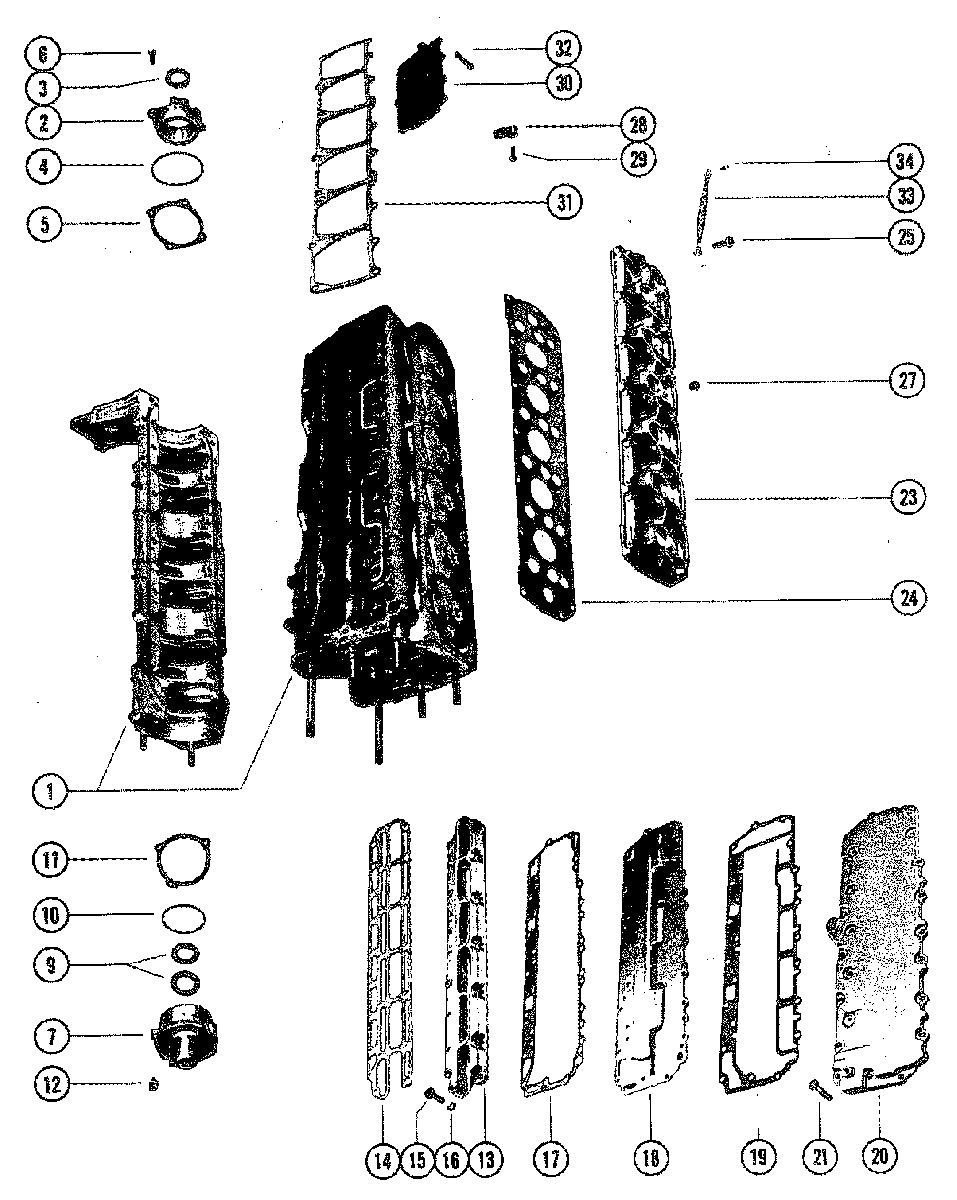

END CAPS, MANIFOLD AND EXHAUST COVERS для Mercury - 90 (6 CYL.) 5594657 THRU 6436122

  • №
    Артикул
    Название
  • 1
    852-8311A4 CYL. BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6026608 AND BELOW
    AUSTRALIA 8074512 AND BELOW
    CANADA 7185072 AND BELOW
    CYL. BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6026608 AND BELOW
    AUSTRALIA 8074512 AND BELOW
    CANADA 7185072 AND BELOW
  • 1
    852-8311A4 CYL. BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    CYL. BLOCK/CRANKCASE ASS'Y
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • 2
    1161-7616A2 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 3
    26-41953 OIL SEAL, END CAP
    OIL SEAL, END CAP
  • 4
    25-47254 "O" RING
    "O" RING
  • 5
    15-73644A1 SHIM, END CAP (.006-10)
    SHIM, END CAP (.006-10)
  • 6
    10-812618 SCREW, END CAP (1")
    SCREW, END CAP (1")
  • 7
    1148-5410T1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 9
    26-41953 OIL SEAL, END CAP
    OIL SEAL, END CAP
  • 10
    25-32546 "O" RING, END CAP
    "O" RING, END CAP
  • 11
    15-20085A1 SHIM, END CAP (.005-10)
    SHIM, END CAP (.005-10)
  • 12
    10-30225 SCREW, END CAP (1")
    SCREW, END CAP (1")
  • 13
    71808 COVER, WATER JACKET
    COVER, WATER JACKET
  • 14
    27-721421 GASKET, WATER JACKET COVER
    GASKET, WATER JACKET COVER
  • 15
    10-53167T SCREW, WATER JACKET COVER (7/8")
    SCREW, WATER JACKET COVER (7/8")
  • 16
    12-8M0042642 WASHER, WATER JACKET COVER SCREW
    WASHER, WATER JACKET COVER SCREW
  • 17
    27-854952 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 18
    757781 BAFFLE PLATE, EXHAUST MANIFOLD
    BAFFLE PLATE, EXHAUST MANIFOLD
  • 19
    27-854972 GASKET
    BAFFLE PLATE TO EXHAUST MANIFOLD COVER
    GASKET
    BAFFLE PLATE TO EXHAUST MANIFOLD COVER
  • 20
    99896A1 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 21
    10-53576 SCREW, MANIFOLD COVER
    SCREW, MANIFOLD COVER
  • 23
    1023-8368A1 COVER, CYLINDER BLOCK
    UNITED STATES 6026608 AND BELOW
    AUSTRALIA 8074512 AND BELOW
    CANADA 7185072 AND BELOW
    COVER, CYLINDER BLOCK
    UNITED STATES 6026608 AND BELOW
    AUSTRALIA 8074512 AND BELOW
    CANADA 7185072 AND BELOW
  • 24
    27-981853 GASKET, CYLINDER COVER
    UNITED STATES 6026608 AND BELOW
    AUSTRALIA 8074512 AND BELOW
    CANADA 7185072 AND BELOW
    GASKET, CYLINDER COVER
    UNITED STATES 6026608 AND BELOW
    AUSTRALIA 8074512 AND BELOW
    CANADA 7185072 AND BELOW
  • 23
    1023-8368A1 COVER, CYLINDER BLOCK
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    COVER, CYLINDER BLOCK
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • 24
    27-981853 GASKET, CYLINDER BLOCK
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
    GASKET, CYLINDER BLOCK
    UNITED STATES 6026609 AND UP
    AUSTRALIA 8074513 AND UP
    CANADA 7185073 AND UP
  • 25
    10-76630 SCREW, COVER (1")
    SCREW, COVER (1")
  • 27
    22-68307 PIPE PLUG, CYLINDER BLOCK COVER
    PIPE PLUG, CYLINDER BLOCK COVER
  • 28
    37440 BRACKET, MOUNT SUPPORT
    BRACKET, MOUNT SUPPORT
  • 29
    10-35386 SCREW, BRACKET TO CYLINDER BLOCK (1")
    SCREW, BRACKET TO CYLINDER BLOCK (1")
  • 30
    87872 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 31
    27-856730 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 32
    10-28636 SCREW, TRANSFER PORT COVER (3/4")
    SCREW, TRANSFER PORT COVER (3/4")
  • 33
    46933A3 GROUND STRAP ASSEMBLY
    CYLINDER BLOCK COVER
    GROUND STRAP ASSEMBLY
    CYLINDER BLOCK COVER
  • 34
    10-62568 SCREW, GROUND STRAP (3/8")
    SCREW, GROUND STRAP (3/8")
  • -
    27-85653A87 GASKET SET
    GASKET SET
