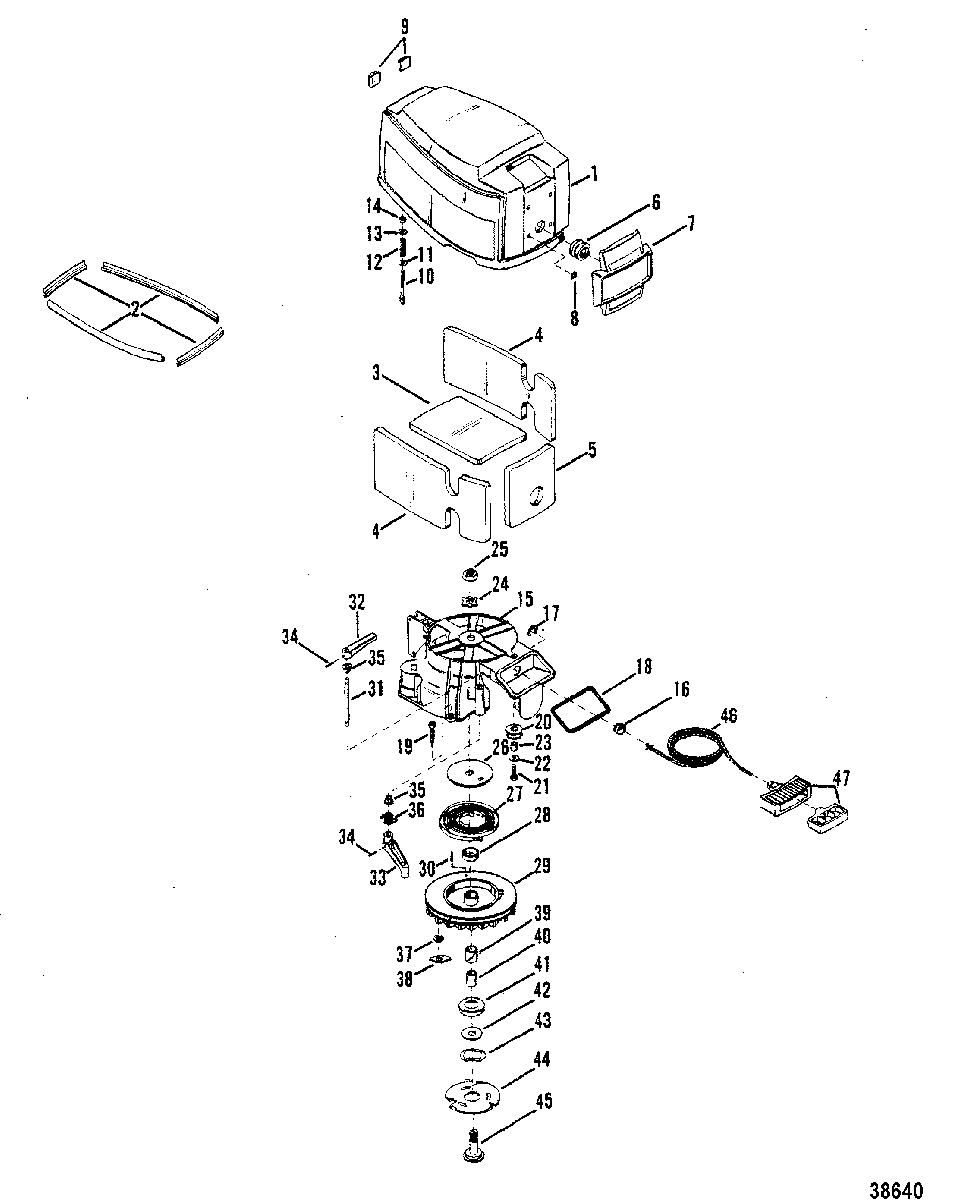

TOP COWL AND STARTER ASSEMBLY для Mercury - 7.5 8057545 & Up

  • №
    Артикул
    Название
  • 1
    2160-7264A10 TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 2
    654893 SEAL, TOP COWL (16-1/2")
    SEAL, TOP COWL (16-1/2")
  • 3
    66942 BLANKET, SOUND - TOP EARLY STYLE ENGINE
    BLANKET, SOUND - TOP EARLY STYLE ENGINE
  • 4
    85544 BLANKET, SOUND - SIDE EARLY STYLE ENGINE
    BLANKET, SOUND - SIDE EARLY STYLE ENGINE
  • 5
    69522 BLANKET, SOUND - FRONT EARLY STYLE ENGINE
    BLANKET, SOUND - FRONT EARLY STYLE ENGINE
  • 6
    25-39086 GROMMET, COWL LATCH - TOP COWL
    GROMMET, COWL LATCH - TOP COWL
  • 7
    71502 COVER, FRONT
    COVER, FRONT
  • 8
    11-65517 NUT, SPEED - FRONT COVER TO TOP COWL
    NUT, SPEED - FRONT COVER TO TOP COWL
  • 9
    69346 BUMPER, COWL - REAR
    BUMPER, COWL - REAR
  • 10
    17-72856 PIN, TOP COWL CATCH
    PIN, TOP COWL CATCH
  • 11
    12-98500 WASHER, TOP COWL CATCH (LOWER)
    WASHER, TOP COWL CATCH (LOWER)
  • 12
    24-79351 SPRING, COMPRESSION -- COWL CATCH
    SPRING, COMPRESSION -- COWL CATCH
  • 13
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel, TOP COWL CATCH (UPPER)
    WASHER, (.265 x .750 x .048) Stainless Steel, TOP COWL CATCH (UPPER)
  • 14
    11-20184 NUT, (1/4-28X7/32), COWL CATCH TO TOP COWL
    NUT, (1/4-28X7/32), COWL CATCH TO TOP COWL
  • 15
    91871A1 HOUSING ASSEMBLY, Starter
    HOUSING ASSEMBLY, Starter
  • 16
    77859A1 ROPE GUIDE (ALUMINUM)
    ROPE GUIDE (ALUMINUM)
  • 16
    58657 ROPE GUIDE (PLASTIC)
    ROPE GUIDE (PLASTIC)
  • 17
    77860 RING, RETAINING - ROPE GUIDE (ALUMINUM)
    RING, RETAINING - ROPE GUIDE (ALUMINUM)
  • 17
    53-72168 RING, RETAINING - ROPE GUIDE (PLASTIC)
    RING, RETAINING - ROPE GUIDE (PLASTIC)
  • 18
    654991 SEAL, STARTER HOUSING TO TOP COWL
    SEAL, STARTER HOUSING TO TOP COWL
  • 19
    10-72862 SCREW, (.250-28 x 1.00), STARTER HOUSING TO CRANKCASE
    SCREW, (.250-28 x 1.00), STARTER HOUSING TO CRANKCASE
  • 20
    93695 PULLEY, STARTER CABLE
    PULLEY, STARTER CABLE
  • 21
    10-28789 SCREW, (.190-24 x .750), CABLE PULLERY
    SCREW, (.190-24 x .750), CABLE PULLERY
  • 22
    12-22887 WASHER, CABLE PULLEY SCREW
    WASHER, CABLE PULLEY SCREW
  • 23
    23-309772 SPACER, CABLE PULLEY
    SPACER, CABLE PULLEY
  • 24
    14-20165 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 25
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 26
    20155 RETAINER, STARTER SPRING
    RETAINER, STARTER SPRING
  • 27
    24-29340T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 28
    23-28912 BUSHING, STARTER SPRING GUIDE
    BUSHING, STARTER SPRING GUIDE
  • 29
    50-93696A2 SHEAVE ASSEMBLY, Starter
    SHEAVE ASSEMBLY, Starter
  • 30
    17-22896 PIN, RETAINER - STARTER CABLE
    PIN, RETAINER - STARTER CABLE
  • 31
    74359 SHAFT, INTERLOCK
    SHAFT, INTERLOCK
  • 32
    74353 LEVER, LOCK
    LEVER, LOCK
  • 33
    74351 LEVER, FOLLOWER
    LEVER, FOLLOWER
  • 34
    17-38489 PIN, Roll, INTERLOCK SHAFT
    PIN, Roll, INTERLOCK SHAFT
  • 35
    23-26856 BUSHING, NYLON - INTERLOCK SHAFT
    BUSHING, NYLON - INTERLOCK SHAFT
  • 36
    24-74347 SPRING, TORSION - INTERLOCK SHAFT
    SPRING, TORSION - INTERLOCK SHAFT
  • 37
    13-36206 WAVE WASHER, STARTER PAWL
    WAVE WASHER, STARTER PAWL
  • 38
    30596 PAWL, STARTER
    PAWL, STARTER
  • 39
    23-28919 BUSHING, NYLON - SHEAVE SHAFT SPACER
    BUSHING, NYLON - SHEAVE SHAFT SPACER
  • 40
    23-61005 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 41
    26179 RETAINER, SHEAVE SHAFT TO STARTER SHEAVE
    RETAINER, SHEAVE SHAFT TO STARTER SHEAVE
  • 42
    12-35559 WASHER, SHEAVE SHAFT RETAINER
    WASHER, SHEAVE SHAFT RETAINER
  • 43
    13-20160 WAVE WASHER, RETAINER TENSION
    WAVE WASHER, RETAINER TENSION
  • 44
    30595 PLATE, RETAINER - STARTER PAWL
    PLATE, RETAINER - STARTER PAWL
  • 45
    35558 SHAFT, Sheave
    SHAFT, Sheave
  • 46
    50-12066Q10 CABLE ASSEMBLY, Starter
    CABLE ASSEMBLY, Starter
  • 47
    79470A1 RETAINER KIT, Rope
    RETAINER KIT, Rope
