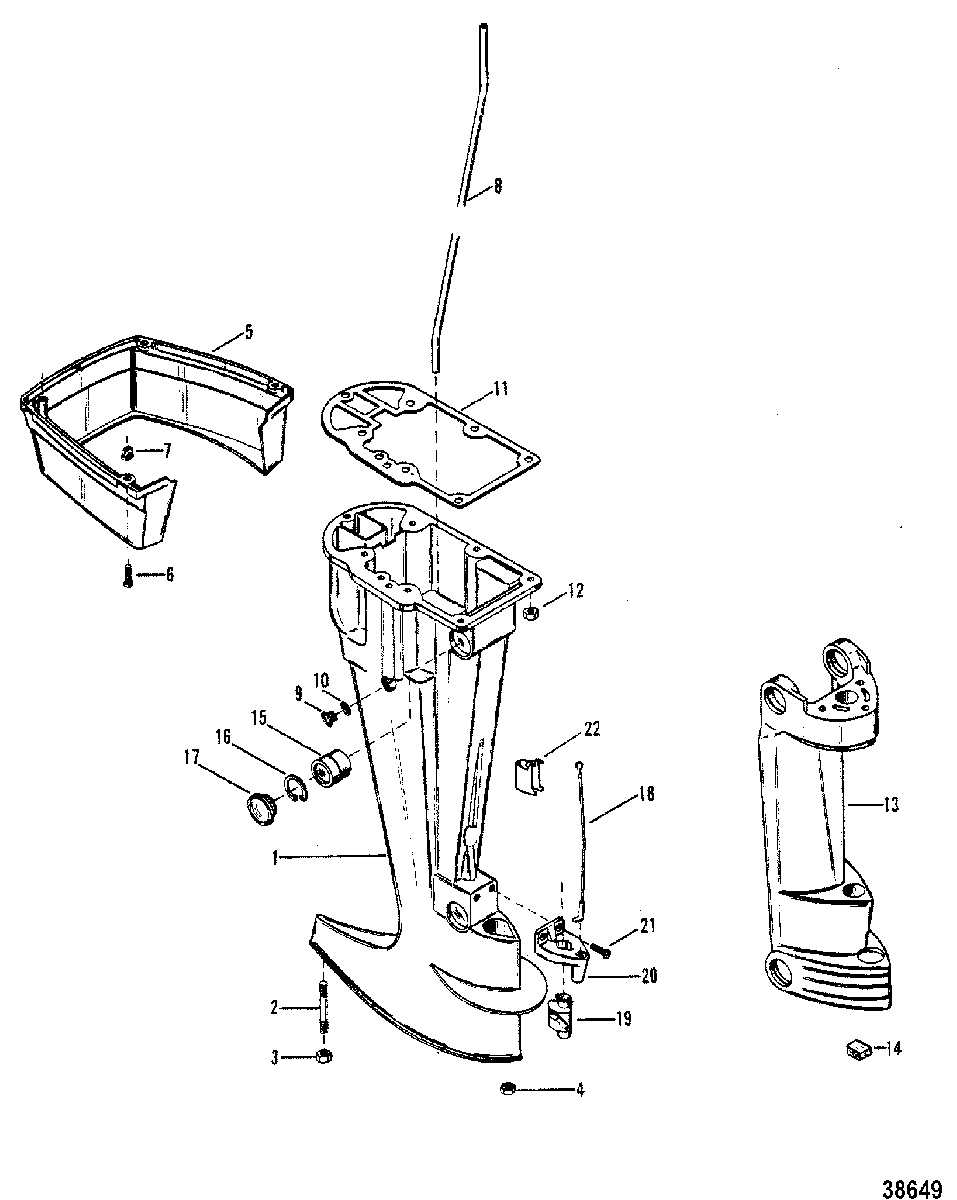

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 7.5 8057545 & Up
-
№АртикулНазвание
-
11556-8451A1 HOUSING ASSEMBLY, Driveshaft
(SHORT SHAFT)HOUSING ASSEMBLY, Driveshaft
(SHORT SHAFT) -
11558-8453A1 HOUSING ASSEMBLY, Driveshaft
(LONG SHAFT)HOUSING ASSEMBLY, Driveshaft
(LONG SHAFT) -
216-66373 STUDSTUD
-
311-82670911 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
-
411-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
596515F1 COVER, TRIMCOVER, TRIM
-
610-69013 SCREW, (#10-16 x .880), TRIM COVERSCREW, (#10-16 x .880), TRIM COVER
-
725-8M0079730 GROMMET, TRIM COVER SCREWGROMMET, TRIM COVER SCREW
-
832-39061 TUBE, WATER
(SHORT SHAFT)TUBE, WATER
(SHORT SHAFT) -
832-39062 TUBE, WATER
(LONG SHAFT)TUBE, WATER
(LONG SHAFT) -
910-79953Q04 SCREW, (.375-16 x .250), FLUSH - DRIVE SHAFT HOUSINGSCREW, (.375-16 x .250), FLUSH - DRIVE SHAFT HOUSING
-
1012-191833 WASHER, SEALING - FLUSH SCREWWASHER, SEALING - FLUSH SCREW
-
1127-39050 GASKETGASKET
-
1211-24652 NUT, (.250-28)NUT, (.250-28)
-
131559-8448A2 SADDLE ASSEMBLYSADDLE ASSEMBLY
-
1464076 BUMPER, THRUST - SADDLEBUMPER, THRUST - SADDLE
-
1579896A1 MOUNT, LOWER AND UPPER
(SHORT SHAFT)MOUNT, LOWER AND UPPER
(SHORT SHAFT) -
1579896A1 MOUNT, UPPER
(LONG SHAFT)MOUNT, UPPER
(LONG SHAFT) -
1579895A1 MOUNT, LOWER
(LONG SHAFT)MOUNT, LOWER
(LONG SHAFT) -
1653-26406 RING, RETAINING - UPPER AND LOWER MOUNTRING, RETAINING - UPPER AND LOWER MOUNT
-
1779907 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
1871057 LINK ROD, REVERSE LOCKLINK ROD, REVERSE LOCK
-
1965216 CAM, REVERSE LOCKCAM, REVERSE LOCK
-
2072007 RETAINER, REVERSE LOCK CAMRETAINER, REVERSE LOCK CAM
-
2110-65414 SCREW, CAM RETAINER (3/4")SCREW, CAM RETAINER (3/4")
-
2293145 BLOCK, DRIVE SHAFT
(LONG SHAFT)BLOCK, DRIVE SHAFT
(LONG SHAFT) -
-27-89014A80 GASKET SETGASKET SET
