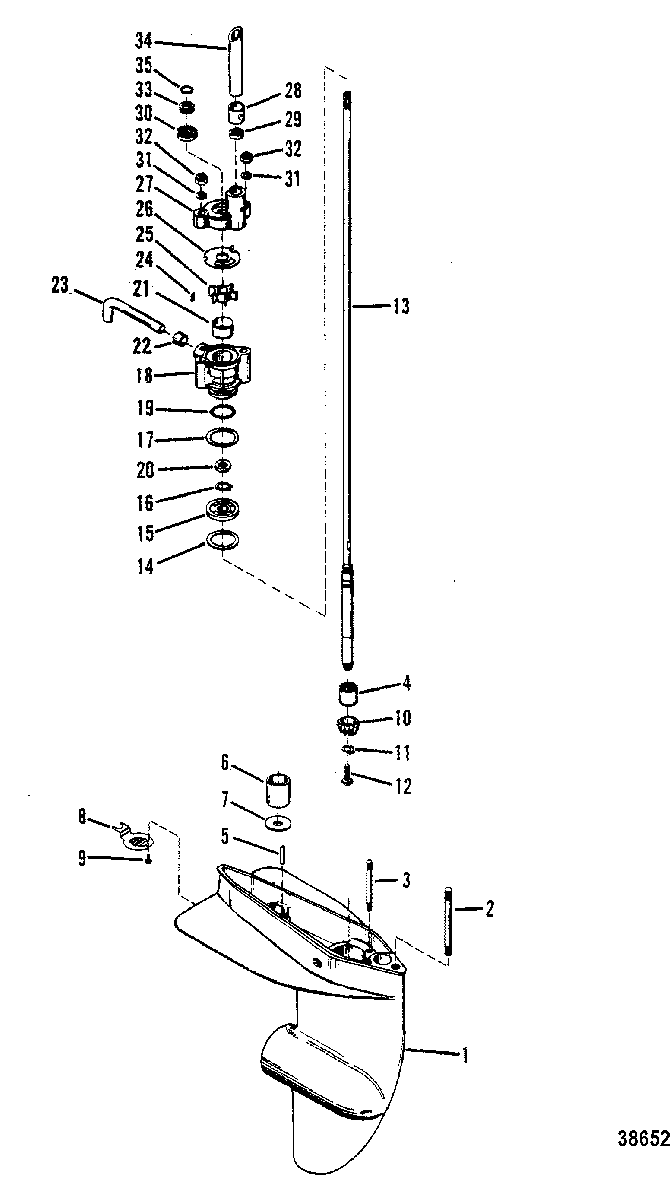

GEAR HOUSING(DRIVESHAFT) для Mercury - 7.5 8057545 & Up
-
№АртикулНазвание
-
-1630-7360A12 GEAR HOUSING ASSEMBLY
(SHORT) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & BelowGEAR HOUSING ASSEMBLY
(SHORT) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below -
-1630-7360A13 GEAR HOUSING ASSEMBLY
(LONG) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & BelowGEAR HOUSING ASSEMBLY
(LONG) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below -
-1630-7360A29 GEAR HOUSING ASSEMBLY
(SHORT) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & UpGEAR HOUSING ASSEMBLY
(SHORT) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up -
-1630-7360A30 GEAR HOUSING ASSEMBLY
(LONG) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & UpGEAR HOUSING ASSEMBLY
(LONG) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up -
11630-7360A11 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
216-58138 STUD, GEAR HOUSING (3-7/16")STUD, GEAR HOUSING (3-7/16")
-
316-58136 STUD, WATER PUMP (2-3/4")STUD, WATER PUMP (2-3/4")
-
431-22756 BEARING, RollerBEARING, Roller
-
517-20032 PIN, DowelPIN, Dowel
-
626-33613 SEAL, RUBBERSEAL, RUBBER
-
723-86215 BEARING, NYLONBEARING, NYLON
-
835-33425 SCREEN, INTAKESCREEN, INTAKE
-
910-28642 SCREW, (#2 x 0.25), INTAKE SCREENSCREW, (#2 x 0.25), INTAKE SCREEN
-
1043-98696 GEAR, PinionGEAR, Pinion
-
1114-30377 TAB WASHER, PINION GEAR SCREWTAB WASHER, PINION GEAR SCREW
-
1210-30376 SCREW, (#12-28 x .750), PINION GEAR TO DRIVE SHAFTSCREW, (#12-28 x .750), PINION GEAR TO DRIVE SHAFT
-
1345-75034 DRIVESHAFT
(SHORT) USE WITH 47-89981 IMPELLER SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & BelowDRIVESHAFT
(SHORT) USE WITH 47-89981 IMPELLER SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below -
1345-75033 DRIVESHAFT
(LONG) USE WITH 47-89981 IMPELLER SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & BelowDRIVESHAFT
(LONG) USE WITH 47-89981 IMPELLER SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below -
1345-95873A1 DRIVESHAFT
(SHORT) USE WITH 47-89980 IMPELLER SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & UpDRIVESHAFT
(SHORT) USE WITH 47-89980 IMPELLER SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up -
1345-95874A1 DRIVESHAFT
(LONG) USE WITH 47-89980 IMPELLER SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & UpDRIVESHAFT
(LONG) USE WITH 47-89980 IMPELLER SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up -
1415-30527A1 SHIM ASSEMBLY, BALL BEARING (.002-3-5-10)SHIM ASSEMBLY, BALL BEARING (.002-3-5-10)
-
1530-70944 BEARING, Ball, DRIVE SHAFTBEARING, Ball, DRIVE SHAFT
-
1653-30523 RING, Retaining, BALL BEARING TO DRIVE SHAFTRING, Retaining, BALL BEARING TO DRIVE SHAFT
-
1715-30527A1 SHIM ASSEMBLY, BALL BEARING (.002-2-5-10)SHIM ASSEMBLY, BALL BEARING (.002-2-5-10)
-
1846-70941T01 HOUSING ASSEMBLY, Water Pump
(USE WITH 47-89981 IMPELLER)HOUSING ASSEMBLY, Water Pump
(USE WITH 47-89981 IMPELLER) -
1846-92970A1 HOUSING ASSEMBLY, Water Pump
(USE WITH 47-89980 IMPELLER)HOUSING ASSEMBLY, Water Pump
(USE WITH 47-89980 IMPELLER) -
1925-29439 O-RINGO-RING
-
2026-30900T SEAL, Oil
(USE WITH 47-89981 IMPELLER)SEAL, Oil
(USE WITH 47-89981 IMPELLER) -
2026-897153 SEAL, Oil
(USE WITH 47-89980 IMPELLER)SEAL, Oil
(USE WITH 47-89980 IMPELLER) -
2170977T INSERTINSERT
-
2226-33613 SEAL, WATER INTAKE TUBESEAL, WATER INTAKE TUBE
-
2332-34293 TUBE, WATER INTAKETUBE, WATER INTAKE
-
2428-8M0032835 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
2547-89981 IMPELLER
(MOLDED 47-89981 - .456 I.D.)IMPELLER
(MOLDED 47-89981 - .456 I.D.) -
2547-89980 IMPELLER
(MOLDED 47-89980 - .438 I.D.)IMPELLER
(MOLDED 47-89980 - .438 I.D.) -
2646895 FACE PLATE, WATER PUMPFACE PLATE, WATER PUMP
-
2793224A1 COVER ASSEMBLY, Water PumpCOVER ASSEMBLY, Water Pump
-
2826-36558 SEAL, WATER PUMP COVERSEAL, WATER PUMP COVER
-
2923-13127 BEARING, NYLON - WATER PUMP COVERBEARING, NYLON - WATER PUMP COVER
-
3026-30913 SEAL, Oil, WATER PUMP COVERSEAL, Oil, WATER PUMP COVER
-
3112-20533 WASHER, WATER PUMP STUDSWASHER, WATER PUMP STUDS
-
3211-8267089 NUT, (.250-28), WATER PUMP STUDSNUT, (.250-28), WATER PUMP STUDS
-
3325-30526 RING, RUBBERRING, RUBBER
-
3423-31792T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3525-62704 O-RING, (.362 x .103), DRIVE SHAFT
SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & UpO-RING, (.362 x .103), DRIVE SHAFT
SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up -
-27-89014A80 GASKET SETGASKET SET
-
-26-77066A1 SEAL KIT, Water PumpSEAL KIT, Water Pump
-
-46-70941A3 REPAIR KIT, Water Pump
(Use with 47-89981 Impeller)REPAIR KIT, Water Pump
(Use with 47-89981 Impeller) -
-46-92970A5 REPAIR KIT, Water Pump
(Use with 47-89980 Impeller)REPAIR KIT, Water Pump
(Use with 47-89980 Impeller)
