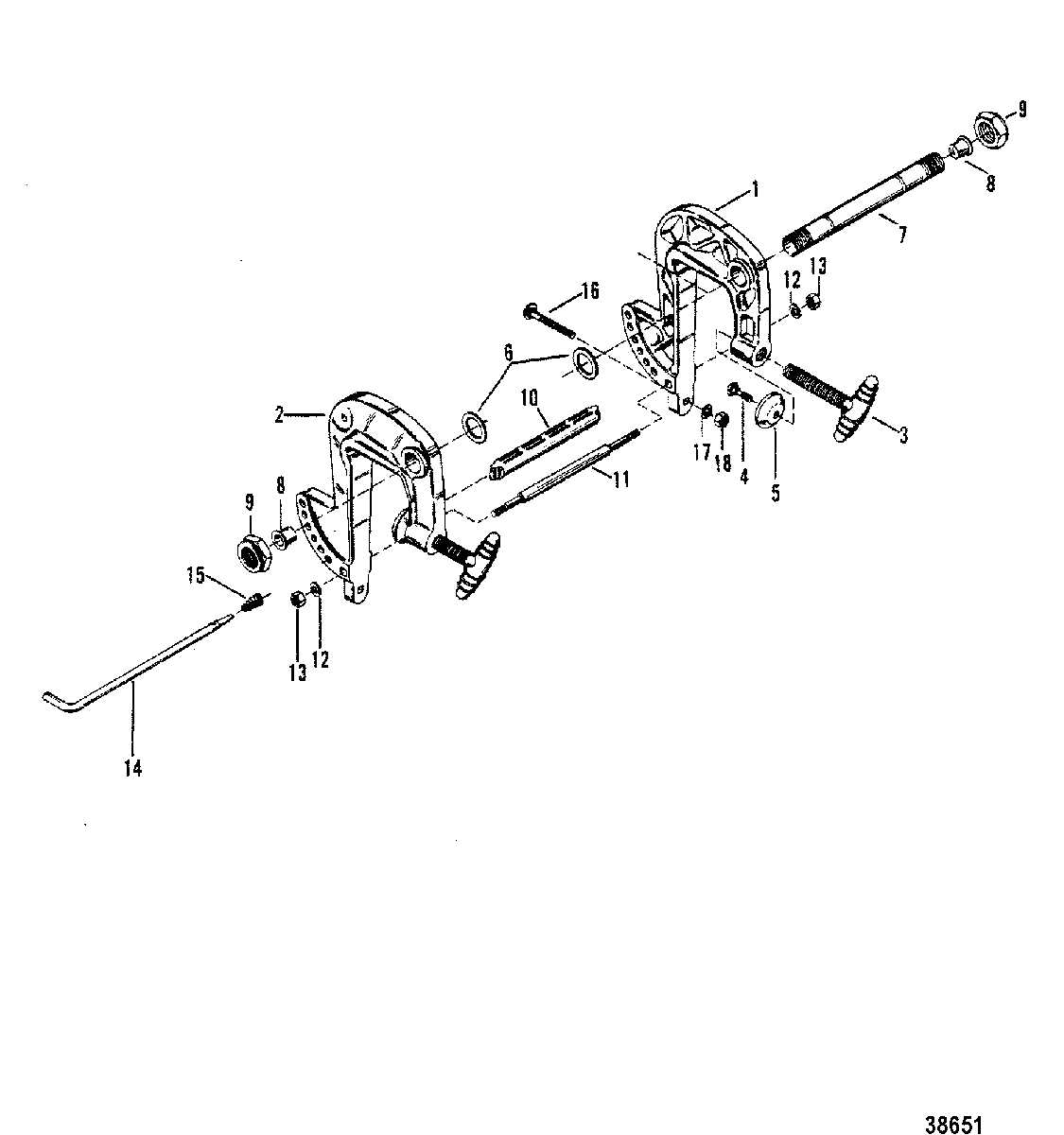

CLAMP BRACKET ASSEMBLY для Mercury - 7.5 8057545 & Up

  • №
    Артикул
    Название
  • 1
    1468-5570A3 CLAMP BRACKET ASSEMBLY (PORT)
    CLAMP BRACKET ASSEMBLY (PORT)
  • 2
    1467-5571A3 CLAMP BRACKET ASSEMBLY (STARBOARD)
    CLAMP BRACKET ASSEMBLY (STARBOARD)
  • 3
    10-77190A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 4
    10-768042 SCREW, THUMB SCREW
    SCREW, THUMB SCREW
  • 5
    12-818884 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 6
    12-71421 WASHER, Nylon, TILT TUBE - CLAMP TO SWIVEL BRACKET
    WASHER, Nylon, TILT TUBE - CLAMP TO SWIVEL BRACKET
  • 7
    96962 TILT TUBE, CLAMP TO SWIVEL BRACKET
    TILT TUBE, CLAMP TO SWIVEL BRACKET
  • 8
    19-39333 PLUG, TILT TUBE
    PLUG, TILT TUBE
  • 9
    11-93164 NUT, (.875), TILT TUBE FASTENING
    NUT, (.875), TILT TUBE FASTENING
  • 10
    71420 HANDLE, CARRYING
    HANDLE, CARRYING
  • 11
    16-71417 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 12
    13-26992 LOCKWASHER, (.250) Stainless Steel, CLAMP BRACKET STUD
    LOCKWASHER, (.250) Stainless Steel, CLAMP BRACKET STUD
  • 13
    11-29598 NUT, (.250-28) Stainless Steel, CLAMP BRACKET STUD
    NUT, (.250-28) Stainless Steel, CLAMP BRACKET STUD
  • 14
    17-71418A2 PIN ASSEMBLY, Tilt Lock
    PIN ASSEMBLY, Tilt Lock
  • 15
    24-62143 SPRING, TILT LOCK PIN
    SPRING, TILT LOCK PIN
  • 16
    10-67982 BOLT, CLAMP BRACKET TO BOAT
    BOLT, CLAMP BRACKET TO BOAT
  • 17
    12-67983 WASHER, CLAMP BRACKET SCREW
    WASHER, CLAMP BRACKET SCREW
  • 18
    11-8267098 NUT, (.250-20), CLAMP BRACKET SCREW
    NUT, (.250-20), CLAMP BRACKET SCREW
