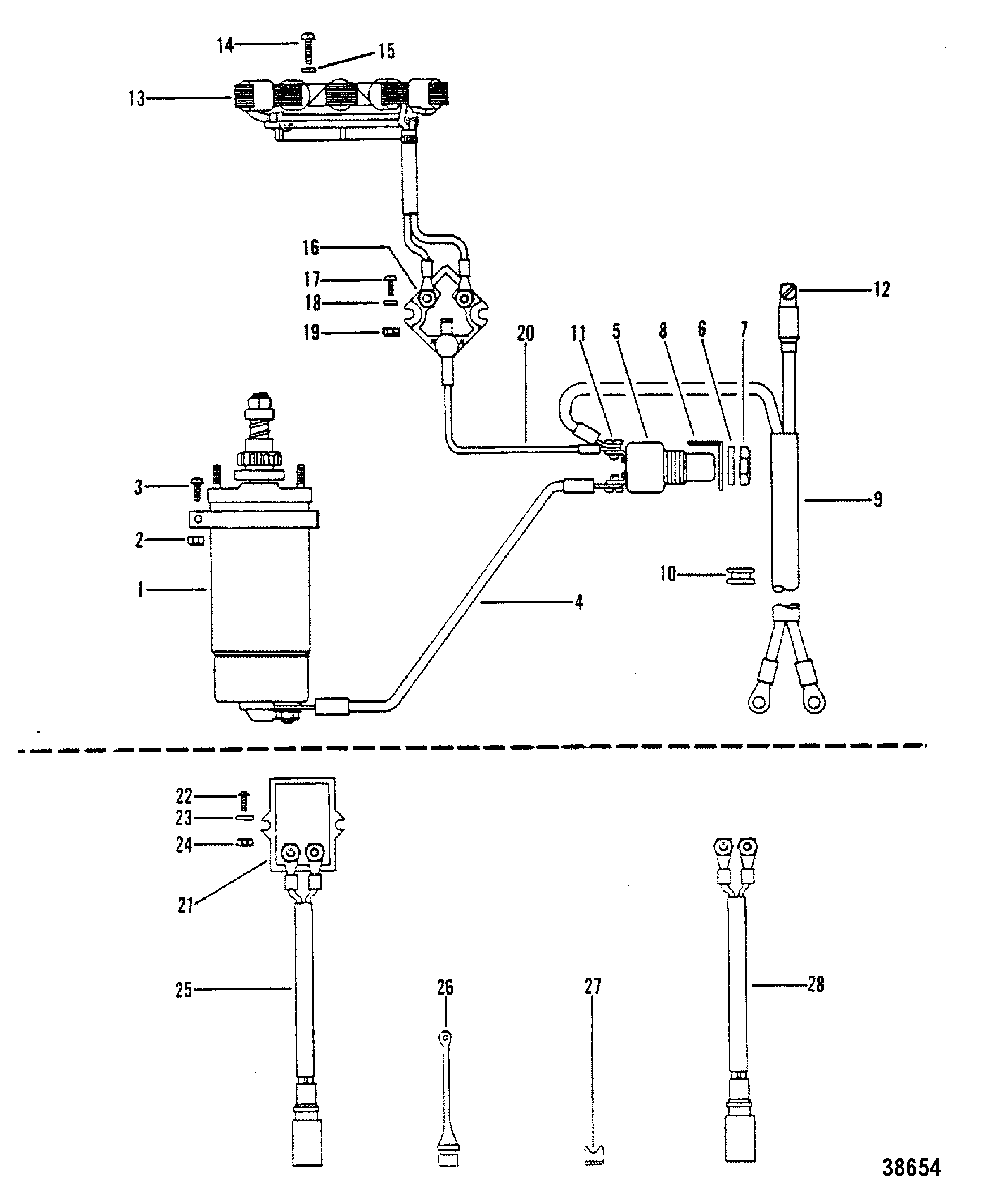

ELECTRIC COMPONENTS для Mercury - 7.5 8057545 & Up

  • №
    Артикул
    Название
  • 1
    50-78011 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    10-55511 SCREW, (.312-18 x 1.500)
    SCREW, (.312-18 x 1.500)
  • 3
    13-26993 LOCKWASHER, (.312), STARTER MOTOR SCREW
    LOCKWASHER, (.312), STARTER MOTOR SCREW
  • 4
    84-76741A1 WIRE ASSEMBLY, STARTING SWITCH (YELLOW)
    WIRE ASSEMBLY, STARTING SWITCH (YELLOW)
  • 5
    87-73883 SWITCH ASSEMBLY, Starting
    SWITCH ASSEMBLY, Starting
  • 6
    12-30516 WASHER, STARTING SWITCH
    WASHER, STARTING SWITCH
  • 7
    11-74394 NUT, STARTING SWITCH
    NUT, STARTING SWITCH
  • 8
    74515 PROTECTOR, STARTING SWITCH
    PROTECTOR, STARTING SWITCH
  • 9
    84-72535A4 CABLE ASSEMBLY, BATTERY
    CABLE ASSEMBLY, BATTERY
  • 10
    25-86361 GROMMET, BATTERY CABLE
    GROMMET, BATTERY CABLE
  • 11
    10-45742 SCREW, (.190-32 x .312), BATTERY CABLE ATTACHING
    SCREW, (.190-32 x .312), BATTERY CABLE ATTACHING
  • 12
    10-98253 SCREW, (.250-20 x .500), BATTERY CABLE ATTACHING
    SCREW, (.250-20 x .500), BATTERY CABLE ATTACHING
  • 13
    74367A15 LIGHTING STATOR ASSEMBLY
    LIGHTING STATOR ASSEMBLY
  • 14
    10-73696 SCREW, LIGHTING STATOR ATTACHING (1-5/8")
    SCREW, LIGHTING STATOR ATTACHING (1-5/8")
  • 15
    13-26996 LOCKWASHER, (#10) Stainless Steel, LIGHTING STATOR SCREW
    LOCKWASHER, (#10) Stainless Steel, LIGHTING STATOR SCREW
  • 16
    8M0058226 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 17
    10-48408 SCREW, (#10-16 x .500), RECTIFIER
    SCREW, (#10-16 x .500), RECTIFIER
  • 18
    23-62769 SPACER, RECTIFIER SCREW
    SPACER, RECTIFIER SCREW
  • 19
    11-45076 NUT, (#10-32) Brass, RECTIFIER TERMINAL
    NUT, (#10-32) Brass, RECTIFIER TERMINAL
  • 20
    84-61393A9 WIRE ASSEMBLY
    WIRE ASSEMBLY
  • 21
    95845T REGULATOR, Voltage
    BELGIUM
    REGULATOR, Voltage
    BELGIUM
  • 22
    10-92799 SCREW, (#10-16 x 1.12)
    BELGIUM
    SCREW, (#10-16 x 1.12)
    BELGIUM
  • 23
    23-62769 SPACER, VOLTAGE REGULATOR SCREW
    BELGIUM
    SPACER, VOLTAGE REGULATOR SCREW
    BELGIUM
  • 24
    11-45076 NUT, (#10-32) Brass, VOLTAGE REGULATOR TERMINAL
    BELGIUM
    NUT, (#10-32) Brass, VOLTAGE REGULATOR TERMINAL
    BELGIUM
  • 25
    84-74725A2 HARNESS ASSEMBLY (BLACK/RED)
    BELGIUM
    HARNESS ASSEMBLY (BLACK/RED)
    BELGIUM
  • 26
    71663 PLUG, HARNESS
    BELGIUM
    PLUG, HARNESS
    BELGIUM
  • 27
    74361 PLUG, HARNESS TO BOTTOM COWL
    BELGIUM
    PLUG, HARNESS TO BOTTOM COWL
    BELGIUM
  • 28
    84-65017A4 HARNESS ASSEMBLY, LIGHTING (EXTERNAL)
    BELGIUM
    HARNESS ASSEMBLY, LIGHTING (EXTERNAL)
    BELGIUM
  • 13
    74367A15 LIGHTING STATOR ASSEMBLY
    BELGIUM
    LIGHTING STATOR ASSEMBLY
    BELGIUM
