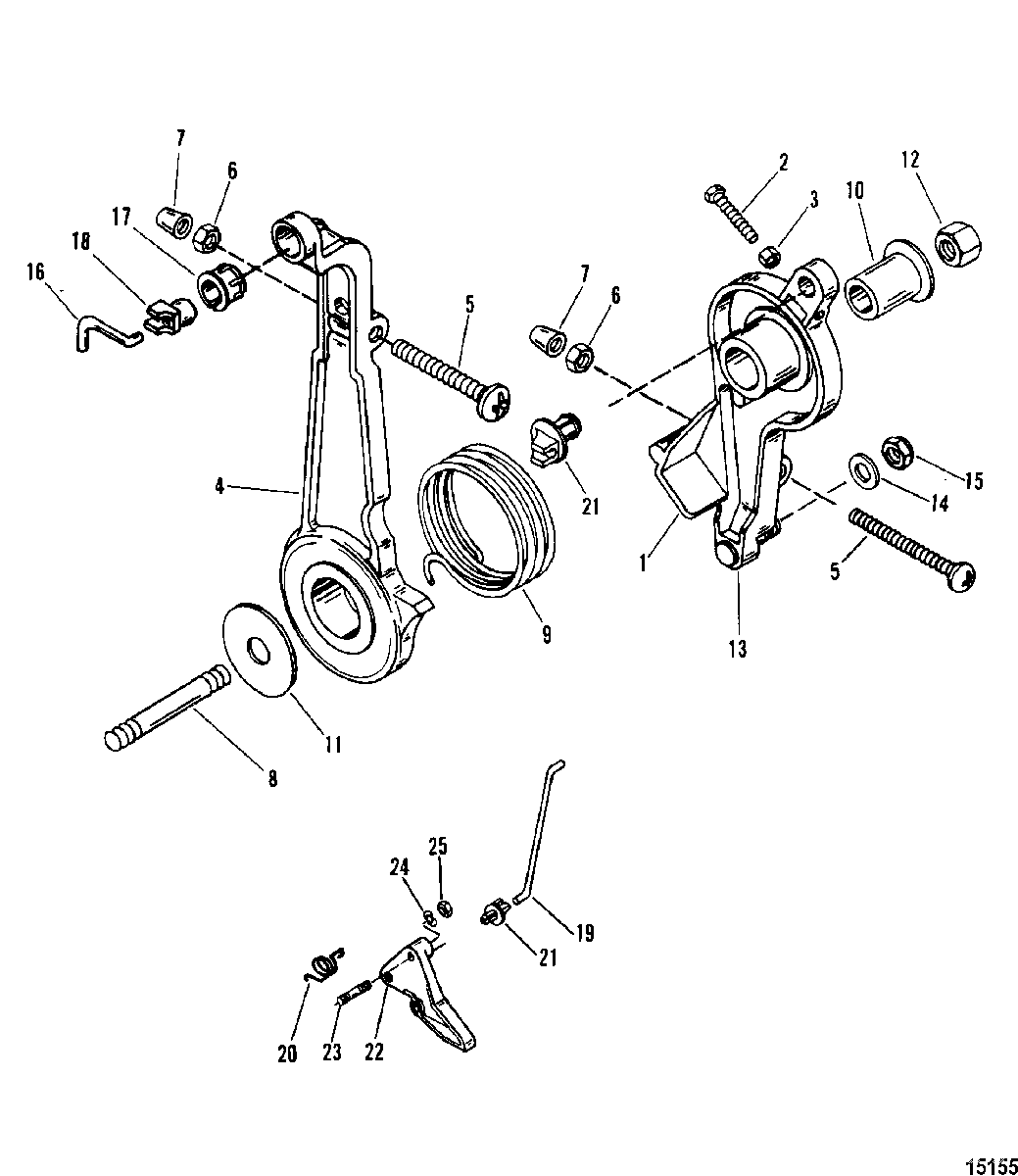

Throttle Lever And Linkage для Mercury - 75 (3 CYL.) 0B240451 THRU 0C221999

  • №
    Артикул
    Название
  • 1
    42946T1 LEVER, Throttle
    LEVER, Throttle
  • 2
    10-817582 SCREW, Adjusting
    SCREW, Adjusting
  • 3
    11-400211 NUT, (M5), Jam, Adjusting Screw
    NUT, (M5), Jam, Adjusting Screw
  • 4
    429471 LEVER, Spark Advance
    LEVER, Spark Advance
  • 5
    10-814776 SCREW, Adjusting
    SCREW, Adjusting
  • 6
    11-400212 NUT, Jam, Adjusting Screw
    NUT, Jam, Adjusting Screw
  • 7
    42942 CAP, Nylon, Adjusting
    CAP, Nylon, Adjusting
  • 8
    16-42986 STUD, Levers
    STUD, Levers
  • 9
    24-55162 SPRING, Throttle/Spark Advance Lever
    SPRING, Throttle/Spark Advance Lever
  • 10
    23-812930A1 BUSHING, Lever Stud
    BUSHING, Lever Stud
  • 11
    12-42980 WASHER, Lever Stud
    WASHER, Lever Stud
  • 12
    11-90517 NUT, (M10), Lever Stud
    NUT, (M10), Lever Stud
  • 13
    42927 INSERT, Throttle Lever
    INSERT, Throttle Lever
  • 14
    12-35459 WASHER, Throttle Lever Pin
    WASHER, Throttle Lever Pin
  • 15
    11-401386 NUT, (M6), Throttle Lever Pin
    NUT, (M6), Throttle Lever Pin
  • 16
    878172 ROD, Spark Advance
    ROD, Spark Advance
  • 17
    93254 SWIVEL BASE
    SWIVEL BASE
  • 18
    93421 SWIVEL BALL
    SWIVEL BALL
  • 19
    878420T ROD, Throttle
    ROD, Throttle
  • 20
    24-14159 SPRING, Cam Return
    SPRING, Cam Return
  • 21
    23-932481 BUSHING, Swivel
    BUSHING, Swivel
  • 22
    42948A7 CAM, Throttle
    CAM, Throttle
  • 23
    16-8161949 STUD, Throttle Cam
    STUD, Throttle Cam
  • 24
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel, Throttle Cam Stud
    WASHER, (.255 x .620 x .030) Stainless Steel, Throttle Cam Stud
  • 25
    11-401386 NUT, (M6), Throttle Cam Stud
    NUT, (M6), Throttle Cam Stud
