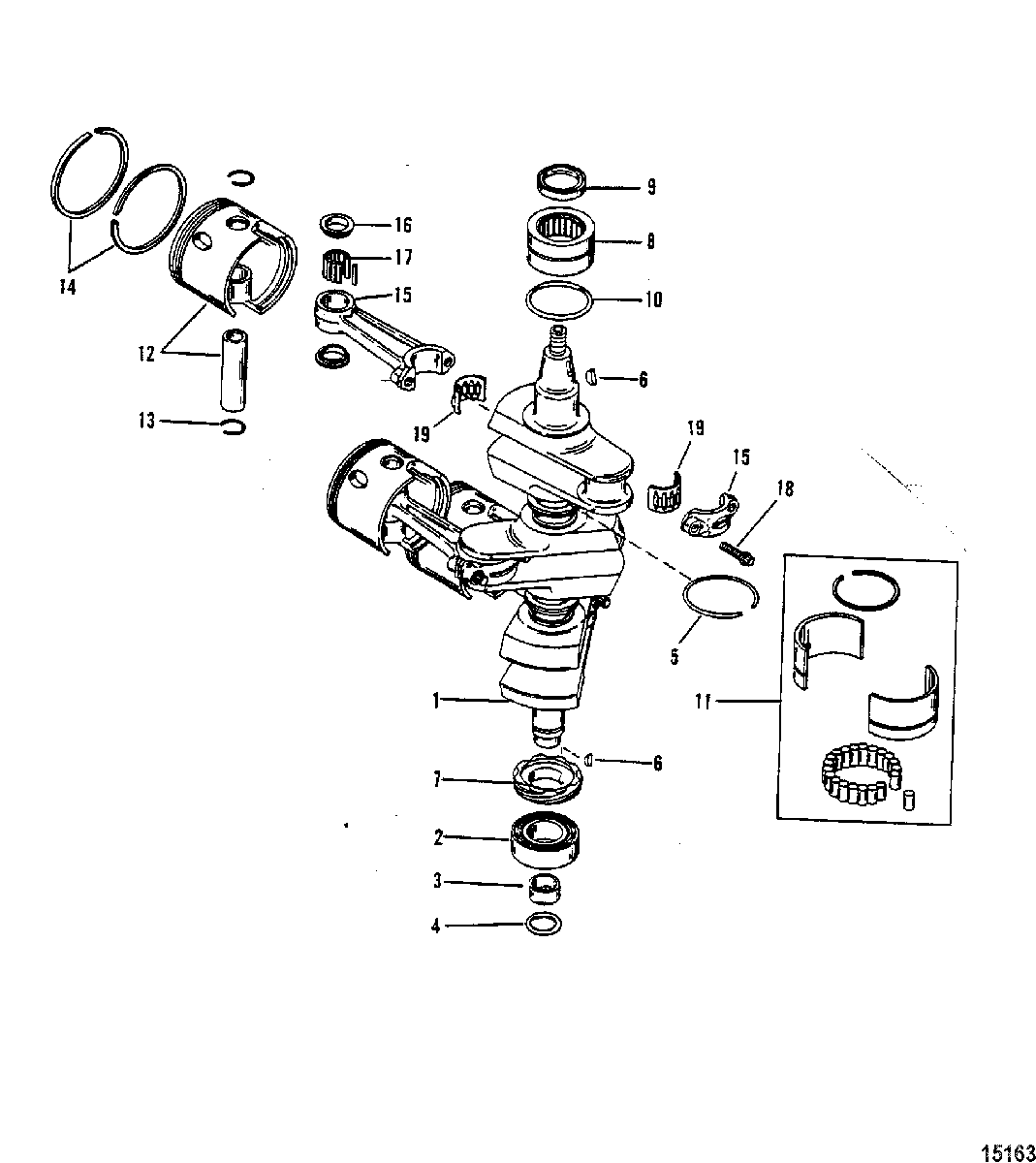

Crankshaft, Pistons/Connecting Rods (#646-818846) для Mercury - 75 (3 CYL.) 0B240451 THRU 0C221999

  • №
    Артикул
    Название
  • 1
    472-9001T3 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-43011T BEARING, Ball, Lower
    BEARING, Ball, Lower
  • 3
    786611 WEAR SLEEVE
    WEAR SLEEVE
  • 4
    25-35126 O-RING, (.859 x .139)
    O-RING, (.859 x .139)
  • 5
    39-818412A4 RING ASSEMBLY
    RING ASSEMBLY
  • 6
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 7
    43-43019A1 GEAR ASSEMBLY
    GEAR ASSEMBLY
  • 8
    31-43013T3 BEARING ASSEMBLY, Roller, Upper
    BEARING ASSEMBLY, Roller, Upper
  • 9
    26-43993 SEAL, Oil
    SEAL, Oil
  • 10
    25-823683 O-RING, (1.989 x .070)
    O-RING, (1.989 x .070)
  • 11
    42943A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 12
    777-815965T4 PISTON ASSEMBLY, Standard
    PISTON ASSEMBLY, Standard
  • 12
    777-815965A5 PISTON ASSEMBLY (.015) Oversize
    PISTON ASSEMBLY (.015) Oversize
  • 12
    777-815965A6 PISTON ASSEMBLY (.030) Oversize
    PISTON ASSEMBLY (.030) Oversize
  • 13
    53-857196 RING, Lock
    RING, Lock
  • 14
    39-96170A12 RING SET, Piston, Standard
    RING SET, Piston, Standard
  • 14
    39-96170A3 RING SET, Piston (.015) Oversize
    RING SET, Piston (.015) Oversize
  • 14
    39-96170A4 RING SET, Piston (.030) Oversize
    RING SET, Piston (.030) Oversize
  • 15
    646-818846T6 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 16
    12-8M0012298 WASHER
    WASHER
  • 17
    29-818391001 BEARING, Needle
    BEARING, Needle
  • 18
    10-94320 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 19
    31-844338A01 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
