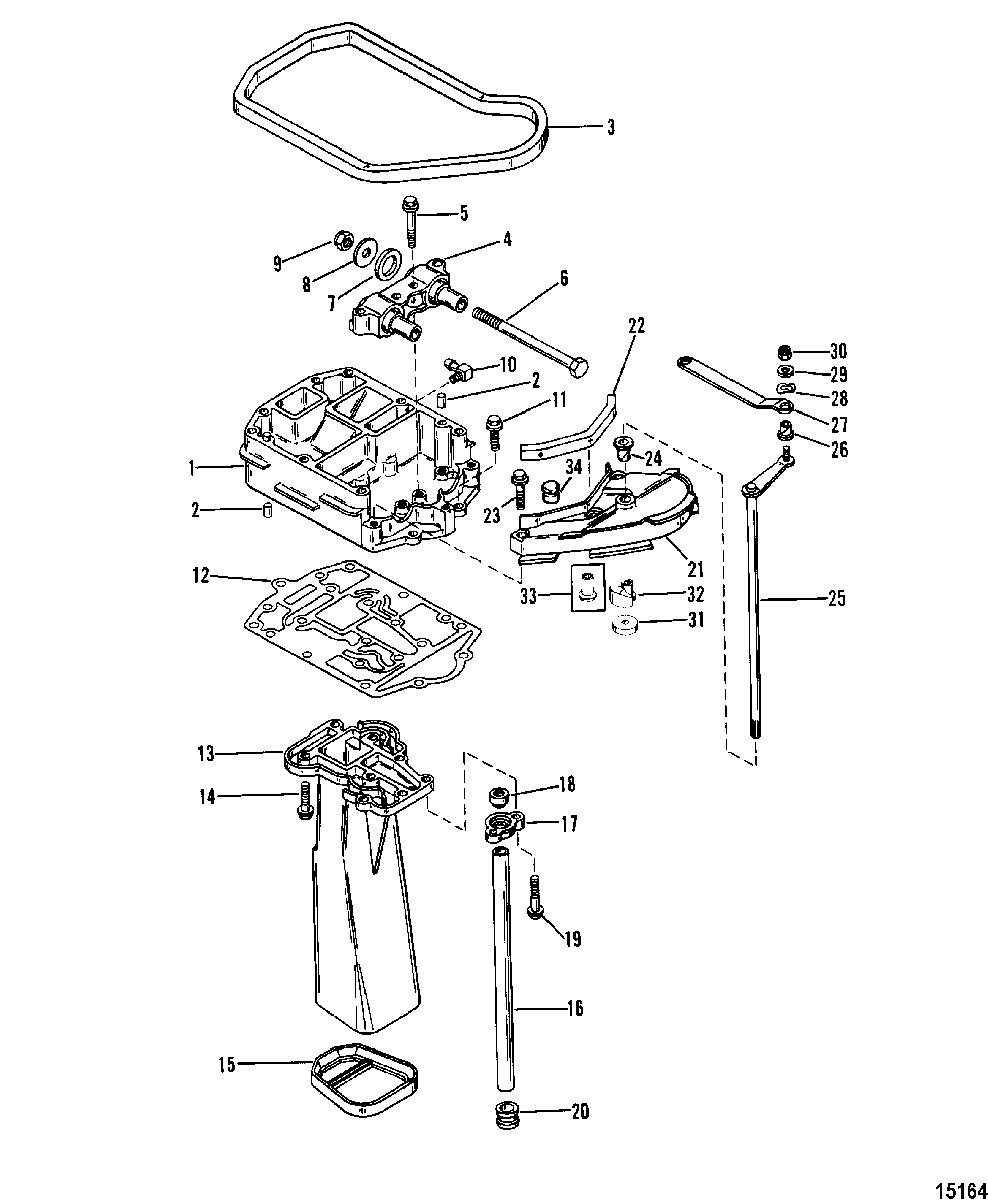

Exhaust Plate для Mercury - 75 (3 CYL.) 0B240451 THRU 0C221999

  • №
    Артикул
    Название
  • 1
    42954A3 PLATE ASSEMBLY, Exhaust
    PLATE ASSEMBLY, Exhaust
  • 2
    17-23784 PIN, Dowel
    PIN, Dowel
  • 3
    42939 SEAL, Lower Cowl
    SEAL, Lower Cowl
  • 4
    42949T1 MOUNT, (3.25 Inch), Upper
    MOUNT, (3.25 Inch), Upper
  • 4
    881900T03 MOUNT, (2.375 Inch), Upper
    MOUNT, (2.375 Inch), Upper
  • 4
    443441 MOUNT, (3.25 Inch), Upper
    (Commercial)
    MOUNT, (3.25 Inch), Upper
    (Commercial)
  • 4
    881900T03 MOUNT, (2.375 Inch), Upper
    (Commercial)
    MOUNT, (2.375 Inch), Upper
    (Commercial)
  • 5
    10-81742750 SCREW, Upper Mount To Exhaust Plate
    SCREW, Upper Mount To Exhaust Plate
  • 6
    10-898487 BOLT, (M12 x 175), Upper Mount
    BOLT, (M12 x 175), Upper Mount
  • 6
    10-12515 SCREW, (M12 x 160), Upper Mount, Handle Models
    SCREW, (M12 x 160), Upper Mount, Handle Models
  • 7
    12-32834 WASHER, Upper Mount Screw
    WASHER, Upper Mount Screw
  • 8
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, Upper Mount Screw
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, Upper Mount Screw
  • 9
    11-896963 NUT, (M12), Upper Mount Screw
    NUT, (M12), Upper Mount Screw
  • 10
    22-996642 ELBOW, Exhaust Plate
    ELBOW, Exhaust Plate
  • 11
    10-4010735 SCREW, (M8 x 35), Exhaust Plate
    SCREW, (M8 x 35), Exhaust Plate
  • 11
    10-4010770 SCREW, (M8 x 70), Exhaust Plate
    SCREW, (M8 x 70), Exhaust Plate
  • 12
    27-430086 GASKET, Exhaust Plate
    (Contents Of (27-43004A86) Gasket Set)
    GASKET, Exhaust Plate
    (Contents Of (27-43004A86) Gasket Set)
  • 13
    429662 TUBE, Exhaust
    TUBE, Exhaust
  • 13
    8141282 TUBE, Exhaust
    (90 - Use With WME-15 Carburetor)
    TUBE, Exhaust
    (90 - Use With WME-15 Carburetor)
  • 14
    10-4010735 SCREW, (M8 x 35), Exhaust Tube To Plate
    SCREW, (M8 x 35), Exhaust Tube To Plate
  • 15
    8M0039075 SEAL, Exhaust Tube
    SEAL, Exhaust Tube
  • 16
    32-430141 TUBE, Water, Long
    TUBE, Water, Long
  • 16
    32-430142 TUBE, Water, X-Long
    TUBE, Water, X-Long
  • 17
    99019 CLAMP, Water Tube Seal
    CLAMP, Water Tube Seal
  • 18
    42941001 SEAL, Water Tube, Upper
    SEAL, Water Tube, Upper
  • 19
    10-4010750 SCREW, (M8 x 50), Clamp
    SCREW, (M8 x 50), Clamp
  • 20
    25-93221002 GROMMET, Water Tube
    (Contents Of (27-43004A86) Gasket Set)
    GROMMET, Water Tube
    (Contents Of (27-43004A86) Gasket Set)
  • 21
    42953A2 BRACKET ASSEMBLY, Cowl, Lower, Black
    BRACKET ASSEMBLY, Cowl, Lower, Black
  • 21
    42953A3 BRACKET ASSEMBLY, Cowl, Lower, Gray
    BRACKET ASSEMBLY, Cowl, Lower, Gray
  • 21
    42953A3 BRACKET ASSEMBLY, Cowl, Lower, Oyster
    BRACKET ASSEMBLY, Cowl, Lower, Oyster
  • 22
    43405 SEAL, Lower, Cowl, Bracket
    SEAL, Lower, Cowl, Bracket
  • 23
    10-81742755 SCREW, Lower Cowl Bracket
    SCREW, Lower Cowl Bracket
  • 24
    23-48237 BUSHING, Shift Shaft
    BUSHING, Shift Shaft
  • 25
    79932A9 SHIFT SHAFT ASSEMBLY, Upper
    SHIFT SHAFT ASSEMBLY, Upper
  • 26
    23-42994 BUSHING, Shift Shaft
    BUSHING, Shift Shaft
  • 27
    42912A1 SHIFT LINK
    SHIFT LINK
  • 28
    13-29720 WAVE WASHER, Shift Shaft
    WAVE WASHER, Shift Shaft
  • 29
    12-24664 WASHER, (M4 x 20), Shift Shaft
    WASHER, (M4 x 20), Shift Shaft
  • 30
    11-401386 NUT, (M6), Shift Shaft
    NUT, (M6), Shift Shaft
  • 31
    23-813745 SPACER, Shift Shaft, Long
    SPACER, Shift Shaft, Long
  • 31
    23-11289 SPACER, Shift Shaft, X-Long
    SPACER, Shift Shaft, X-Long
  • 32
    43053 COUPLING, Shift Shaft, Non Power Trim
    COUPLING, Shift Shaft, Non Power Trim
  • 33
    43585 COUPLING, Shift Shaft, Power Trim
    COUPLING, Shift Shaft, Power Trim
  • 34
    25-19564001 GROMMET
    GROMMET
  • -
    27-43004A99 GASKET SET
    GASKET SET
