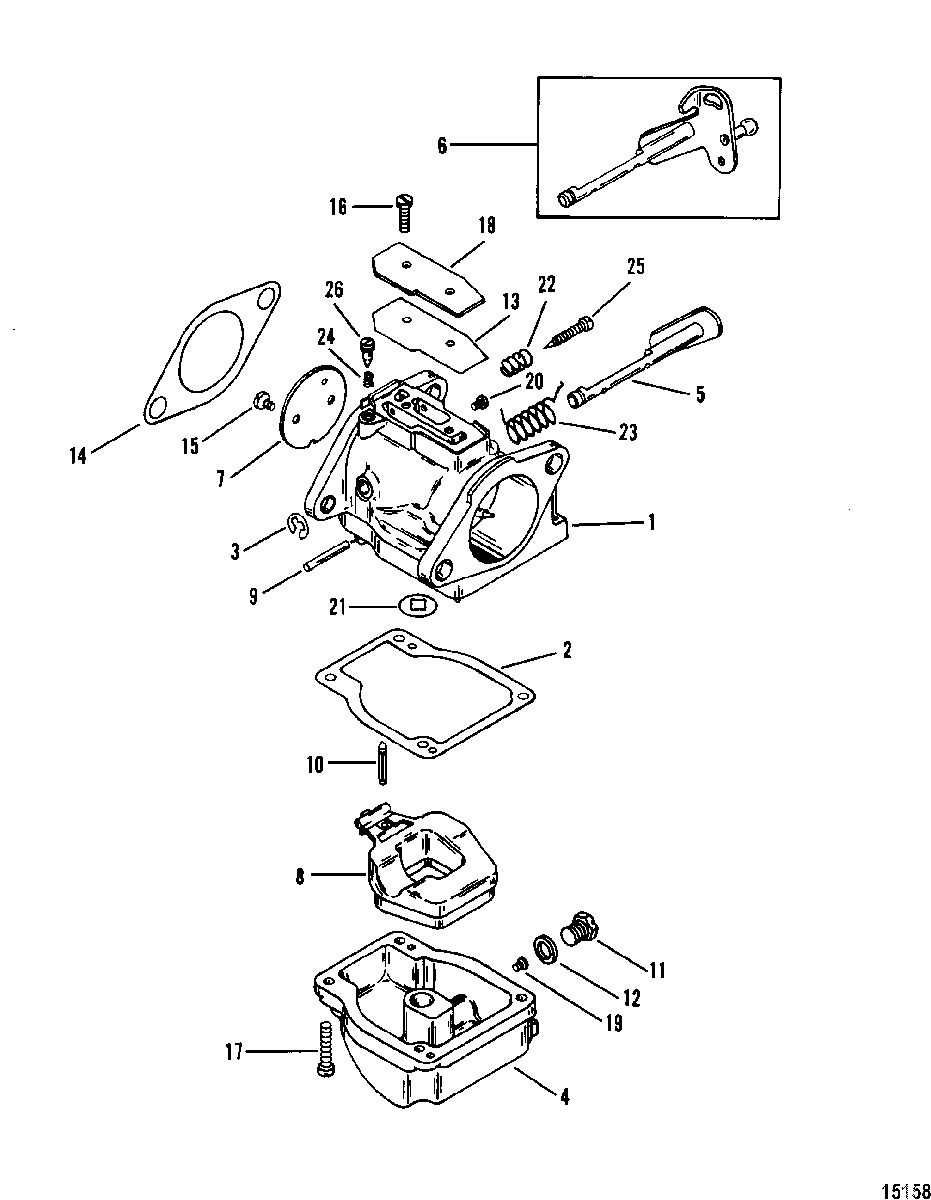

Carburetor для Mercury - 75 (3 CYL.) 0B240451 THRU 0C221999

  • №
    Артикул
    Название
  • 1
    3301-9012A27 CARBURETOR ASSEMBLY, Top, 70
    CARBURETOR ASSEMBLY, Top, 70
  • 1
    3301-9012A28 CARBURETOR ASSEMBLY, Center, 70
    CARBURETOR ASSEMBLY, Center, 70
  • 1
    3301-9012A29 CARBURETOR ASSEMBLY, Bottom, 70
    CARBURETOR ASSEMBLY, Bottom, 70
  • 1
    3301-9012A71 CARBURETOR ASSEMBLY, Top, 75
    CARBURETOR ASSEMBLY, Top, 75
  • 1
    3301-9012A72 CARBURETOR ASSEMBLY, Center, 75
    CARBURETOR ASSEMBLY, Center, 75
  • 1
    3301-9012A73 CARBURETOR ASSEMBLY, Bottom, 75
    CARBURETOR ASSEMBLY, Bottom, 75
  • 1
    3301-9012A58 CARBURETOR ASSEMBLY, Top, 80, Handle
    CARBURETOR ASSEMBLY, Top, 80, Handle
  • 1
    3301-9012A59 CARBURETOR ASSEMBLY, Center, 80, Handle
    CARBURETOR ASSEMBLY, Center, 80, Handle
  • 1
    3301-9012A60 CARBURETOR ASSEMBLY, Bottom, 80, Handle
    CARBURETOR ASSEMBLY, Bottom, 80, Handle
  • 1
    3301-9012A36 CARBURETOR ASSEMBLY, Top, 90, WME-10
    CARBURETOR ASSEMBLY, Top, 90, WME-10
  • 1
    3301-9012A37 CARBURETOR ASSEMBLY, Center, 90, WME-10
    CARBURETOR ASSEMBLY, Center, 90, WME-10
  • 1
    3301-9012A38 CARBURETOR ASSEMBLY, Bottom, 90, WME-10
    CARBURETOR ASSEMBLY, Bottom, 90, WME-10
  • 1
    3301-9012A64 CARBURETOR ASSEMBLY, Top, 90, WME-15
    CARBURETOR ASSEMBLY, Top, 90, WME-15
  • 1
    3301-9012A65 CARBURETOR ASSEMBLY, Center, 90, WME-15
    CARBURETOR ASSEMBLY, Center, 90, WME-15
  • 1
    3301-9012A66 CARBURETOR ASSEMBLY, Bottom, 90, WME-15
    CARBURETOR ASSEMBLY, Bottom, 90, WME-15
  • 2
    NSS NOT SOLD SEPARATE, Gasket, Fuel Bowl
    NOT SOLD SEPARATE, Gasket, Fuel Bowl
  • 3
    NSS NOT SOLD SEPARATE, Retaining Ring
    NOT SOLD SEPARATE, Retaining Ring
  • 4
    1395-811696 BOWL, Fuel, Upper
    BOWL, Fuel, Upper
  • 4
    1395-811693 BOWL, Fuel, Center, Lower
    BOWL, Fuel, Center, Lower
  • 5
    1395-9591 SHAFT, Throttle, Upper, Lower
    SHAFT, Throttle, Upper, Lower
  • 6
    19270 SHAFT, Throttle, Center
    SHAFT, Throttle, Center
  • 7
    1395-9593 VALVE, Throttle, 70/75/80, Handle
    VALVE, Throttle, 70/75/80, Handle
  • 7
    1395-9609 VALVE, Throttle, 90, WME-10
    VALVE, Throttle, 90, WME-10
  • 7
    1395-811216 VALVE, Throttle, 90, WME-15
    VALVE, Throttle, 90, WME-15
  • 8
    1395-9594 FLOAT
    FLOAT
  • 9
    NSS NOT SOLD SEPARATE, Float Shaft
    NOT SOLD SEPARATE, Float Shaft
  • 10
    1395-879194011 VALVE, Inlet Needle
    VALVE, Inlet Needle
  • 11
    1395-811694 PLUG, Main Jet
    PLUG, Main Jet
  • 12
    NSS NOT SOLD SEPARATE, Gasket, Plug
    NOT SOLD SEPARATE, Gasket, Plug
  • 13
    NSS NOT SOLD SEPARATE, Gasket, Cover Plate
    NOT SOLD SEPARATE, Gasket, Cover Plate
  • 14
    27-151724 GASKET, Flange
    GASKET, Flange
  • 15
    NSS NOT SOLD SEPARATE, Screw, Throttle Valve
    NOT SOLD SEPARATE, Screw, Throttle Valve
  • 16
    1395-9597 SCREW, Cover Plate
    SCREW, Cover Plate
  • 17
    1395-808612 SCREW, Fuel Bowl
    SCREW, Fuel Bowl
  • 18
    1395-9598 COVER PLATE
    COVER PLATE
  • 19
    1399-4216 JET, (.064), Main Fuel, 80 Handle
    JET, (.064), Main Fuel, 80 Handle
  • 19
    1395-6029 JET, (.068), Main Fuel, 75
    JET, (.068), Main Fuel, 75
  • 19
    1395-6207 JET, (.072), Main Fuel, 70
    JET, (.072), Main Fuel, 70
  • 19
    1395-6030 JET, (.070), Main Fuel, 90 - WME-10
    JET, (.070), Main Fuel, 90 - WME-10
  • 19
    1399-4215 JET, Main Fuel (.066), Main Fuel, 90 - WME-15
    JET, Main Fuel (.066), Main Fuel, 90 - WME-15
  • 20
    1395-8423 JET, (.094), Vent, .094
    JET, (.094), Vent, .094
  • 21
    NSS NOT SOLD SEPARATE, Gasket, Nozzle Well
    NOT SOLD SEPARATE, Gasket, Nozzle Well
  • 22
    NSS NOT SOLD SEPARATE, Spring, Idle Needle
    NOT SOLD SEPARATE, Spring, Idle Needle
  • 23
    NSS NOT SOLD SEPARATE, Spring, Throttle Return
    NOT SOLD SEPARATE, Spring, Throttle Return
  • 24
    NSS NOT SOLD SEPARATE, Spring, Idle Air
    NOT SOLD SEPARATE, Spring, Idle Air
  • 25
    NSS NOT SOLD SEPARATE, Idle Needle
    NOT SOLD SEPARATE, Idle Needle
  • 26
    NSS NOT SOLD SEPARATE, Idle Air Needle
    NOT SOLD SEPARATE, Idle Air Needle
  • -
    1395-8112231 GASKET KIT
    GASKET KIT
  • -
    1395-8236354 REPAIR KIT
    REPAIR KIT
