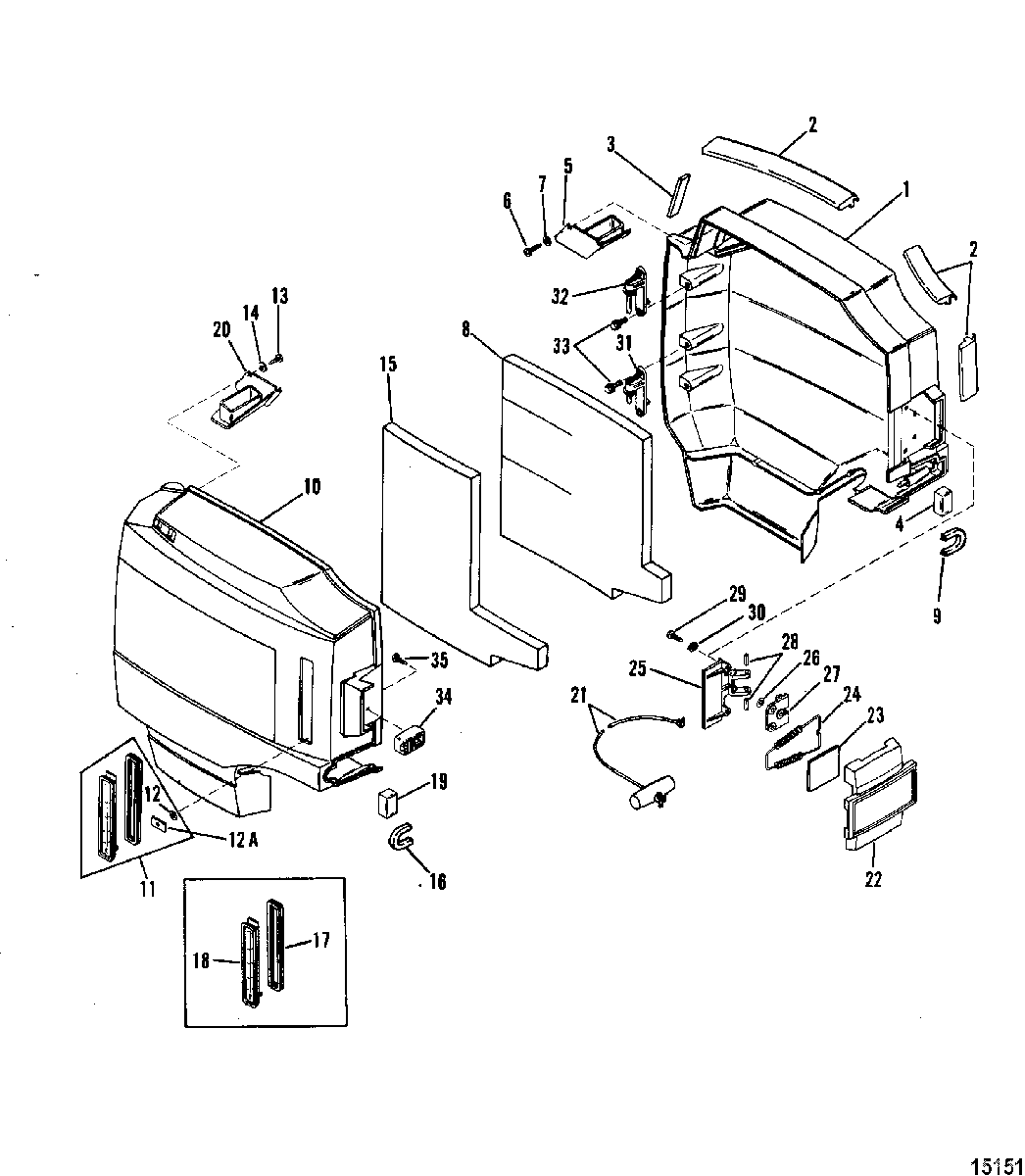

Cowls and Front Cover для Mercury - 75 (3 CYL.) 0B240451 THRU 0C221999

  • №
    Артикул
    Название
  • 1
    2188-9006A2 TOP COWL ASSEMBLY, Port, Black
    TOP COWL ASSEMBLY, Port, Black
  • 1
    2188-9006A3 TOP COWL ASSEMBLY, Port, Gray
    TOP COWL ASSEMBLY, Port, Gray
  • 1
    2188-9006A3 TOP COWL ASSEMBLY, Port, Oyster
    TOP COWL ASSEMBLY, Port, Oyster
  • 2
    429404 SEAL, Upper Cowl
    SEAL, Upper Cowl
  • 3
    12401 SEAL, Cowl, Rear
    SEAL, Cowl, Rear
  • 4
    90274 SEAL
    SEAL
  • 5
    42958 SHIELD, Air Inlet, Black, Gray
    SHIELD, Air Inlet, Black, Gray
  • 5
    429581 SHIELD OYSTER, Air Inlet, Oyster
    SHIELD OYSTER, Air Inlet, Oyster
  • 6
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, Shield
    SCREW, (#10-16 x .625) Stainless Steel, Shield
  • 7
    12-4002313 WASHER, Shield Screw
    WASHER, Shield Screw
  • 8
    435331 SOUND BLANKET
    SOUND BLANKET
  • 9
    193682 SEAL, (4.20 Inches), Black, Gray
    SEAL, (4.20 Inches), Black, Gray
  • 9
    193681 SEAL, (3.20 Inch), Oyster
    SEAL, (3.20 Inch), Oyster
  • 10
    2187-9070A4 TOP COWL ASSEMBLY, Starboard, Black
    TOP COWL ASSEMBLY, Starboard, Black
  • 10
    2187-9070A5 TOP COWL ASSEMBLY, Starboard, Gray
    TOP COWL ASSEMBLY, Starboard, Gray
  • 10
    2187-9070A5 TOP COWL ASSEMBLY, Starboard, Oyster
    TOP COWL ASSEMBLY, Starboard, Oyster
  • 11
    11315A1 OIL LEVEL GAUGE ASSEMBLY
    OIL LEVEL GAUGE ASSEMBLY
  • 12
    11-11316 SPEED NUT
    SPEED NUT
  • 12A
    113171 RETAINER
    RETAINER
  • 13
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, Shield
    SCREW, (#10-16 x .625) Stainless Steel, Shield
  • 14
    12-4002313 WASHER, Shield Screw
    WASHER, Shield Screw
  • 15
    435342 SOUND BLANKET, Black, Gray
    SOUND BLANKET, Black, Gray
  • 16
    193682 SEAL, (4.20 Inches), Black, Gray
    SEAL, (4.20 Inches), Black, Gray
  • 16
    193681 SEAL, (3.20 Inch), Oyster
    SEAL, (3.20 Inch), Oyster
  • 17
    42905 GROMMET, Handle Models
    GROMMET, Handle Models
  • 18
    812431 PLUG, Handle Models
    PLUG, Handle Models
  • 19
    26-60297 SEAL
    SEAL
  • 20
    42957 SHIELD, Air Inlet
    SHIELD, Air Inlet
  • 21
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start, Manual Starting
    ROPE AND HANDLE KIT, Manual/Emergency Start, Manual Starting
  • 22
    43138A2 COVER ASSEMBLY MERCURY, Black
    COVER ASSEMBLY MERCURY, Black
  • 22
    43138A3 COVER ASSEMBLY MARINER, Gray
    COVER ASSEMBLY MARINER, Gray
  • 22
    43138A3 COVER ASSEMBLY, Oyster
    COVER ASSEMBLY, Oyster
  • 23
    12356 BUMPER
    BUMPER
  • 24
    24-17288 SPRING, Cover
    SPRING, Cover
  • 25
    43137A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 26
    11-434181 SPEED NUT
    SPEED NUT
  • 27
    15432 RETAINER, Bracket
    RETAINER, Bracket
  • 28
    17-43134 PIN, Bracket
    PIN, Bracket
  • 29
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 30
    12-814806 WASHER
    WASHER
  • 31
    87985 BRACKET, Lower
    BRACKET, Lower
  • 32
    879871 BRACKET, Upper
    BRACKET, Upper
  • 33
    10-40011149 SCREW, Bracket
    SCREW, Bracket
  • 34
    120811 LATCH, Cowl
    LATCH, Cowl
  • 35
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, Latch
    SCREW, (#10-16 x .625) Stainless Steel, Latch
  • 35
    38-17996 EMBLEM, Port, Starboard, Oyster
    EMBLEM, Port, Starboard, Oyster
  • 35
    37-179061 EMBLEM, Oyster
    EMBLEM, Oyster
