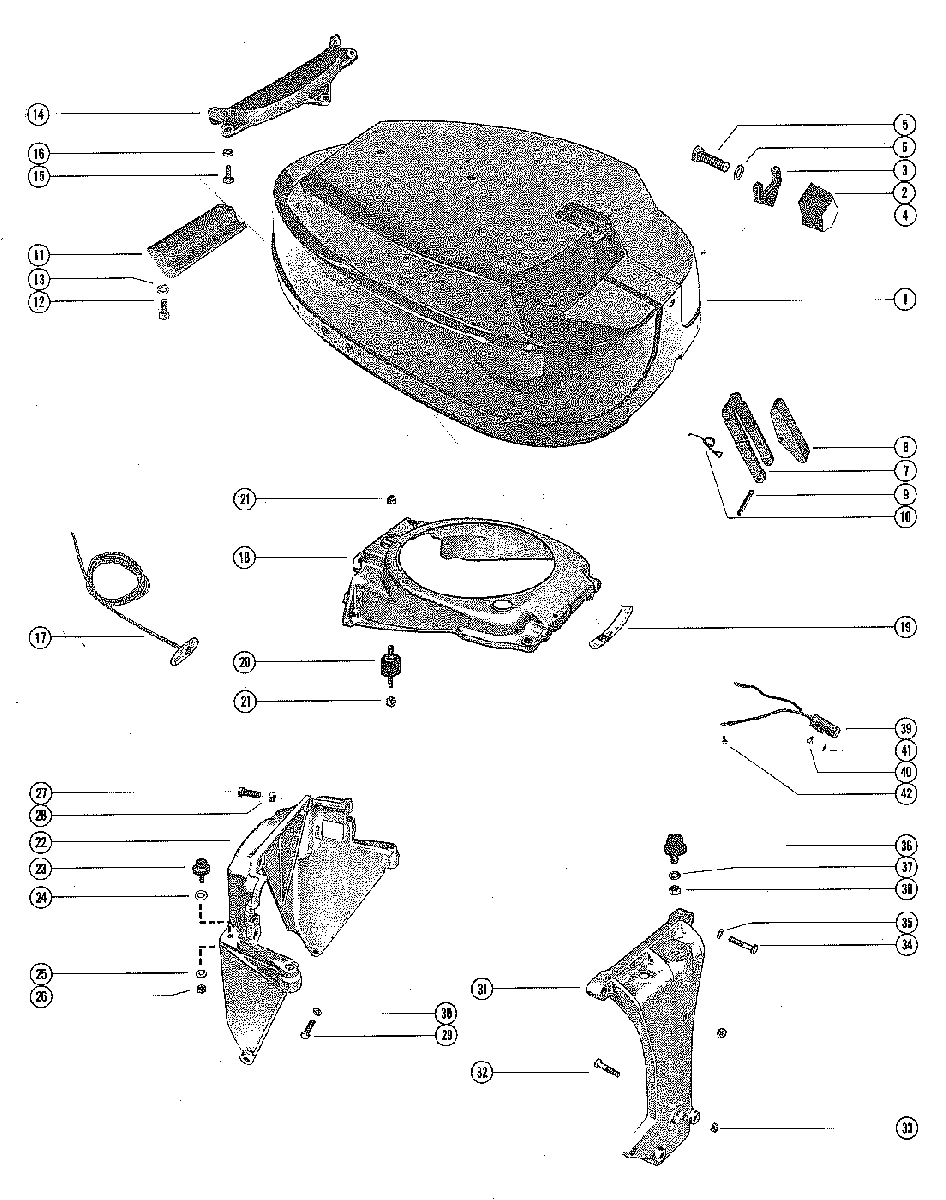

TOP COWL AND SUPPORT BRACKETS для Mercury - 650 (4 CYL.) 2803562 THRU 3293183

  • №
    Артикул
    Название
  • 1
    2114-3806 COWL, TOP
    COWL, TOP
  • 2
    52733A9 RETAINER ASSEMBLY, TOP COWL
    SERIAL 02803562-02874263
    RETAINER ASSEMBLY, TOP COWL
    SERIAL 02803562-02874263
  • 2
    52733A9 RETAINER ASSEMBLY, TOP COWL
    SERIAL 02997339-09999999
    RETAINER ASSEMBLY, TOP COWL
    SERIAL 02997339-09999999
  • 3
    35496 PAD, BUMPER - TOP COWL RETAINER
    PAD, BUMPER - TOP COWL RETAINER
  • 4
    37-61018A1 EMBLEM, TOP COWL RETAINER
    SERIAL 02803562-02874263
    EMBLEM, TOP COWL RETAINER
    SERIAL 02803562-02874263
  • 5
    10-74824 SCREW, RETAINER TO TOP COWL (1 1/4")
    SCREW, RETAINER TO TOP COWL (1 1/4")
  • 6
    13-39107 LOCKWASHER, RETAINER FASTENING SCREW
    LOCKWASHER, RETAINER FASTENING SCREW
  • 7
    52739 HINGE, COWL LATCH - TOP COWL
    HINGE, COWL LATCH - TOP COWL
  • 8
    94918F1 LEVER, COWL LATCH HINGE
    LEVER, COWL LATCH HINGE
  • 9
    17-58998 PIN, COWL LATCH LEVER TO HINGE
    PIN, COWL LATCH LEVER TO HINGE
  • 10
    24-53019 SPRING, COWL LATCH HINGE
    SPRING, COWL LATCH HINGE
  • 11
    55455 HOOK, TOP COWL LATCH - REAR
    HOOK, TOP COWL LATCH - REAR
  • 12
    10-22956 SCREW, REAR HOOK TO TOP COWL (7/8")
    SCREW, REAR HOOK TO TOP COWL (7/8")
  • 13
    13-26992 LOCKWASHER, REAR HOOK MOUNTING SCREW
    LOCKWASHER, REAR HOOK MOUNTING SCREW
  • 14
    76370 SHIELD, TOP COWL - REAR
    SHIELD, TOP COWL - REAR
  • 15
    10-37370 SCREW, SHIELD TO TOP COWL (5/8")
    SCREW, SHIELD TO TOP COWL (5/8")
  • 16
    13-37371 LOCKWASHER, SHIELD SCREW
    LOCKWASHER, SHIELD SCREW
  • 17
    47341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)
    ROPE, STARTER (FOR MANUAL STARTING ONLY)
  • 18
    79897A4 FRAME, TOP COWL SUPPORT
    FRAME, TOP COWL SUPPORT
  • 19
    37-60204 DECAL, TIMING - TOP COWL FRAME
    DECAL, TIMING - TOP COWL FRAME
  • 20
    90435 MOUNT, RUBBER - TOP COWL FRAME
    MOUNT, RUBBER - TOP COWL FRAME
  • 21
    11-8267089 NUT, RUBBER MOUNT TO TOP COWL FRAME
    NUT, RUBBER MOUNT TO TOP COWL FRAME
  • 22
    52740 BRACKET, TOP COWL SUPPORT - REAR
    BRACKET, TOP COWL SUPPORT - REAR
  • 23
    31014 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
  • 24
    12-69057 WASHER, RUBBER MOUNT STUD
    WASHER, RUBBER MOUNT STUD
  • 25
    13-26992 LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
    LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 26
    11-20088 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
    NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 27
    10-26065 SCREW, REAR SUPPORT BRACKET TO TOP COWL FRAM (1")
    SCREW, REAR SUPPORT BRACKET TO TOP COWL FRAM (1")
  • 28
    11-29250 NUT, REAR SUPPORT BRACKET SCREW
    NUT, REAR SUPPORT BRACKET SCREW
  • 29
    10-74824 SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1 1/4")
    SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1 1/4")
  • 30
    13-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREW
    LOCKWASHER, REAR SUPPORT BRACKET SCREW
  • 31
    66521A2 BRACKET, TOP COWL SUPPORT - FRONT
    SERIAL 00000000-#3076715
    BRACKET, TOP COWL SUPPORT - FRONT
    SERIAL 00000000-#3076715
  • 31
    66521A2 BRACKET, TOP COWL SUPPORT - FRONT
    SERIAL #3149067-09999999
    BRACKET, TOP COWL SUPPORT - FRONT
    SERIAL #3149067-09999999
  • 32
    10-78841 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1 1/2")
    SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1 1/2")
  • 33
    11-29250 NUT, FRONT SUPPORT BRACKET SCREW
    NUT, FRONT SUPPORT BRACKET SCREW
  • 34
    10-73657 SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2")
    SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2")
  • 35
    13-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREW
    LOCKWASHER, FRONT SUPPORT BRACKET SCREW
  • 36
    37640 MOUNT, RUBBER - FRONT SUPPORT BRACKET
    MOUNT, RUBBER - FRONT SUPPORT BRACKET
  • 37
    13-26993 LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
  • 38
    11-22053 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
  • 39
    58124A7 SWITCH, MERCURY
    SWITCH, MERCURY
  • 40
    10-25764 SCREW, MERCURY SWITCH TO FRONT SUPPORT BRACKET
    SCREW, MERCURY SWITCH TO FRONT SUPPORT BRACKET
  • 41
    17-30496 PIN, ROLL - MERCURY SWITCH
    PIN, ROLL - MERCURY SWITCH
  • 42
    10-62568 SCREW, MERCURY SWITCH LEADS
    SCREW, MERCURY SWITCH LEADS
