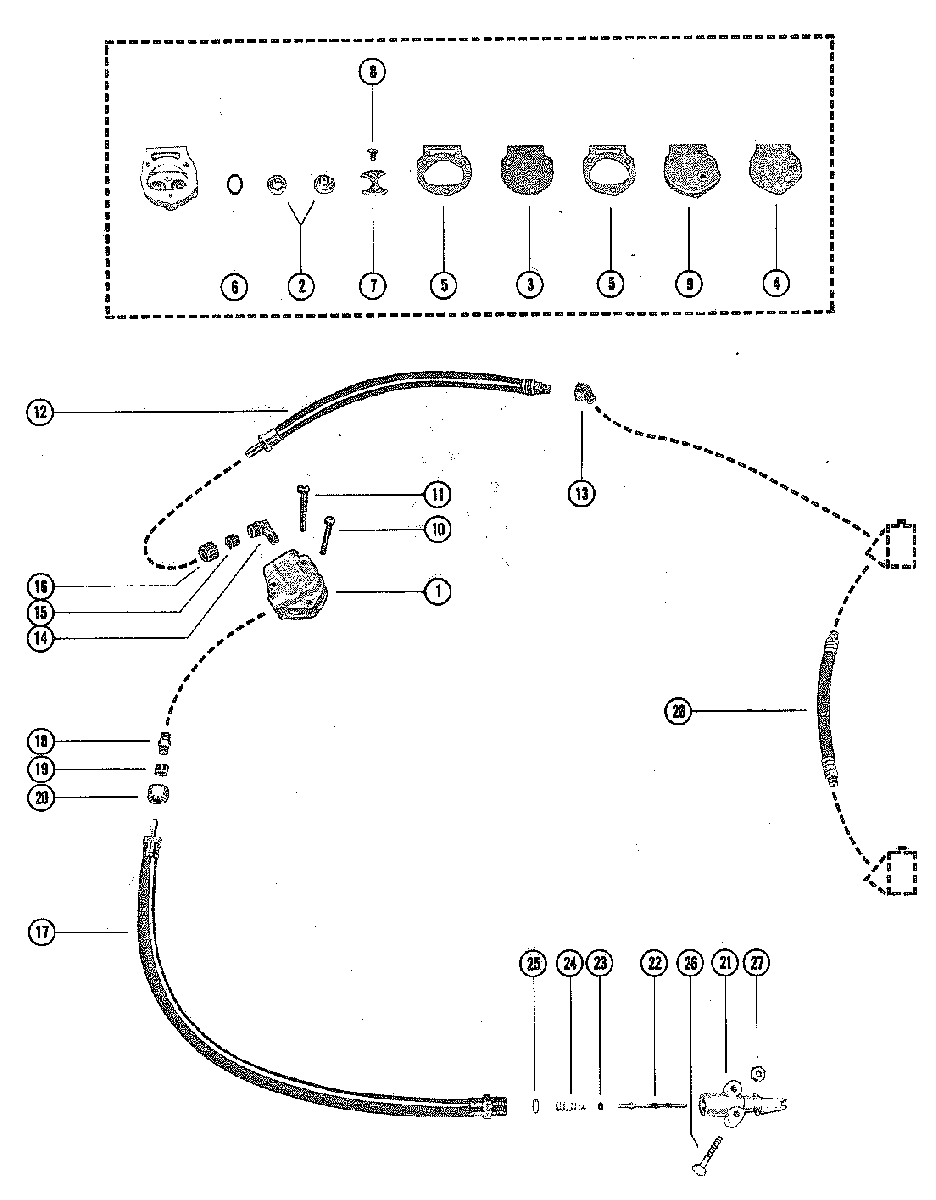

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 650 (4 CYL.) 2803562 THRU 3293183
-
№АртикулНазвание
-
156677A6 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-30430A4 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
356678A1 DIAPHRAGM KITDIAPHRAGM KIT
-
490-8M0143356 GASKET, FUEL PUMP COVERGASKET, FUEL PUMP COVER
-
590-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
690-8M0143356 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
723004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
810-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
956680 COVER, FUEL PUMPCOVER, FUEL PUMP
-
1010-73013 SCREW, PUMP MOUNTING (1 1/2")SCREW, PUMP MOUNTING (1 1/2")
-
1110-30273 SCREW, PUMP MOUNTING (1 7/8")SCREW, PUMP MOUNTING (1 7/8")
-
1232-33154A1 FUEL LINE ASS'Y, PUMP TO CARBURETOR (19 1/4") (#32-33154A1)FUEL LINE ASS'Y, PUMP TO CARBURETOR (19 1/4") (#32-33154A1)
-
1322-8M0123050 ELBOW (45 ), CARBURETORELBOW (45 ), CARBURETOR
-
1422-30174 ELBOW, FUEL PUMP OUTLETELBOW, FUEL PUMP OUTLET
-
1522-30175 SLEEVE, FUEL PUMP OUTLET ELBOWSLEEVE, FUEL PUMP OUTLET ELBOW
-
1622-30177 NUT, FUEL PUMP OUTLET ELBOWNUT, FUEL PUMP OUTLET ELBOW
-
1732-30176 FUEL LINE, ADAPTOR TO FUEL PUMP INLET (18")FUEL LINE, ADAPTOR TO FUEL PUMP INLET (18")
-
1822-30468 CONNECTOR, FUEL INLETCONNECTOR, FUEL INLET
-
1922-30175 SLEEVE, FUEL PUMP INLET ELBOWSLEEVE, FUEL PUMP INLET ELBOW
-
2022-30177 NUT, FUEL PUMP INLET ELBOWNUT, FUEL PUMP INLET ELBOW
-
2130186 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
2230185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2325-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
2424-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2530188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
2610-37561 SCREW, ADAPTOR TO BOTTOM COWL (2 1/2")SCREW, ADAPTOR TO BOTTOM COWL (2 1/2")
-
2610-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
-
2711-20184 NUT, ADAPTOR FASTENING SCREWNUT, ADAPTOR FASTENING SCREW
-
2832-31550A1 FUEL LINE ASS'Y, UPPER TO LOWER CARBURETOR (6") (#32-31550A1)FUEL LINE ASS'Y, UPPER TO LOWER CARBURETOR (6") (#32-31550A1)
