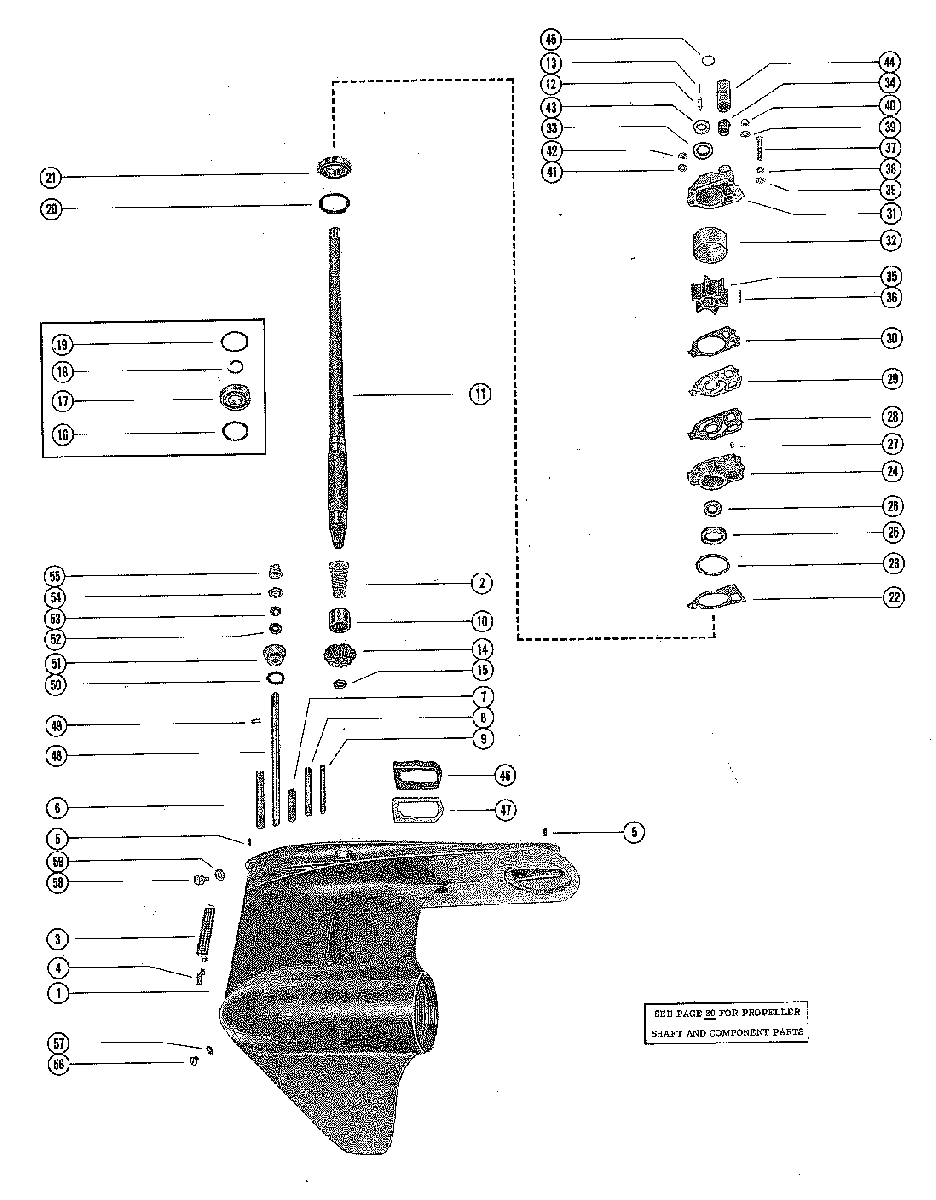

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 650 (4 CYL.) 2803562 THRU 3293183
-
№АртикулНазвание
-
-1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SERIAL 02803562-02874263GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SERIAL 02803562-02874263 -
-1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SERIAL 02803562-02874263GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SERIAL 02803562-02874263 -
-1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SERIAL 02997339-09999999GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SERIAL 02997339-09999999 -
-1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SERIAL 02997339-09999999GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SERIAL 02997339-09999999 -
11623-5244A14 GEAR HOUSING ASSEMBLY
SERIAL #2803562-#2874263GEAR HOUSING ASSEMBLY
SERIAL #2803562-#2874263 -
11623-6052A4 GEAR HOUSING ASSEMBLY
SERIAL #2997339-09999999GEAR HOUSING ASSEMBLY
SERIAL #2997339-09999999 -
223-56513 SLEEVE, LUBRICATION
SERIAL #2997339-09999999SLEEVE, LUBRICATION
SERIAL #2997339-09999999 -
355662 SCREEN, WATER INLET EARLY MODELS ONLYSCREEN, WATER INLET EARLY MODELS ONLY
-
424-57430 SPRING, WATER INLET SCREEN EARLY MODELS ONLYSPRING, WATER INLET SCREEN EARLY MODELS ONLY
-
517-21438 PIN, GEAR HOUSINGPIN, GEAR HOUSING
-
616-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSINGSTUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
-
716-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")
-
816-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
-
916-57919 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 5/16")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 5/16")
-
1031-32898T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
1145-47433 DRIVE SHAFT (SHORT SHAFT)
SERIAL #2803562-#2874263DRIVE SHAFT (SHORT SHAFT)
SERIAL #2803562-#2874263 -
1145-47434 DRIVE SHAFT (LONG SHAFT)
SERIAL #2803562-#2874263DRIVE SHAFT (LONG SHAFT)
SERIAL #2803562-#2874263 -
1145-59117A1 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
SERIAL #2997339-09999999DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
SERIAL #2997339-09999999 -
1145-59116A1 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
SERIAL #2997339-09999999DRIVE SHAFT ASSEMBLY (LONG SHAFT)
SERIAL #2997339-09999999 -
1224-34576 SPRING, COMPRESSION - DRIVE SHAFT
SERIAL #2997339-09999999SPRING, COMPRESSION - DRIVE SHAFT
SERIAL #2997339-09999999 -
1317-30545 PIN, COMPRESSION SPRING RETAINING
SERIAL #2997339-09999999PIN, COMPRESSION SPRING RETAINING
SERIAL #2997339-09999999 -
1443-53981 GEAR, PINION - DRIVE SHAFT
SERIAL #2803562-#2874263GEAR, PINION - DRIVE SHAFT
SERIAL #2803562-#2874263 -
1443-56518 GEAR, PINION - DRIVE SHAFT
SERIAL #2997339-09999999GEAR, PINION - DRIVE SHAFT
SERIAL #2997339-09999999 -
1511-35921 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1615-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)
SERIAL #2803562-#2874263SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)
SERIAL #2803562-#2874263 -
1730-63326T BEARING, BALL - DRIVE SHAFT
SERIAL #2803562-#2874263BEARING, BALL - DRIVE SHAFT
SERIAL #2803562-#2874263 -
1853-30726 RING, RETAINING - BALL BEARING
SERIAL #2803562-#2874263RING, RETAINING - BALL BEARING
SERIAL #2803562-#2874263 -
1915-30278A1 SHIM, WATER PUMP BASE TO GEAR HOUSING (.002-3-5-10)
SERIAL #2803562-#2874263SHIM, WATER PUMP BASE TO GEAR HOUSING (.002-3-5-10)
SERIAL #2803562-#2874263 -
2015-57007A1 SHIM, TAPERED ROLLER BEARING TO GEAR HOUSING (.002-3-5-10)
SERIAL #2997339-09999999SHIM, TAPERED ROLLER BEARING TO GEAR HOUSING (.002-3-5-10)
SERIAL #2997339-09999999 -
2131-33138A1 TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
SERIAL #2997339-09999999TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
SERIAL #2997339-09999999 -
2227-32438 GASKET, WATER PUMP BASE TO GEAR HOUSING
SERIAL 02803562-02874263GASKET, WATER PUMP BASE TO GEAR HOUSING
SERIAL 02803562-02874263 -
2227-856704 GASKET, WATER PUMP BASE TO GEAR HOUSING
SERIAL 02997339-09999999GASKET, WATER PUMP BASE TO GEAR HOUSING
SERIAL 02997339-09999999 -
2325-30224 "O" RING, WATER PUMP BASE
SERIAL 02803562-02874263"O" RING, WATER PUMP BASE
SERIAL 02803562-02874263 -
2325-33145 "O" RING, WATER PUMP
SERIAL 02997339-09999999"O" RING, WATER PUMP
SERIAL 02997339-09999999 -
2446-48747A1 WATER PUMP BASE ASSEMBLY
SERIAL 02803562-02874263WATER PUMP BASE ASSEMBLY
SERIAL 02803562-02874263 -
2446-58618A1 WATER PUMP BASE ASSEMBLY
SERIAL 02997339-09999999WATER PUMP BASE ASSEMBLY
SERIAL 02997339-09999999 -
2526-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
2626-16977 OIL SEAL, WATER PUMP BASE
SERIAL 02803562-02874263OIL SEAL, WATER PUMP BASE
SERIAL 02803562-02874263 -
2626-55682 OIL SEAL, WATER PUMP BASE
SERIAL 02997339-09999999OIL SEAL, WATER PUMP BASE
SERIAL 02997339-09999999 -
2717-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMPDOWEL PIN, WATER PUMP BASE TO WATER PUMP
-
2827-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
29324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
3027-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODYGASKET, UPPER - FACE PLATE TO WATER PUMP BODY
-
3146-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
3248752T INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
3326-16977 OIL SEAL, WATER PUMP BODYOIL SEAL, WATER PUMP BODY
-
3426-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
3547-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
3628-8M0032834 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
3710-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
-
3813-26992 LOCKWASHER, WATER PUMP BODY SCREWLOCKWASHER, WATER PUMP BODY SCREW
-
3912-29245 WASHER, WATER PUMP BODY FASTENING SCREW AND STUDWASHER, WATER PUMP BODY FASTENING SCREW AND STUD
-
4011-826709109 NUT, WATER PUMP BODY FASTENING STUDNUT, WATER PUMP BODY FASTENING STUD
-
4112-36001 WASHER, WATER PUMP BODY FASTENING STUDWASHER, WATER PUMP BODY FASTENING STUD
-
4211-826709111 NUT, WATER PUMP BODY FASTENING STUDNUT, WATER PUMP BODY FASTENING STUD
-
4325-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
4423-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
4525-30613 "O" RING, UPPER - DRIVE SHAFT
SERIAL #2803562-0#287426"O" RING, UPPER - DRIVE SHAFT
SERIAL #2803562-0#287426 -
4637641001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
4738051 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
4876062A1 SHAFT ASSEMBLY, SHIFT - LOWERSHAFT ASSEMBLY, SHIFT - LOWER
-
4953-29641 "E" RING, RETAINING, LOWER SHIFT SHAFT"E" RING, RETAINING, LOWER SHIFT SHAFT
-
5025-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
5123-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
5226-24590 OIL SEAL, SHIFT SHAFT BUSHING (LOWER)OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
-
5226-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
-
5312-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
5478036 SPACER, LOWER - REVERSE LOCKINGSPACER, LOWER - REVERSE LOCKING
-
5543308T1 CAM, REVERSE LOCKINGCAM, REVERSE LOCKING
-
5610-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
5712-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
5819-48750 PLUG, GEAR HOUSING FLUSHING HOLEPLUG, GEAR HOUSING FLUSHING HOLE
-
5912-49221 WASHER, GEAR HOUSING FLUSHING HOLE PLUGWASHER, GEAR HOUSING FLUSHING HOLE PLUG
