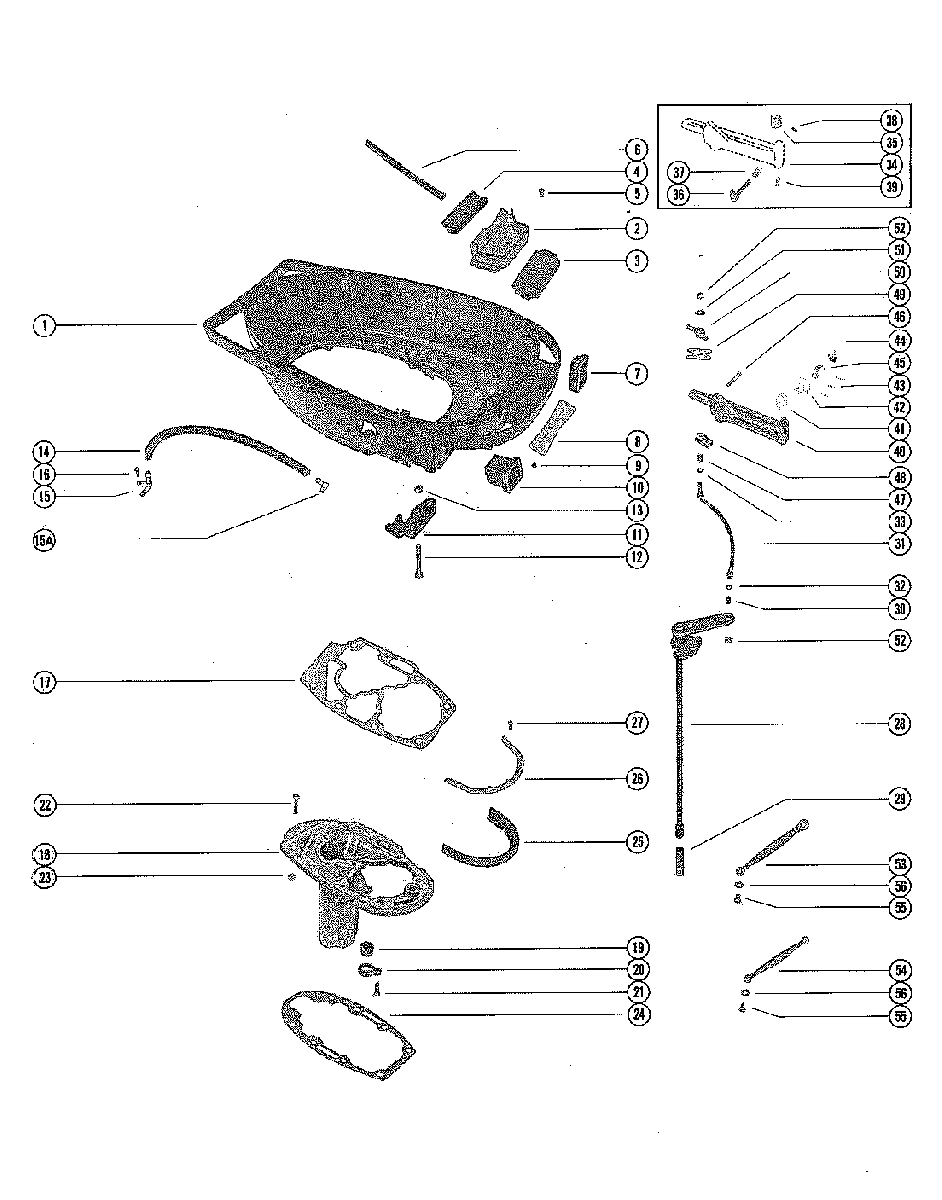

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 650 (4 CYL.) 2803562 THRU 3293183

  • №
    Артикул
    Название
  • 1
    2115-3807 COWL, BOTTOM
    SERIAL #2803562-#2869698
    COWL, BOTTOM
    SERIAL #2803562-#2869698
  • 1
    2115-3926A2 COWL, BOTTOM
    SERIAL #2869699-09999999
    COWL, BOTTOM
    SERIAL #2869699-09999999
  • 2
    52862A2 DRIP TRAY ASSEMBLY, BOTTOM COWL
    DRIP TRAY ASSEMBLY, BOTTOM COWL
  • 3
    37940 PAD, SOUND - DRIP TRAY
    PAD, SOUND - DRIP TRAY
  • 4
    37903 FLANGE, RUBBER - DRIP TRAY
    FLANGE, RUBBER - DRIP TRAY
  • 5
    10-35519 SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
    SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
  • 6
    32-8M0108355 HOSE, DRIP TRAY TO BOTTOM COWL (8")
    HOSE, DRIP TRAY TO BOTTOM COWL (8")
  • 7
    37638 BOOT, CONTROL CABLES - BOTTOM COWL
    SERIAL #2803562-#2869698
    BOOT, CONTROL CABLES - BOTTOM COWL
    SERIAL #2803562-#2869698
  • 7
    39616 BOOT, CONTROL CABLES - BOTTOM COWL
    SERIAL #2869699-09999999
    BOOT, CONTROL CABLES - BOTTOM COWL
    SERIAL #2869699-09999999
  • 8
    23760 BAFFLE, BOTTOM COWL
    BAFFLE, BOTTOM COWL
  • 9
    10-52867 SCREW, BAFFLE TO BOTTOM COWL
    SCREW, BAFFLE TO BOTTOM COWL
  • 10
    37637 BOOT, FUEL CONNECTOR - BOTTOM COWL
    BOOT, FUEL CONNECTOR - BOTTOM COWL
  • 11
    37445 SUPPORT, WIRING HARNESS - BOTTOM COWL
    SUPPORT, WIRING HARNESS - BOTTOM COWL
  • 12
    10-37561 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (2 1/2")
    SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (2 1/2")
  • 12
    10-69029 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1 3/4")
    SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1 3/4")
  • 13
    11-20184 NUT, WIRING HARNESS SUPPORT SCREW
    NUT, WIRING HARNESS SUPPORT SCREW
  • 14
    32-8M0108355 HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
    HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
  • 15
    52889 NOZZLE, TELL TALE HOSE TO BOTTOM COWL
    NOZZLE, TELL TALE HOSE TO BOTTOM COWL
  • 15A
    22-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVER
    ELBOW, TELL TALE HOSE TO EXHAUST COVER
  • 16
    10-41228 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
    SERIAL #2803562-#2869698
    SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
    SERIAL #2803562-#2869698
  • 16
    10-35519 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
    SERIAL #2869699-09999999
    SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
    SERIAL #2869699-09999999
  • 17
    27-47257 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
    GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
  • 18
    56306A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    PLATE ASSEMBLY, EXHAUST EXTENSION
  • 19
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 20
    38448 RETAINER, WATER TUBE SEAL
    RETAINER, WATER TUBE SEAL
  • 21
    10-69069 SCREW, RETAINER TO EXTENSION PLATE (3/4")
    SCREW, RETAINER TO EXTENSION PLATE (3/4")
  • 22
    10-24226 SCREW, EXTENSION PLATE TO DRIVE SHAFT HOUSING (1 1/4")
    SCREW, EXTENSION PLATE TO DRIVE SHAFT HOUSING (1 1/4")
  • 23
    11-20184 NUT, EXHAUST EXTENSION PLATE SCREW
    NUT, EXHAUST EXTENSION PLATE SCREW
  • 24
    27-48801 GASKET, EXHAUST EXTIONSION PLATE TO DRIVE SHAFT HOUSING
    GASKET, EXHAUST EXTIONSION PLATE TO DRIVE SHAFT HOUSING
  • 25
    37918 SEAL, EXHAUST EXTENSION PLATE
    SEAL, EXHAUST EXTENSION PLATE
  • 26
    99358 STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL
    STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL
  • 27
    10-37571 SCREW, SEAL AND STRIP TO EXHAUST EXTENSION PLATE (1/2")
    SCREW, SEAL AND STRIP TO EXHAUST EXTENSION PLATE (1/2")
  • 28
    60304A55 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
  • 28
    60304A54 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
  • 29
    93960A1 COUPLING, SHIFT SHAFT
    COUPLING, SHIFT SHAFT
  • 30
    23-26600 BUSHING, NYLON - UPPER SHIFT SHAFT
    BUSHING, NYLON - UPPER SHIFT SHAFT
  • 31
    73402 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 32
    12-24664 WASHER, LINK ROD (SHIFT LEVER END)
    WASHER, LINK ROD (SHIFT LEVER END)
  • 33
    13-29720 WASHER, WAVE - LINK ROD
    WASHER, WAVE - LINK ROD
  • 34
    52732A6 BRACKET ASSEMBLY, ANCHOR CONTROL CABLES
    SERIAL #2803562-#2869698
    BRACKET ASSEMBLY, ANCHOR CONTROL CABLES
    SERIAL #2803562-#2869698
  • 35
    38802 CAP, BRASS BARREL OF THROTTLE CABLE
    SERIAL #2803562-#2869698
    CAP, BRASS BARREL OF THROTTLE CABLE
    SERIAL #2803562-#2869698
  • 35
    49935 CAP, BRASS BARREL OF THROTTLE CABLE
    SERIAL #2803562-#2869698
    CAP, BRASS BARREL OF THROTTLE CABLE
    SERIAL #2803562-#2869698
  • 36
    49932A1 LEVER ASSEMBLY, CONTROL CABLE LOCKING - ANCHOR BRACKET
    SERIAL #2803562-#2869698
    LEVER ASSEMBLY, CONTROL CABLE LOCKING - ANCHOR BRACKET
    SERIAL #2803562-#2869698
  • 37
    24-37911 SPRING, CONTROL CABLE LOCKING LEVER
    SERIAL #2803562-#2869698
    SPRING, CONTROL CABLE LOCKING LEVER
    SERIAL #2803562-#2869698
  • 38
    17-239281 PIN, ROLL - CONTROL CABLE LOCKING LEVER
    SERIAL #2803562-#2869698
    PIN, ROLL - CONTROL CABLE LOCKING LEVER
    SERIAL #2803562-#2869698
  • 39
    24-38472 SPRING, CONTROL CABLE TENSION - ANCHOR BRACKET
    SERIAL #2803562-#2869698
    SPRING, CONTROL CABLE TENSION - ANCHOR BRACKET
    SERIAL #2803562-#2869698
  • 40
    52732A6 BRACKET, ANCHOR - CONTROL CABLES SERIAL AND UP
    SERIAL #2869699-09999999
    BRACKET, ANCHOR - CONTROL CABLES SERIAL AND UP
    SERIAL #2869699-09999999
  • 41
    39519 CAP, RETAINER - ANCHOR BRACKET
    SERIAL #2869699-09999999
    CAP, RETAINER - ANCHOR BRACKET
    SERIAL #2869699-09999999
  • 42
    87609A1 LEVER, NYLON - SHIFT CABLE LOCKING
    SERIAL #2869699-09999999
    LEVER, NYLON - SHIFT CABLE LOCKING
    SERIAL #2869699-09999999
  • 43
    17-47175 PIN, LOCKING LEVER AND COVER FASTENING
    SERIAL #2869699-09999999
    PIN, LOCKING LEVER AND COVER FASTENING
    SERIAL #2869699-09999999
  • 44
    39667 COVER, NYLON - SHIFT CABLE
    SERIAL #2869699-09999999
    COVER, NYLON - SHIFT CABLE
    SERIAL #2869699-09999999
  • 45
    39536 LINK, LOCKING LEVER TO COVER
    SERIAL #2869699-09999999
    LINK, LOCKING LEVER TO COVER
    SERIAL #2869699-09999999
  • 46
    10-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
    SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
  • 47
    24-20099 SPRING, LINK ROD TO GUIDE BLOCK
    SPRING, LINK ROD TO GUIDE BLOCK
  • 48
    37896 GUIDE BLOCK, LINK ROD
    GUIDE BLOCK, LINK ROD
  • 49
    52100 WEAR PLATE, LINK ROD
    WEAR PLATE, LINK ROD
  • 50
    8M0036768 LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
    LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
  • 51
    12-69056 WASHER, CONTROL CABLE LATCH LINK ROD
    WASHER, CONTROL CABLE LATCH LINK ROD
  • 52
    11-826709109 NUT, LINK ROD
    NUT, LINK ROD
  • 53
    46933A1 GROUND STRAP ASSEMBLY, CRANKCASE TO BOTTOM COWL
    GROUND STRAP ASSEMBLY, CRANKCASE TO BOTTOM COWL
  • 54
    46933A2 GROUND STRAP ASSEMBLY, DRIVE SHAFT HOUSING TO BOTTOM COWL
    GROUND STRAP ASSEMBLY, DRIVE SHAFT HOUSING TO BOTTOM COWL
  • 55
    10-62568 SCREW, GROUND STRAP ATTACHING (3/8")
    SCREW, GROUND STRAP ATTACHING (3/8")
  • 56
    13-69432 WASHER, GROUND STRAP SCREW
    WASHER, GROUND STRAP SCREW
