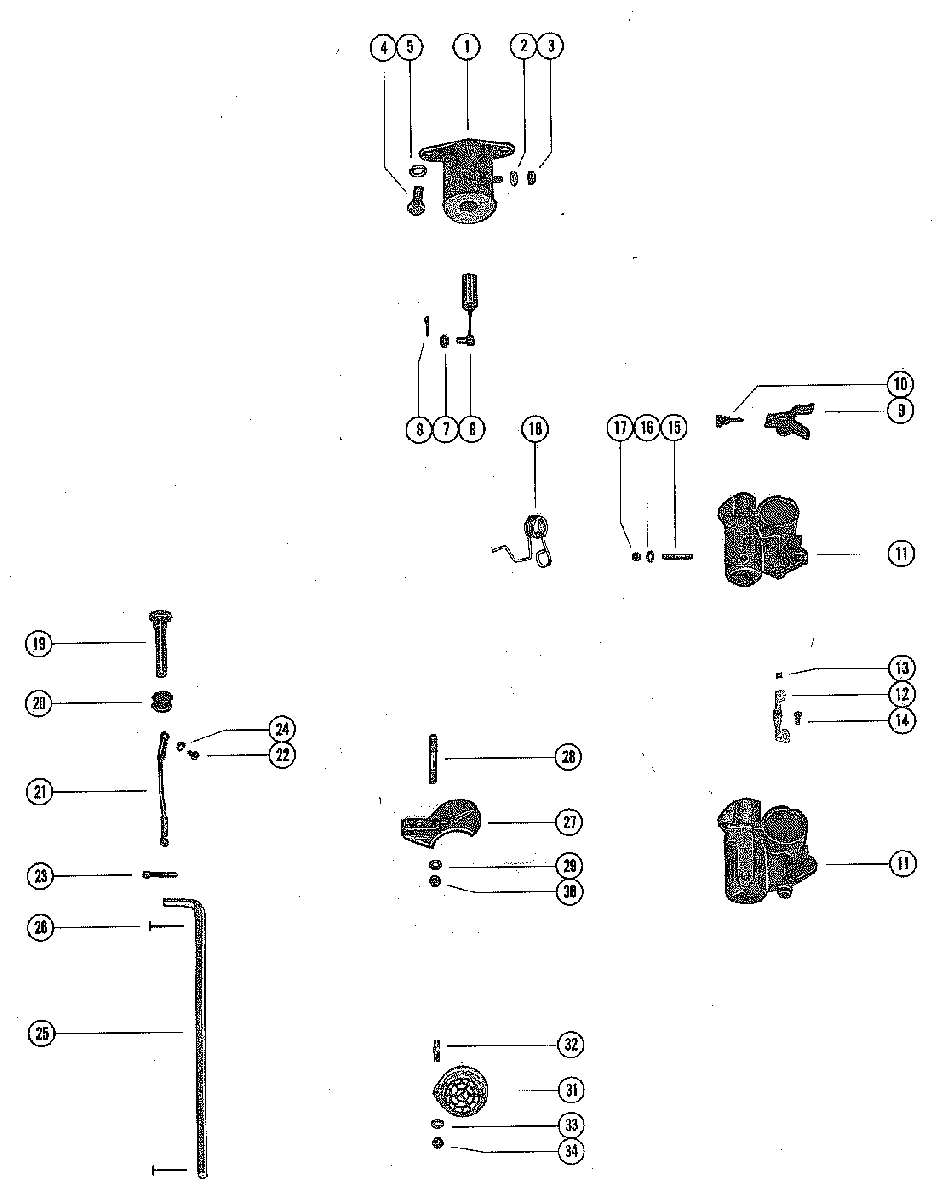

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 650 (4 CYL.) 2803562 THRU 3293183

  • №
    Артикул
    Название
  • 1
    89-889274 CHOKE SOLENOID
    CHOKE SOLENOID
  • 2
    13-26996 LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID
    LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID
  • 3
    11-68219 NUT, WIRE HARNESS LEAD TO CHOKE SOLENOID
    NUT, WIRE HARNESS LEAD TO CHOKE SOLENOID
  • 4
    10-25299 SCREW, CHOKE SOLENOID ATTACHING (3/4")
    SCREW, CHOKE SOLENOID ATTACHING (3/4")
  • 5
    13-26993 LOCKWASHER, CHOKE SOLENOID ATTACHING SCREW
    LOCKWASHER, CHOKE SOLENOID ATTACHING SCREW
  • 6
    54283A2 PLUNGER AND LINK ASSEMBLY
    SERIAL #2803562-#2869698
    PLUNGER AND LINK ASSEMBLY
    SERIAL #2803562-#2869698
  • 6
    54283A5 PLUNGER AND LINK ASSMBLY
    SERIAL #2869699-09999999
    PLUNGER AND LINK ASSMBLY
    SERIAL #2869699-09999999
  • 7
    12-30164 WASHER, PLUNGER AND LINK
    WASHER, PLUNGER AND LINK
  • 8
    18-26953 COTTER PIN, LINK TO UPPER CHOKE LEVER
    COTTER PIN, LINK TO UPPER CHOKE LEVER
  • 9
    74371 CLUSTER, THROTTLE LEVER
    CLUSTER, THROTTLE LEVER
  • 10
    1395-6027 SCREW, CLUSTER TO THROTTLE LEVER
    SCREW, CLUSTER TO THROTTLE LEVER
  • 11
    1335-4027 CARBURETOR ASSEMBLY, COMPLETE
    CARBURETOR ASSEMBLY, COMPLETE
  • 12
    53649A2 THROTTLE PICK-UP BRACKET ASSEMBLY
    THROTTLE PICK-UP BRACKET ASSEMBLY
  • 13
    28-89694 INSERT, THROTTLE PICK-UP BRACKET
    INSERT, THROTTLE PICK-UP BRACKET
  • 14
    10-53651 SCREW, THROTTLE BRACKET MOUNTING (1")
    SCREW, THROTTLE BRACKET MOUNTING (1")
  • 16
    23-32427 SPACER, CHOKE ROD SPRING STUD
    SPACER, CHOKE ROD SPRING STUD
  • 17
    11-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUD
    NUT, CHOKE ROD SPRING TO CARBURETOR STUD
  • 18
    24-37678 SPRING, TENSION - CHOKE ROD
    SPRING, TENSION - CHOKE ROD
  • 19
    90242A1 KNOB, CHOKE ROD
    KNOB, CHOKE ROD
  • 20
    25-20116 GROMMET, CHOKE ROD
    GROMMET, CHOKE ROD
  • 21
    56194 CABLE, CHOKE KNOB TO CHOKE ROD
    CABLE, CHOKE KNOB TO CHOKE ROD
  • 22
    10-69022 SCREW, LINK TO CHOKE KNOB
    SCREW, LINK TO CHOKE KNOB
  • 23
    18-26953 COTTER PIN, LINK TO CHOKE KNOB
    COTTER PIN, LINK TO CHOKE KNOB
  • 24
    13-26996 LOCKWASHER, LINK SCREW AND PIN
    LOCKWASHER, LINK SCREW AND PIN
  • 25
    56195 ROD, CHOKE
    ROD, CHOKE
  • 26
    17-25391 RIVET, CHOKE SHUTTER TO CHOKE ROD
    RIVET, CHOKE SHUTTER TO CHOKE ROD
  • 27
    47804 SHUTTER, CHOKE - CARBURETOR
    SHUTTER, CHOKE - CARBURETOR
  • 28
    16-69036 STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1 3/8")
    STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1 3/8")
  • 29
    12-30164 WASHER, CHOKE SHUTTER TO CARBURETOR STUD
    WASHER, CHOKE SHUTTER TO CARBURETOR STUD
  • 30
    11-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUD
    NUT, CHOKE SHUTTER TO CARBURETOR STUD
  • 31
    35-56197 SCREEN, FILTER - CARBURETOR
    SCREEN, FILTER - CARBURETOR
  • 32
    16-69037 STUD, FILTER SCREEN TO CARBURETOR (1 1/8")
    STUD, FILTER SCREEN TO CARBURETOR (1 1/8")
  • 33
    12-30164 WASHER, CARBURETOR SCREEN STUD
    WASHER, CARBURETOR SCREEN STUD
  • 34
    11-20110 NUT, CARBURETOR SCREEN STUD
    NUT, CARBURETOR SCREEN STUD
