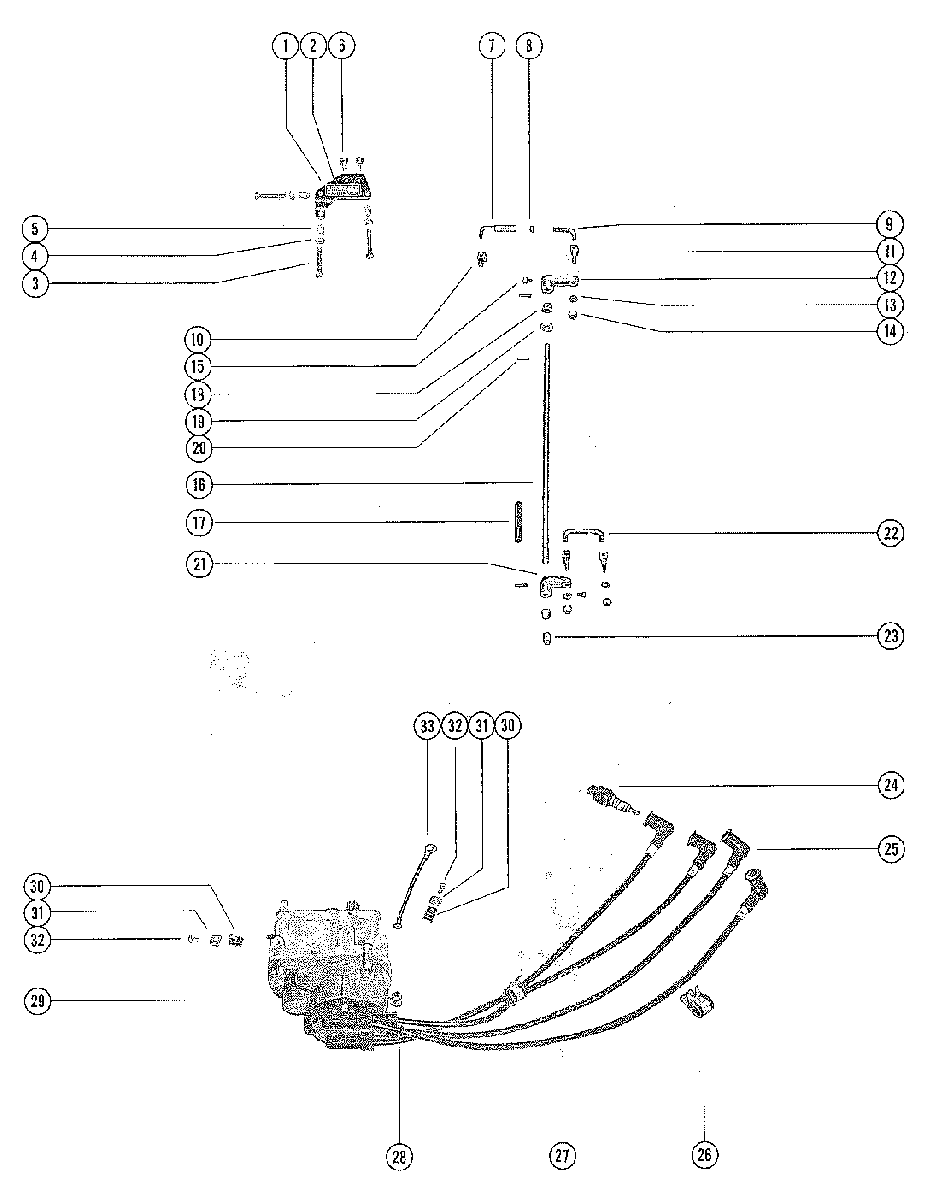

MAGNETO VERTICAL LINKAGE AND EXTERNAL PARTS для Mercury - 650 (4 CYL.) 1542745 THRU 1765043
-
№АртикулНазвание
-
153458 PLATE, THROTTLE STOPPLATE, THROTTLE STOP
-
237-29315 DECAL, THROTTLE STOP PLATE (STOP ADJUSTMENTS)DECAL, THROTTLE STOP PLATE (STOP ADJUSTMENTS)
-
310-24933 SCREW, ADJUSTING - THROTTLE STOPSCREW, ADJUSTING - THROTTLE STOP
-
411-20088 NUT, THROTTLE STOP ADJUSTING SCREWNUT, THROTTLE STOP ADJUSTING SCREW
-
526852 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
610-69035 SCREW, THROTTLE STOP PLATE TO ADAPTER (5/8")
SEE BLOCK COMMENTSSCREW, THROTTLE STOP PLATE TO ADAPTER (5/8")
SEE BLOCK COMMENTS -
725996A1 SWIVEL AND LINK ROD ASSEMBLYSWIVEL AND LINK ROD ASSEMBLY
-
811-25168 NUT, ADJUSTING - UPPER LINK RODNUT, ADJUSTING - UPPER LINK ROD
-
927949 ROD, LINK - UPPERROD, LINK - UPPER
-
935626 ROD, LINK - UPPERROD, LINK - UPPER
-
1027947 SWIVEL, LINKAGE - ECONOMISER COLLARSWIVEL, LINKAGE - ECONOMISER COLLAR
-
1127948 SWIVEL, UPPER AND LOWER LINK RODSSWIVEL, UPPER AND LOWER LINK RODS
-
1230582 LEVER, LINKAGE - UPPERLEVER, LINKAGE - UPPER
-
1312-29245 WASHER, UPPER AND LOWER SWIVELWASHER, UPPER AND LOWER SWIVEL
-
1411-8267089 NUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKETNUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKET
-
1510-25781 SCREW, SET - LINKAGE LEVERSCREW, SET - LINKAGE LEVER
-
1633019 SHAFT, VERTICALSHAFT, VERTICAL
-
1732-35899 TUBE, VERTICAL SHAFTTUBE, VERTICAL SHAFT
-
1823-26954 BUSHING, NYLON - VERTICAL SHAFTBUSHING, NYLON - VERTICAL SHAFT
-
1912-20553 WASHER, VERTICAL SHAFT - CENTERWASHER, VERTICAL SHAFT - CENTER
-
2017-25319 ROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERSROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERS
-
2130788 LEVER, LINKAGE - LOWERLEVER, LINKAGE - LOWER
-
2233004 ROD, LINK - LOWERROD, LINK - LOWER
-
2323-33017 SPACER, VERTICAL SHAFT - LOWERSPACER, VERTICAL SHAFT - LOWER
-
2433-813413 SPARK PLUGSPARK PLUG
-
2585-63709A1 PROTECTOR, SPARK PLUGPROTECTOR, SPARK PLUG
-
2654-29425 CLIP, HIGH TENSION LEAD CABLE FASTENINGCLIP, HIGH TENSION LEAD CABLE FASTENING
-
2784-821945A46 CABLE, HIGH TENSION LEAD - SPARK PLUGCABLE, HIGH TENSION LEAD - SPARK PLUG
-
2825-25429 "O" RING, HIGH TENSION LEAD CABLE TO END CAP COVER"O" RING, HIGH TENSION LEAD CABLE TO END CAP COVER
-
29394-2271A2 MAGNETO ASSEMBLY, COMPLETE (4D-4)MAGNETO ASSEMBLY, COMPLETE (4D-4)
-
3054-25231 CLIP, MERCURY SWITCH AND HARNESS LEADS TO MAGNETOCLIP, MERCURY SWITCH AND HARNESS LEADS TO MAGNETO
-
318M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
-
3210-20401 SCREW, LEAD CLIP TO MAGNETOSCREW, LEAD CLIP TO MAGNETO
-
33394-1134A1 GROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASEGROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASE
