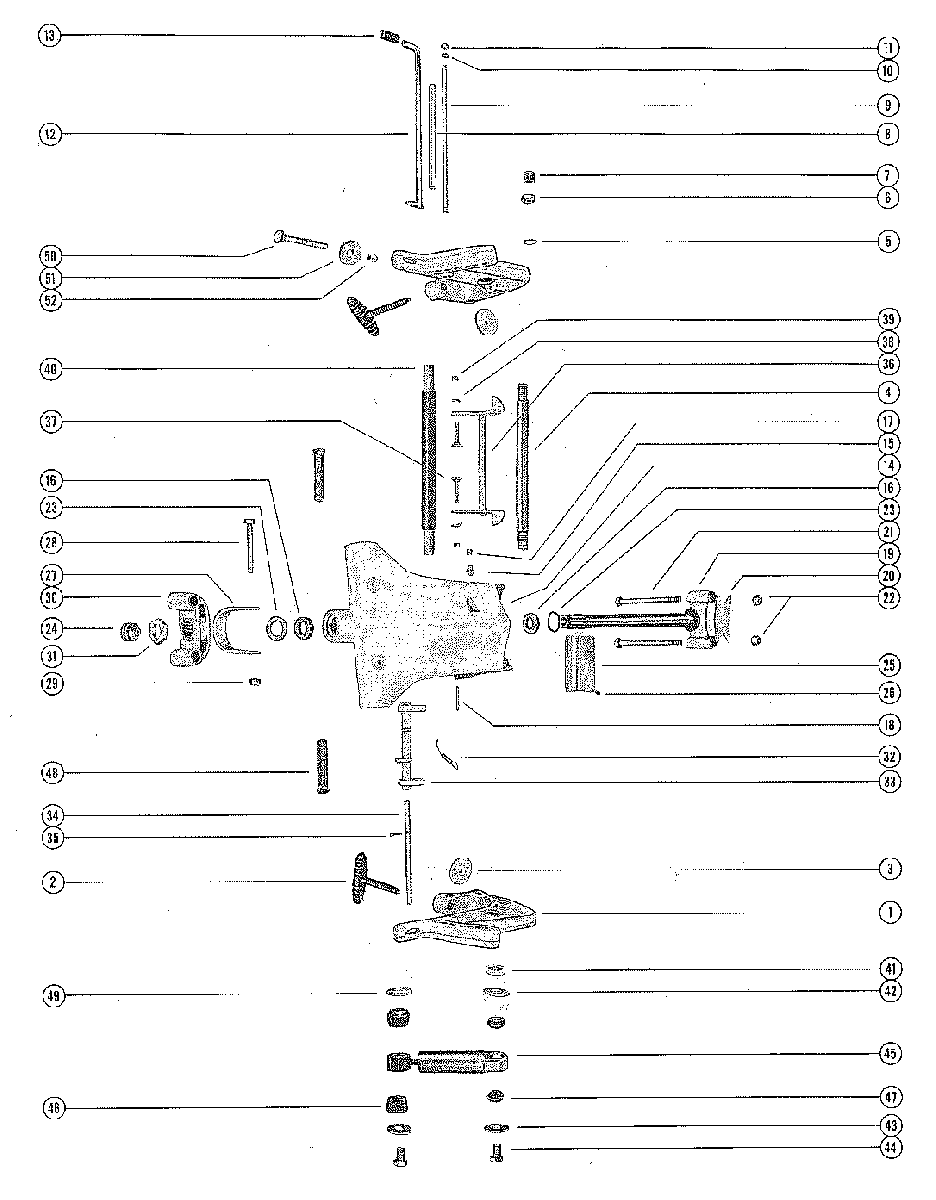

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 650 (4 CYL.) 1542745 THRU 1765043

  • №
    Артикул
    Название
  • 1
    1440-3296A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    28403A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-28404 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    8M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    12-52864 SHIM, CLAMP BRACKET TILT TUBE
    SHIM, CLAMP BRACKET TILT TUBE
  • 6
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 7
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 8
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 9
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-22053 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 13
    32-28052 SLEEVE, RUBBER - TILT LOCK PIN BUMPER 1
    SLEEVE, RUBBER - TILT LOCK PIN BUMPER 1
  • 14
    1453-2688A1 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 15
    22-69059 FITTING, GREASE
    FITTING, GREASE
  • 16
    26-31783 OIL SEAL
    OIL SEAL
  • 17
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • 18
    17-25598 PIN, REVERSE LOCK SPRING ATTACHING
    PIN, REVERSE LOCK SPRING ATTACHING
  • 19
    17-31772A1 SWIVEL PIN AND TOP YOKE ASSEMBLY
    SWIVEL PIN AND TOP YOKE ASSEMBLY
  • 20
    28203 BUMPER, TOP YOKE
    BUMPER, TOP YOKE
  • 21
    10-30453 BOLT, TOP YOKE TO UPPER MOUNT
    BOLT, TOP YOKE TO UPPER MOUNT
  • 22
    11-34933 NUT, TOP YOKE BOLT FASTENING
    NUT, TOP YOKE BOLT FASTENING
  • 23
    12-31815 WASHER, SWIVEL PIN - LOWER (TOP WASHER OPTIONAL)
    WASHER, SWIVEL PIN - LOWER (TOP WASHER OPTIONAL)
  • 24
    31234 BOOT, RUBBER - UPPER SHIFT SHAFT
    BOOT, RUBBER - UPPER SHIFT SHAFT
  • 25
    38-56267 SERIAL PLATE
    SERIAL PLATE
  • 26
    10-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
  • 27
    28205T STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
    STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
  • 28
    10-28200 SCREW, STRAP STOP TO DRIVE SHAFT HOUSING
    SCREW, STRAP STOP TO DRIVE SHAFT HOUSING
  • 29
    11-25269 NUT, STRAP STOP FASTENING SCREW
    NUT, STRAP STOP FASTENING SCREW
  • 30
    31775 YOKE, BOTTOM
    YOKE, BOTTOM
  • 31
    11-71956 NUT, SWIVEL PIN RETAINING
    NUT, SWIVEL PIN RETAINING
  • 32
    24-29821 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 33
    26903A4 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
  • 34
    56349 SHAFT, REVERSE LOCK PIVOT
    SHAFT, REVERSE LOCK PIVOT
  • 35
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 36
    30126A1 TILT STOP LEVER ASSEMBLY
    TILT STOP LEVER ASSEMBLY
  • 37
    10-30128 SCREW, TILT STOP LEVER ANCHOR
    SCREW, TILT STOP LEVER ANCHOR
  • 38
    13-31030 WASHER, WAVE - LEVER ANCHOR SCREW
    WASHER, WAVE - LEVER ANCHOR SCREW
  • 39
    11-29250 NUT, LEVER ANCHOR SCREW
    NUT, LEVER ANCHOR SCREW
  • 40
    55-28416 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
  • 41
    23-28199 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
    SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
  • 42
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    WASHER, UPPER BUSHING RETAINER (INNER)
  • 43
    12-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
    WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
  • 44
    10-28450 SCREW, NYLOCK - UPPER AND LOWER SHOCK MOUNTING PIN
    SCREW, NYLOCK - UPPER AND LOWER SHOCK MOUNTING PIN
  • 45
    55-58780A7 SHOCK ABSORBER
    SHOCK ABSORBER
  • 46
    23-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
    BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
  • 47
    23-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
    BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
  • 48
    55-696531 PIN, LOWER SHOCK MOUNTING
    PIN, LOWER SHOCK MOUNTING
  • 49
    12-840400 WASHER, LOWER BUSHING RETAINER (INNER)
    WASHER, LOWER BUSHING RETAINER (INNER)
  • 50
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM
    BOLT, CLAMP BRACKET TO BOAT TRANSOM
  • 51
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 52
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
