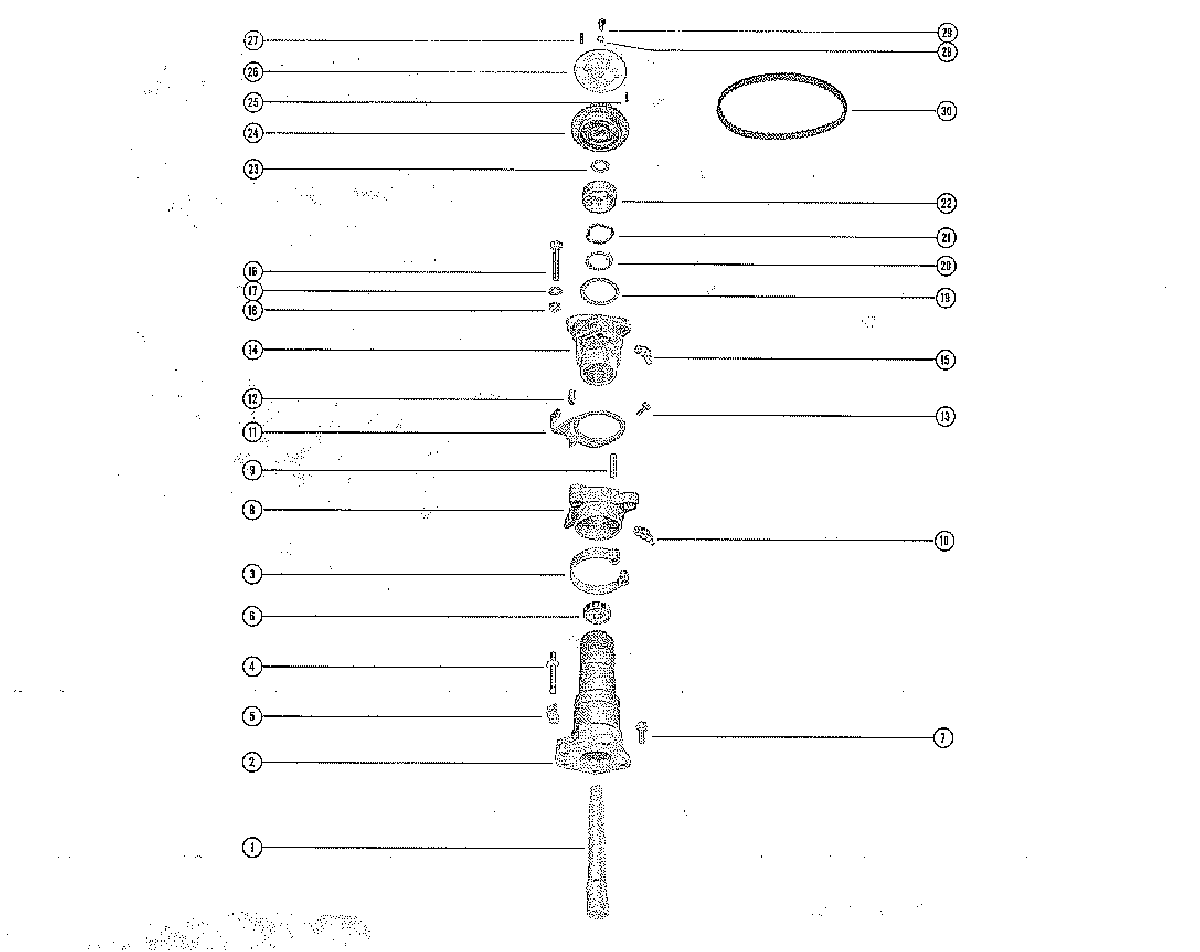

MAGNETO ADAPTOR AND PILOT ASSEMBLY для Mercury - 650 (4 CYL.) 1542745 THRU 1765043
-
№АртикулНазвание
-
145-33007 SHAFT, DRIVE - MAGNETOSHAFT, DRIVE - MAGNETO
-
239561A1 MAGNETO PILOT ASSEMBLYMAGNETO PILOT ASSEMBLY
-
324-27944 SPRING, HORSESHOE - MAGNETO PILOTSPRING, HORSESHOE - MAGNETO PILOT
-
417-27962 PIN, ANCHOR - HORSESHOE SPRING TO PILOTPIN, ANCHOR - HORSESHOE SPRING TO PILOT
-
533020 STOP, SPARK ADVANCE - MAGNETO PILOTSTOP, SPARK ADVANCE - MAGNETO PILOT
-
630-20066 BEARING, BALL - MAGNETO PILOTBEARING, BALL - MAGNETO PILOT
-
710-30110 SCREW, PILOT ASSEMBLY TO MAGNETOSCREW, PILOT ASSEMBLY TO MAGNETO
-
833870A1 ECONOMISER COLLAR AND PIN ASSEMBLYECONOMISER COLLAR AND PIN ASSEMBLY
-
848103A1 ECONOMISER COLLAR AND PIN ASSEMBLYECONOMISER COLLAR AND PIN ASSEMBLY
-
917-27961 PIN, ECONOMISER COLLAR - SPRING RETAINERPIN, ECONOMISER COLLAR - SPRING RETAINER
-
1022-25094 FITTING, GREASE - ECONOMISER COLLARFITTING, GREASE - ECONOMISER COLLAR
-
1133147A1 THROTTLE ACTUATOR ASSEMBLYTHROTTLE ACTUATOR ASSEMBLY
-
1223-26602 BUSHING, NYLON - THROTTLE ACTUATORBUSHING, NYLON - THROTTLE ACTUATOR
-
1310-31009 SCREW, THROTTLE ACTUATOR TO ECONOMISER COLLARSCREW, THROTTLE ACTUATOR TO ECONOMISER COLLAR
-
1430408 ADAPTOR, MAGNETOADAPTOR, MAGNETO
-
1522-25094 FITTING, GREASE - MAGNETO ADAPTORFITTING, GREASE - MAGNETO ADAPTOR
-
1610-78841 SCREW, MAGNETO ADAPTOR AND PILOT TO CRANKCASESCREW, MAGNETO ADAPTOR AND PILOT TO CRANKCASE
-
1712-20084 WASHER, MAGNETO ADAPTOR AND PILOT FASTENING SCREWWASHER, MAGNETO ADAPTOR AND PILOT FASTENING SCREW
-
1811-22053 NUT, MAGNETO ADAPTOR AND PILOT FASTENING SCREWNUT, MAGNETO ADAPTOR AND PILOT FASTENING SCREW
-
1912-27939 WASHER, MAGNETO PILOTWASHER, MAGNETO PILOT
-
2014-27960 TAB WASHER, ADAPTOR CAP FASTENINGTAB WASHER, ADAPTOR CAP FASTENING
-
2113-27959 WASHER, WAVE - MAGNETO BALL BEARING TENSIONWASHER, WAVE - MAGNETO BALL BEARING TENSION
-
2227955 CAP, MAGNETO ADAPTOR AND PILOT FASTENINGCAP, MAGNETO ADAPTOR AND PILOT FASTENING
-
2323-29909 SPACER, DRIVEN PULLEYSPACER, DRIVEN PULLEY
-
2429906A1 DRIVEN PULLEY ASSEMBLYDRIVEN PULLEY ASSEMBLY
-
2517-29908 PIN, ROLL - FLANGE LOCATINGPIN, ROLL - FLANGE LOCATING
-
2629907 FLANGE, DRIVEN PULLEYFLANGE, DRIVEN PULLEY
-
2728-29910 KEY, MAGNETO DRIVINGKEY, MAGNETO DRIVING
-
2813-26996 LOCKWASHER, PULLEY CLAMPING SCREWLOCKWASHER, PULLEY CLAMPING SCREW
-
2910-41506 SCREW, PULLEY CLAMPINGSCREW, PULLEY CLAMPING
-
3020140 BELT, TIMINGBELT, TIMING
