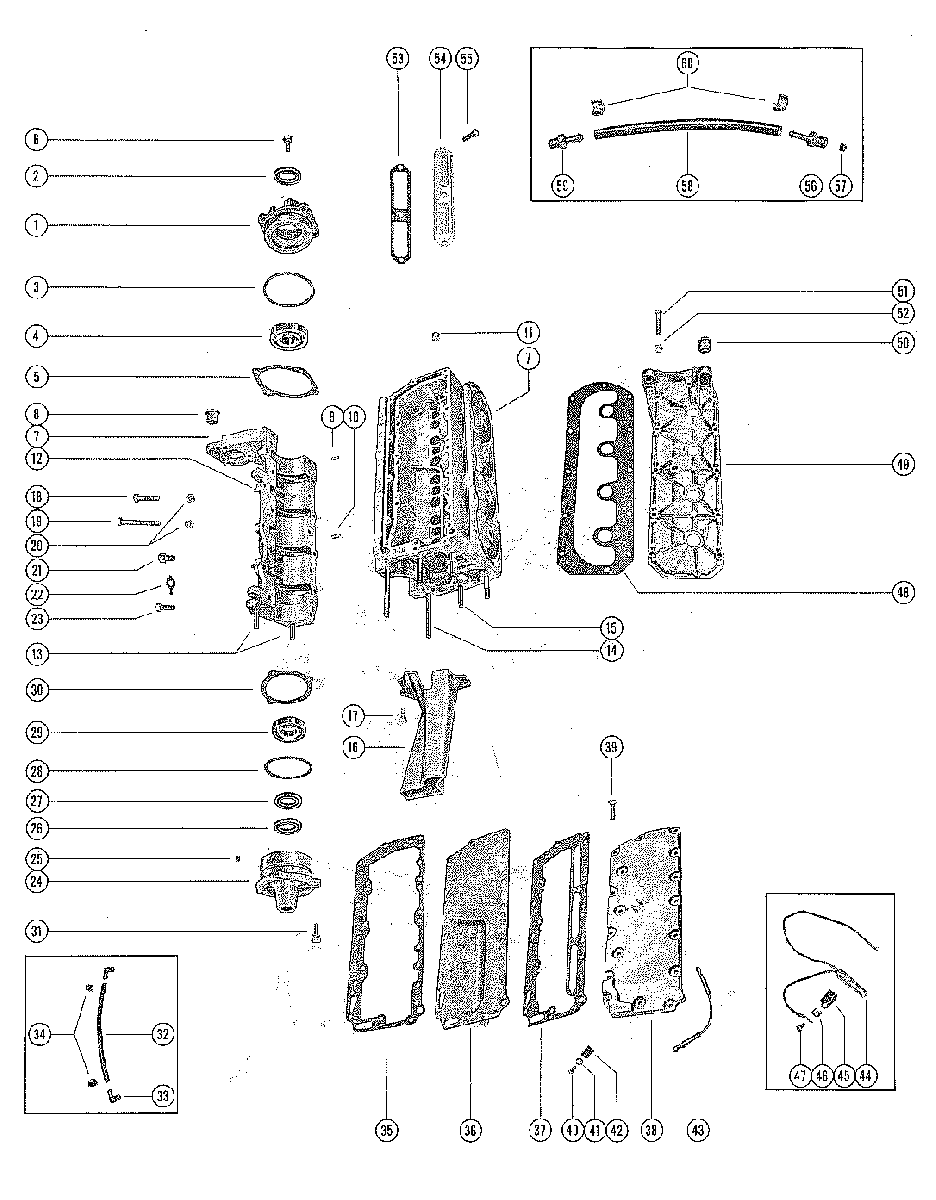

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 650 (4 CYL.) 1542745 THRU 1765043
-
№АртикулНазвание
-
11128-1890A1 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
226-41953 OIL SEALOIL SEAL
-
325-31305 "O" RING"O" RING
-
430-62567T BALL BEARINGBALL BEARING
-
515-31283A1 SHIM, UPPER END CAP TO CRANKCASE (.002-3-5-10)SHIM, UPPER END CAP TO CRANKCASE (.002-3-5-10)
-
610-30225 SCREW, UPPER END CAP MOUNTINGSCREW, UPPER END CAP MOUNTING
-
7834-2412A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLYCYLINDER BLOCK AND CRANKCASE ASSEMBLY
-
823-26348 BUSHING, CRANKCASE - COWL MOUNTING STUDBUSHING, CRANKCASE - COWL MOUNTING STUD
-
917-20032 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARINGDOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
-
1017-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCKDOWEL PIN, CRANKCASE TO CYLINDER BLOCK
-
1122-328022 PLUG, PIPE - WATER PRESSURE HOLE (CYLINDER BLOCK)PLUG, PIPE - WATER PRESSURE HOLE (CYLINDER BLOCK)
-
1216-21831 STUD, CARBURETOR MOUNTING (1 1/4")STUD, CARBURETOR MOUNTING (1 1/4")
-
1316-64281 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 7/8")STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 7/8")
-
1416-26134 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4 1/16")STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4 1/16")
-
1516-26135 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 5/16")STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 5/16")
-
1636066A1 EXTENSION, EXHAUST - CYLINDER BLOCK
N.L.A.-ORDER 36066A1 KITEXTENSION, EXHAUST - CYLINDER BLOCK
N.L.A.-ORDER 36066A1 KIT -
1636066A1 EXTENSION, EXHAUST - CYLINDER BLOCKEXTENSION, EXHAUST - CYLINDER BLOCK
-
--27-36059 GASKET, EXHAUST EXTENSION TO CYLINDER BLOCKGASKET, EXHAUST EXTENSION TO CYLINDER BLOCK
-
--13-26993 LOCKWASHER, EXHAUST EXTENSION FASTENING SCREWLOCKWASHER, EXHAUST EXTENSION FASTENING SCREW
-
1710-25299 SCREW, EXHAUST EXTENSION TO CYLINDER BLOCK (5/16 - 18 X 3/4)SCREW, EXHAUST EXTENSION TO CYLINDER BLOCK (5/16 - 18 X 3/4)
-
1710-29282 SCREW, EXHAUST EXTENSION TO CYLINDER BLOCK (1/4 - 20 X 3/4)SCREW, EXHAUST EXTENSION TO CYLINDER BLOCK (1/4 - 20 X 3/4)
-
1810-26132 SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2")
-
1810-32293 SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
-
1810-21449 SCREW, CRANKCASE TO CYLINDER BLOCK (2")SCREW, CRANKCASE TO CYLINDER BLOCK (2")
-
1910-33008 SCREW, CRANKCASE TO CYLINDER BLOCK (3 1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (3 1/2")
-
--12-20084 WASHER, GROUND STRAP AND CRANKCASE SCREWWASHER, GROUND STRAP AND CRANKCASE SCREW
-
2011-29250 NUT, CRANKCASE TO CYLINDER BLOCK SCREWNUT, CRANKCASE TO CYLINDER BLOCK SCREW
-
2110-36351 SCREW, MAIN BEARING LOCKINGSCREW, MAIN BEARING LOCKING
-
2214-20091 TAB WASHER, BEARING LOCKING SCREWTAB WASHER, BEARING LOCKING SCREW
-
2310-20359 SCREW, CENTER MAIN BEARING LOCKINGSCREW, CENTER MAIN BEARING LOCKING
-
241126-1751A1 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
2521-28481A1 CHECK VALVE ASSEMBLY, END CAPCHECK VALVE ASSEMBLY, END CAP
-
2626-29478 OIL SEAL, LOWEROIL SEAL, LOWER
-
2726-41953 OIL SEAL, UPPEROIL SEAL, UPPER
-
2825-20081 "O" RING"O" RING
-
2930-63742T BALL BEARINGBALL BEARING
-
3015-20085A1 SHIM, LOWER END CAP TO CRANKCASE (.002-3-5-10)SHIM, LOWER END CAP TO CRANKCASE (.002-3-5-10)
-
3110-30225 SCREW, LOWER END CAP MOUNTINGSCREW, LOWER END CAP MOUNTING
-
3232-8M0108355 TUBE, BALANCE - MAIN BEARINGTUBE, BALANCE - MAIN BEARING
-
3322-996642 ELBOW, BALANCE TUBE TO MAIN BEARING SCREWELBOW, BALANCE TUBE TO MAIN BEARING SCREW
-
3454-20386 CLAMP, BALANCE TUBE TO ELBOWCLAMP, BALANCE TUBE TO ELBOW
-
3527-33529 GASKET, CYLINDER BLOCK TO MAINFOLD PLATEGASKET, CYLINDER BLOCK TO MAINFOLD PLATE
-
3637447 PLATE, EXHAUST MANIFOLDPLATE, EXHAUST MANIFOLD
-
3727-33530 GASKET, MANIFOLD PLATE TO MAINFOLD COVERGASKET, MANIFOLD PLATE TO MAINFOLD COVER
-
3830190 COVER, EXHAUST MAINFOLDCOVER, EXHAUST MAINFOLD
-
3910-28667 SCREW, MANIFOLD PLATE AND COVER MOUNTINGSCREW, MANIFOLD PLATE AND COVER MOUNTING
-
4010-28666 SCREW, MANIFOLD PLATE, COVER AND CLAMP MOUNTINGSCREW, MANIFOLD PLATE, COVER AND CLAMP MOUNTING
-
4112-20028 WASHER, PLATE, COVER AND CLAMP MOUNTING SCREWWASHER, PLATE, COVER AND CLAMP MOUNTING SCREW
-
4254-29425 CLAMP, SPARK PLUG LEADS TO COVERCLAMP, SPARK PLUG LEADS TO COVER
-
4330109 GROUND STRAP, CYLINDER BLOCK TO BOTTOM COWLGROUND STRAP, CYLINDER BLOCK TO BOTTOM COWL
-
4458124A1 SWITCH, MERCURYSWITCH, MERCURY
-
4554-22875 CLAMP, MERCURY SWITCH TO MANIFOLD COVERCLAMP, MERCURY SWITCH TO MANIFOLD COVER
-
468M0084613 "D" WASHER, CLAMP FASTENING SCREW"D" WASHER, CLAMP FASTENING SCREW
-
4710-20401 SCREW, MERCURY SWITCH CLAMP TO MAINFOLD COVERSCREW, MERCURY SWITCH CLAMP TO MAINFOLD COVER
-
4458124A1 SWITCH, MERCURYSWITCH, MERCURY
-
4710-28708 SCREW, MERCURY SWITCH TO MANIFOLD COVERSCREW, MERCURY SWITCH TO MANIFOLD COVER
-
4827-33015 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
491012-2077A1 CYLINDER BLOCK COVER ASSEMBLYCYLINDER BLOCK COVER ASSEMBLY
-
5023-26348 BUSHING, COVER - COWL MOUNTING STUDBUSHING, COVER - COWL MOUNTING STUD
-
5110-21091 SCREW, CYLINDER BLOCK COVER MOUNTINGSCREW, CYLINDER BLOCK COVER MOUNTING
-
5211-20184 NUT, COVER MOUNTING SCREWNUT, COVER MOUNTING SCREW
-
5327-31304 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
5431288 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
5510-20540 SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")
-
5622-62365A1 CHECK VALVE ASSEMBLY, UPPER - BLEED HOSECHECK VALVE ASSEMBLY, UPPER - BLEED HOSE
-
5721-28481A1 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
5832-9912688 HOSE, CYLINDER BLEED (8 1/2")HOSE, CYLINDER BLEED (8 1/2")
-
5922-67902 CONNECTOR, LOWER - BLEED HOSECONNECTOR, LOWER - BLEED HOSE
-
6054-20387 CLAMP, BLEED HOSE TO CHECK VALVE AND CONNECTORCLAMP, BLEED HOSE TO CHECK VALVE AND CONNECTOR
