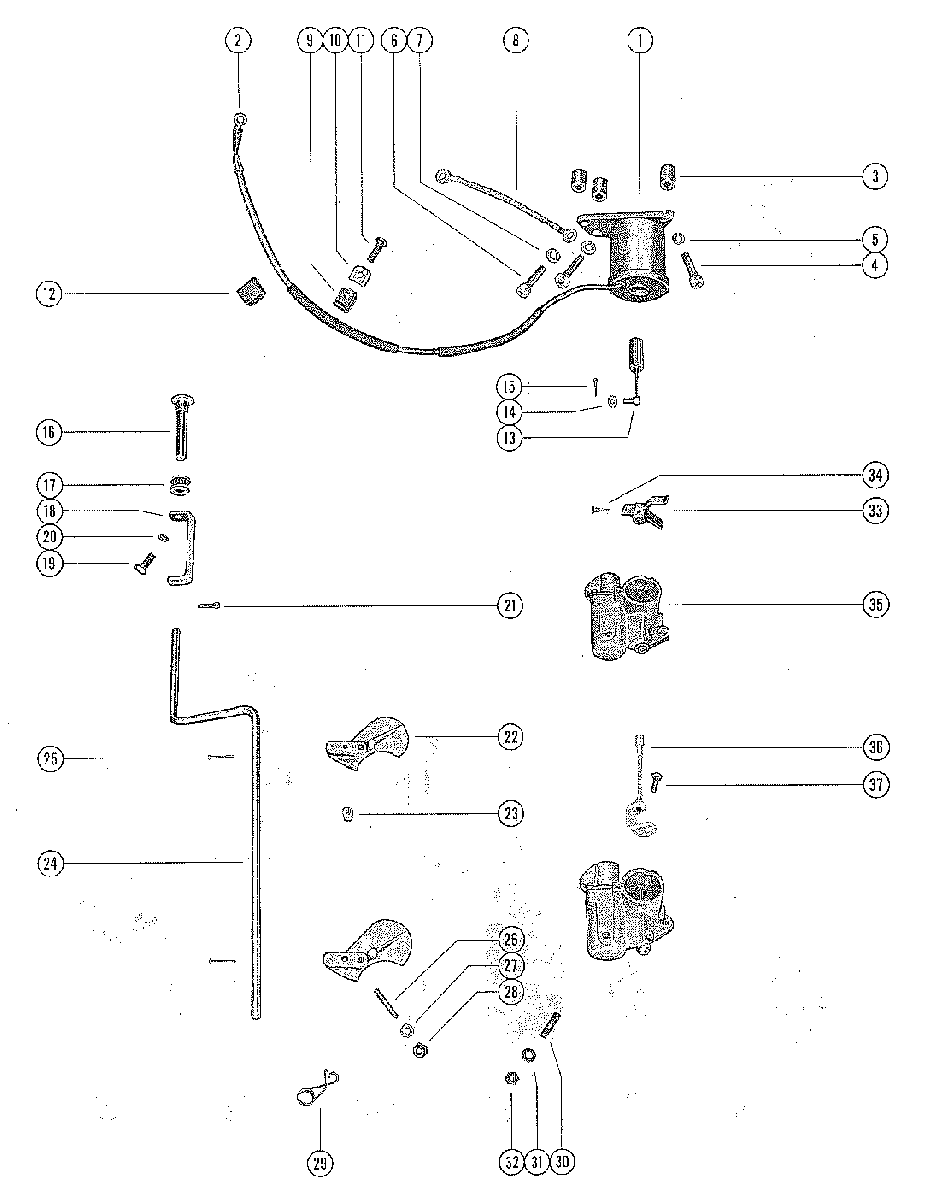

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 650 (4 CYL.) 1542745 THRU 1765043
-
№АртикулНазвание
-
129690 CHOKE SOLENOID, TOP COWLCHOKE SOLENOID, TOP COWL
-
230050 TERMINAL, CHOKE SOLENOID LEADTERMINAL, CHOKE SOLENOID LEAD
-
323-33018 SPACER, CHOKE SOLENOID SCREWSPACER, CHOKE SOLENOID SCREW
-
410-33024 SCREW, CHOKE SOLENOID TO TOP COWL (1 1/4")SCREW, CHOKE SOLENOID TO TOP COWL (1 1/4")
-
513-26991 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
610-24770 SCREW, CHOKE SOLENOID TO TOP COWL ( 1 3/8")SCREW, CHOKE SOLENOID TO TOP COWL ( 1 3/8")
-
713-26992 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
8397-421A2 GROUND STRAP ASSEMBLY, CHOKE SOLENOID TO ADAPTORGROUND STRAP ASSEMBLY, CHOKE SOLENOID TO ADAPTOR
-
954-648552 CLIP, CHOKE SOLENOID WIRECLIP, CHOKE SOLENOID WIRE
-
108M0084613 "D" WASHER, WIRE CLIP FASTENING SCREW"D" WASHER, WIRE CLIP FASTENING SCREW
-
1110-24239 SCREW, WIRE CLIP TO TOP COWLSCREW, WIRE CLIP TO TOP COWL
-
1254-22783 "S" CLIP, CHOKE SOLENOID WIRE TO TOP COWL"S" CLIP, CHOKE SOLENOID WIRE TO TOP COWL
-
1348315A4 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOIDPLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
-
1412-30164 WASHER, PLUNGER AND LINKWASHER, PLUNGER AND LINK
-
1518-26953 COTTER PIN, LINK TO UPPER CHOKE LEVERCOTTER PIN, LINK TO UPPER CHOKE LEVER
-
1690242A1 KNOB, CHOKE RODKNOB, CHOKE ROD
-
1725-20116 GROMMET, CHOKE RODGROMMET, CHOKE ROD
-
1822462 "U" LINK, CHOKE KNOB TO CHOKE ROD"U" LINK, CHOKE KNOB TO CHOKE ROD
-
1910-69022 SCREW, "U" LINK TO CHOKE KNOBSCREW, "U" LINK TO CHOKE KNOB
-
2013-26996 LOCKWASHER, "U" LINK SCREWLOCKWASHER, "U" LINK SCREW
-
2118-26953 COTTER PIN, "U" LINK TO CHOKE RODCOTTER PIN, "U" LINK TO CHOKE ROD
-
2247804 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
2323-30438 BUSHING, NYLON - UPPER CHOKE SHUTTERBUSHING, NYLON - UPPER CHOKE SHUTTER
-
2433003 ROD, CHOKEROD, CHOKE
-
2517-25391 RIVET, CHOKE SHUTTER TO CHOKE RODRIVET, CHOKE SHUTTER TO CHOKE ROD
-
2616-30172 STUD, CARBURETOR - CHOKE SHUTTER PIVOTSTUD, CARBURETOR - CHOKE SHUTTER PIVOT
-
2712-30164 WASHER, CHOKE SHUTTER CARBURETOR STUDWASHER, CHOKE SHUTTER CARBURETOR STUD
-
2811-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUDNUT, CHOKE SHUTTER TO CARBURETOR STUD
-
2924-32428 SPRING, TENSION - CHOKE ROD 1SPRING, TENSION - CHOKE ROD 1
-
3010-657461 STUD, CHOKE ROD SPRING TO CARBURETORSTUD, CHOKE ROD SPRING TO CARBURETOR
-
3123-32427 SPACER, CHOKE ROD SPRING STUDSPACER, CHOKE ROD SPRING STUD
-
3211-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUDNUT, CHOKE ROD SPRING TO CARBURETOR STUD
-
3374371 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
-
341395-6027 SCREW, CLUSTER TO THROTTLE LEVERSCREW, CLUSTER TO THROTTLE LEVER
-
351335-2088 CARBURETOR ASSEMBLY, COMPLETECARBURETOR ASSEMBLY, COMPLETE
-
3653649A2 THORTTLE PICK-UP BRACKET ASSEMBLYTHORTTLE PICK-UP BRACKET ASSEMBLY
-
3710-29239 SCREW, THROTTLE BRACKET MOUNTINGSCREW, THROTTLE BRACKET MOUNTING
