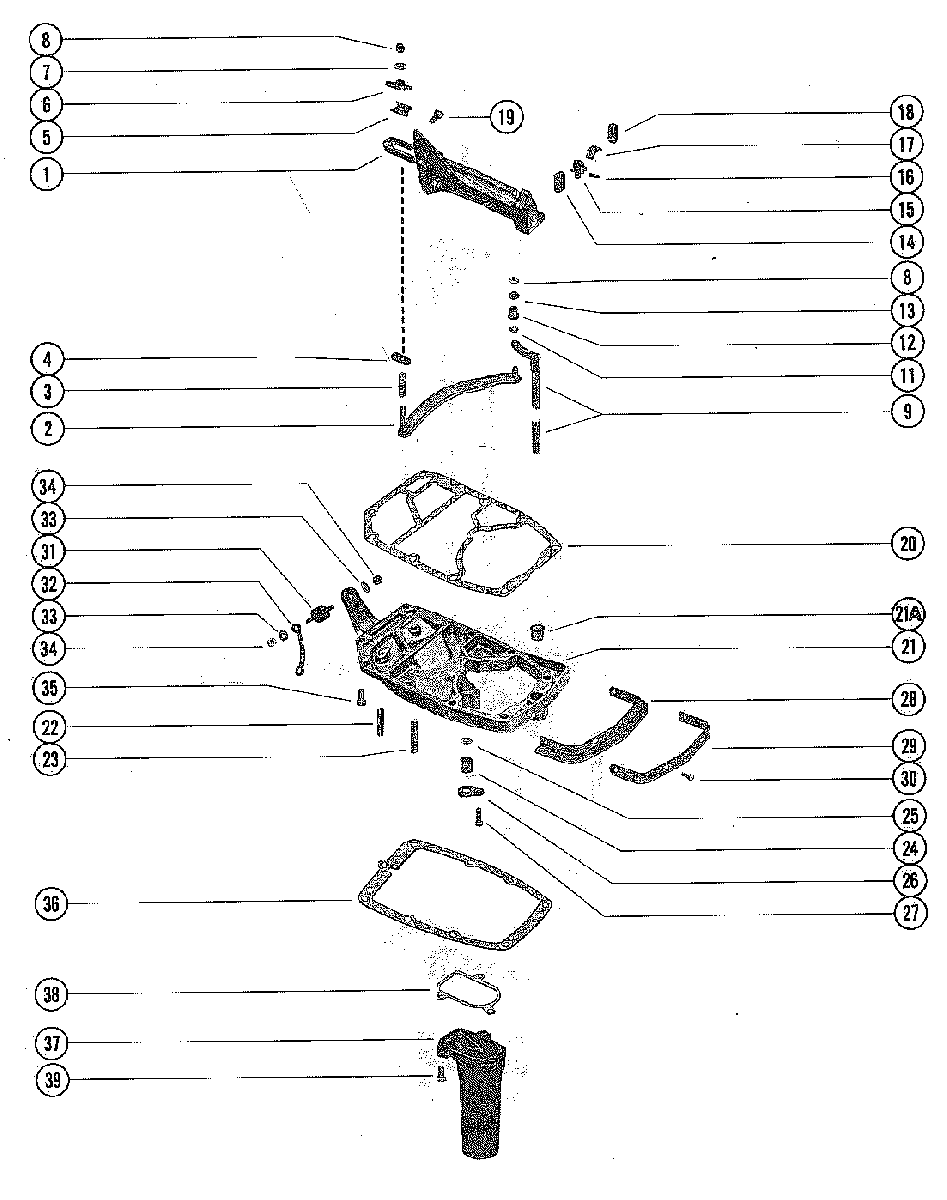

SHIFT LINKAGE AND EXHAUST PLATE для Mercury - 650 (3 CYL.) 4382057 THRU 4571651
-
№АртикулНазвание
-
1814283A2 BRACKET, ANCHOR-CONTROL CABLESBRACKET, ANCHOR-CONTROL CABLES
-
260283A1 LINK ASSEMBLY, SHIFT SHAFT AND ANCHOR BRACKETLINK ASSEMBLY, SHIFT SHAFT AND ANCHOR BRACKET
-
324-20099 SPRING, LINK TO ANCHOR BRACKETSPRING, LINK TO ANCHOR BRACKET
-
437896 GUIDE BLOCK, LINKGUIDE BLOCK, LINK
-
552100 WEAR PLATE, NYLON-LINKWEAR PLATE, NYLON-LINK
-
68M0036768 LATCH, LINK TO ANCHOR BRACKETLATCH, LINK TO ANCHOR BRACKET
-
712-69056 WASHER, LINK LATCHWASHER, LINK LATCH
-
811-826709109 NUT, LINK ATTACHINGNUT, LINK ATTACHING
-
975007A3 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
-
975008A5 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
-
1113-29720 WASHER, WAVE-SHIFT SHAFT TO LINKWASHER, WAVE-SHIFT SHAFT TO LINK
-
1223-26600 BUSHING, NYLON-SHIFT SHAFT TO LINKBUSHING, NYLON-SHIFT SHAFT TO LINK
-
1312-24664 WASHER, LINK (SHIFT SHAFT END)WASHER, LINK (SHIFT SHAFT END)
-
1439519 CUP, RETAINER-ANCHOR BRACKETCUP, RETAINER-ANCHOR BRACKET
-
1587609A1 LEVER, NYLON-SHIFT CABLE LOCKINGLEVER, NYLON-SHIFT CABLE LOCKING
-
1617-47175 PIN, LOCKING LEVER AND COVER FASTENINGPIN, LOCKING LEVER AND COVER FASTENING
-
1787609A1 LINK, LOCKING LEVER TO COVERLINK, LOCKING LEVER TO COVER
-
1839667 COVER, NYLON-SHIFT CABLECOVER, NYLON-SHIFT CABLE
-
1910-69101 SCREW, ANCHOR BRACKET TO CRANKCASE/CYL. BLOCK (7/8")SCREW, ANCHOR BRACKET TO CRANKCASE/CYL. BLOCK (7/8")
-
2027-60317 GASKET, POWERHEAD TO EXHAUST PLATEGASKET, POWERHEAD TO EXHAUST PLATE
-
2173712A3 EXHAUST PLATE ASSEMBLYEXHAUST PLATE ASSEMBLY
-
21A23-27132 BUSHING, NYLON-EXHAUST PLATEBUSHING, NYLON-EXHAUST PLATE
-
2216-8M0034449 STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (1 11/16")STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (1 11/16")
-
2316-68166 STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (2 1/8")STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (2 1/8")
-
2473156 SEAL, WATER INLET TUBESEAL, WATER INLET TUBE
-
2512-38453 WASHER, NYLON-WATER INLET TUBE SEALWASHER, NYLON-WATER INLET TUBE SEAL
-
2638500 RETAINER, WATER INLET TUBE SEALRETAINER, WATER INLET TUBE SEAL
-
2710-69069 SCREW, RETAINER TO EXHAUST PLATE (3/4")SCREW, RETAINER TO EXHAUST PLATE (3/4")
-
2860307 SEAL, EXHAUST PLATESEAL, EXHAUST PLATE
-
2960306 STRIP, RETAINING-EXHAUST PLATE SEALSTRIP, RETAINING-EXHAUST PLATE SEAL
-
3010-62568 SCREW, RETAINING STRIP TO EXHAUST PLATE (3/8")SCREW, RETAINING STRIP TO EXHAUST PLATE (3/8")
-
3190435 MOUNT, RUBBER-EXHAUST PLATE TO REAR COWL SUPPORTMOUNT, RUBBER-EXHAUST PLATE TO REAR COWL SUPPORT
-
3249651A1 GROUND STRAP ASS'Y, EXHAUST PLATE TO REAR COWL SUPPORTGROUND STRAP ASS'Y, EXHAUST PLATE TO REAR COWL SUPPORT
-
3312-69057 WASHER, RUBBER MOUNT ATTAHCINGWASHER, RUBBER MOUNT ATTAHCING
-
3411-8267089 NUT, RUBBER MOUNT TO EXHAUST PLATENUT, RUBBER MOUNT TO EXHAUST PLATE
-
3510-37562 SCREW, EXHAUST PLATE PLATE TO CYLINDER BLOCK (1")SCREW, EXHAUST PLATE PLATE TO CYLINDER BLOCK (1")
-
3627-385011 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSINGGASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
-
3758911 EXHAUST TUBE, ADAPTOREXHAUST TUBE, ADAPTOR
-
3827-602801 GASKET, EXHAUST TUBE TO EXHAUST PLATEGASKET, EXHAUST TUBE TO EXHAUST PLATE
-
3910-28636 SCREW, EXHAUST TUBE TO EXHAUST PLATE (3/4")SCREW, EXHAUST TUBE TO EXHAUST PLATE (3/4")
