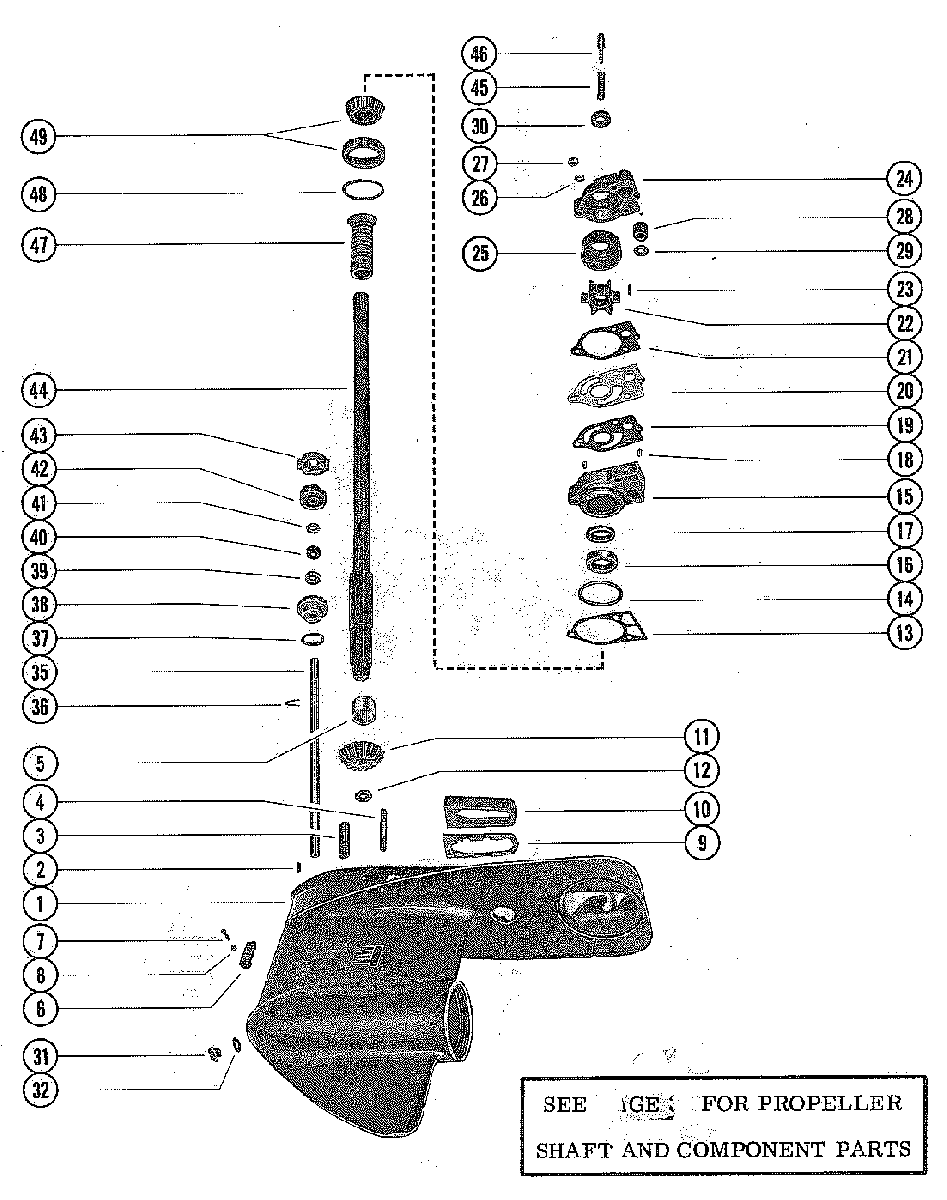

GEAR HOUSING ASSEMBLY, COMPLETE (G6) для Mercury - 650 (3 CYL.) 4382057 THRU 4571651

  • №
    Артикул
    Название
  • -
    1643-6038A9 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE FOOTNOTE
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE FOOTNOTE
  • -
    1643-6038A10 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE FOOTNOTE
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE FOOTNOTE
  • 1
    1643-6038A6 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    17-21438 PIN, DOWEL-GEAR HOUSING
    PIN, DOWEL-GEAR HOUSING
  • 3
    16-33778 STUD, WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")
    STUD, WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")
  • 4
    16-8M0034453 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")
  • 5
    31-62091T BEARING, ROLLER-DRIVE SHAFT
    BEARING, ROLLER-DRIVE SHAFT
  • 6
    72849A1 SCREEN ASSEMBLY, PORT AND STARBOARD (SHORT SHAFT)
    SCREEN ASSEMBLY, PORT AND STARBOARD (SHORT SHAFT)
  • 6
    72849A1 SCREEN, WATER INTAKE-STARBOARD -LONG SHAFT
    SCREEN, WATER INTAKE-STARBOARD -LONG SHAFT
  • 6
    72849A1 SCREEN, WATER INTAKE-PORT -LONG SHAFT
    SCREEN, WATER INTAKE-PORT -LONG SHAFT
  • 7
    10-36070 SCREW, SCREENS TO GEAR HOUSING (1 1/4")
    SCREW, SCREENS TO GEAR HOUSING (1 1/4")
  • 8
    11-859124 NUT, SCREEN TO GEAR HOUSING SCREW
    NUT, SCREEN TO GEAR HOUSING SCREW
  • 9
    92815 PLATE, SUPPORT-EXHAUST TUBE SEAL
    PLATE, SUPPORT-EXHAUST TUBE SEAL
  • 10
    37721001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 11
    43-60245 GEAR, PINION-DRIVE SHAFT
    GEAR, PINION-DRIVE SHAFT
  • 12
    11-55910 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 13
    27-32771 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 14
    25-26855 "O"RING, WATER PUMP BASE
    "O"RING, WATER PUMP BASE
  • 15
    46-73640T01 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 16
    26-79831 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 17
    26-90562 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 18
    17-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
  • 19
    27-19553 GASKET, LOWER-WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER-WATER PUMP BASE TO FACE PLATE
  • 20
    32768 PLATE, FACE-WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE-WATER PUMP BASE TO WATER PUMP BODY
  • 21
    27-19551 GASKET, UPPER-FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER-FACE PLATE TO WATER PUMP BODY
  • 22
    47-89983T IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 23
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 24
    46-77822A1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 25
    48753 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 26
    12-29245 WASHER, WATER PUMP BODY AND BASE STUDS
    WASHER, WATER PUMP BODY AND BASE STUDS
  • 27
    11-36069 NUT, WATER PUMP BODY AND BASE STUDS
    NUT, WATER PUMP BODY AND BASE STUDS
  • 28
    26-38452 SEAL, WATER PUMP BODY TO WATER TUBE
    SEAL, WATER PUMP BODY TO WATER TUBE
  • 29
    12-38453 WASHER, CUPPED-WATER TUBE SEAL
    WASHER, CUPPED-WATER TUBE SEAL
  • 30
    25-20273 RING, RUBBER-CENTRIFUGAL SLINGER
    RING, RUBBER-CENTRIFUGAL SLINGER
  • 31
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
  • 32
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW
    WASHER, GREASE FILLER AND VENT HOLE SCREW
  • 35
    69787A1 SHAFT ASSEMBLY, SHIFT-LOWER
    SHAFT ASSEMBLY, SHIFT-LOWER
  • 36
    53-29641 CLIP, RETAINING-SHIFT SHAFT
    CLIP, RETAINING-SHIFT SHAFT
  • 37
    25-25439 "O"RING, SHIFT SHAFT BUSHING
    "O"RING, SHIFT SHAFT BUSHING
  • 38
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 39
    26-24590 OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
    OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
  • 40
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
    OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
  • 41
    12-31266 WASHER, RUBBER-SHIFT SHAFT BUSHING
    WASHER, RUBBER-SHIFT SHAFT BUSHING
  • 42
    78036 BASE, LOWER-REVERSE LOCKING
    BASE, LOWER-REVERSE LOCKING
  • 43
    69542 CAM, REVERSE LOCKING
    CAM, REVERSE LOCKING
  • 44
    45-76089A2 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
    DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
  • 44
    45-76088A2 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT ASSEMBLY (LONG SHAFT)
  • 45
    24-20254 SPRING, COMPRESSION-DRIVE SHAFT
    SPRING, COMPRESSION-DRIVE SHAFT
  • 46
    17-30545 PIN, DRIVE SHAFT
    PIN, DRIVE SHAFT
  • 47
    88181 SLEEVE, LUBRICATION-DRIVE SHAFT
    SLEEVE, LUBRICATION-DRIVE SHAFT
  • 48
    15-20929A1 SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)
  • 49
    31-38146A1 ROLLER BEARING ASSEMBLY, TAPERED-DRIVE SHAFT
    ROLLER BEARING ASSEMBLY, TAPERED-DRIVE SHAFT
