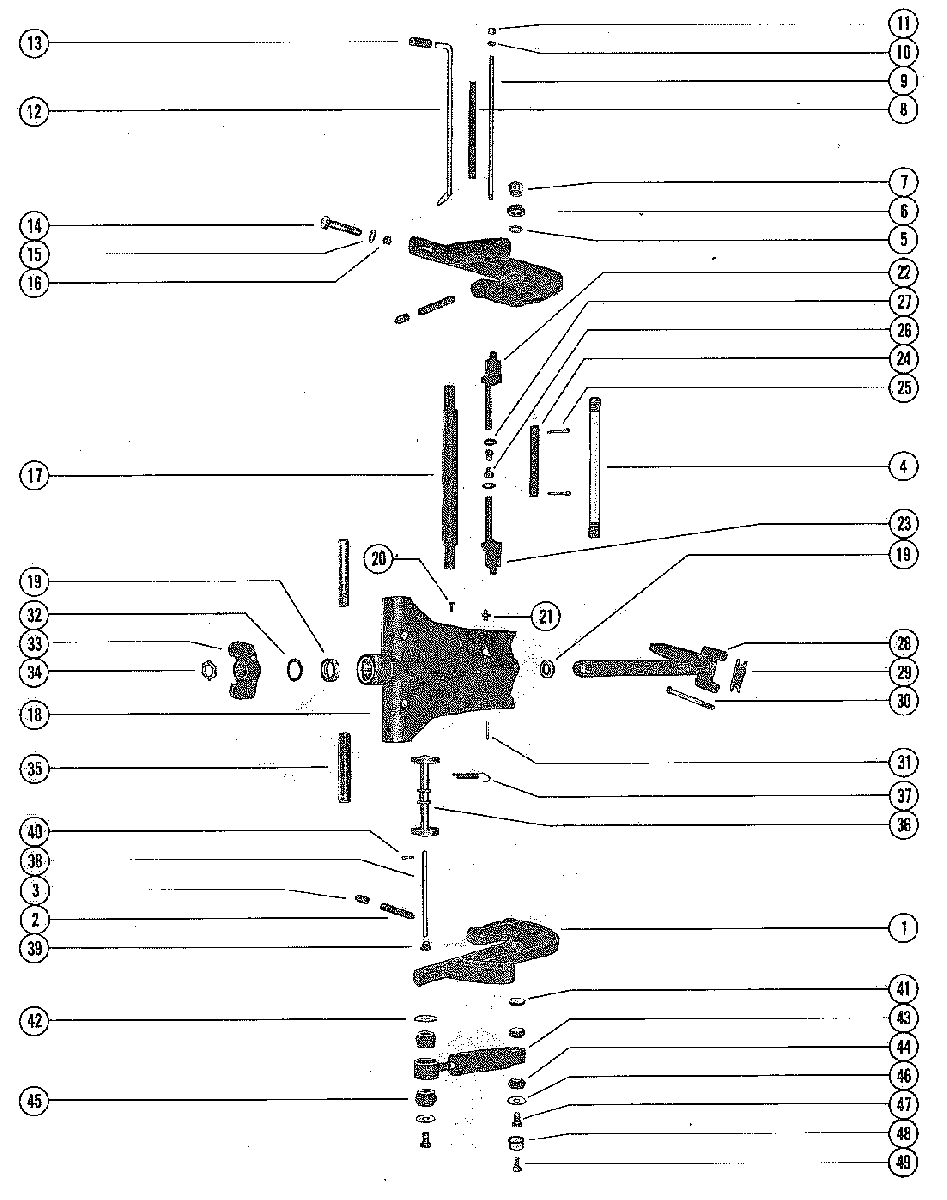

CLAMP AND SWIVEL BRACKET ASSEMBLY (G2) для Mercury - 650 (3 CYL.) 4382057 THRU 4571651

  • №
    Артикул
    Название
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    75043 CAP, THUMB SCREW
    CAP, THUMB SCREW
  • 4
    8M0041936 TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    12-52864 WASHER, CLAMP BRACKET TILT TUBE
    WASHER, CLAMP BRACKET TILT TUBE
  • 6
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 7
    53078 CAP, PLASTIC -TILT TUBE
    CAP, PLASTIC -TILT TUBE
  • 8
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 9
    16-59625 STUD, CLAMP BRACKET (9 1/2")
    STUD, CLAMP BRACKET (9 1/2")
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-28770 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 13
    32-28052 SLEEVE, RUBBER-TILT LOCK PIN BUMPER
    SLEEVE, RUBBER-TILT LOCK PIN BUMPER
  • 14
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
    BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
  • 15
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 14
    10-68299 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")
    BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")
  • 15
    12-68300 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 16
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 17
    55-28416 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
  • 18
    1489-8597A4 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
    SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
  • 18
    1490-8599A6 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
  • 19
    26-32911 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 20
    10-47828 SCREW, DRIVE-SWIVEL BRACKET
    SCREW, DRIVE-SWIVEL BRACKET
  • 21
    22-74036 FITTING, GREASE
    FITTING, GREASE
  • 22
    76386 TILT LOCK ASSEMBLY, STARBOARD
    TILT LOCK ASSEMBLY, STARBOARD
  • 23
    76385T TILT LOCK ASSEMBLY, PORT
    TILT LOCK ASSEMBLY, PORT
  • 24
    47802 TUBE, TILT LOCK
    TUBE, TILT LOCK
  • 25
    18-47959 COTTER PIN, TILT LOCK
    COTTER PIN, TILT LOCK
  • 26
    23-71574 BUSHING, TILT LOCK TUBE
    BUSHING, TILT LOCK TUBE
  • 27
    13-69150 WASHER, WAVE-TILT LOCK TUBE
    WASHER, WAVE-TILT LOCK TUBE
  • 28
    69540A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
    SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
  • 28
    69540A2 SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
    SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
  • 29
    30711 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 30
    10-66897 BOLT, UPPER MOUNT TO SWIVEL PIN (7/16 X 5 1/4")
    BOLT, UPPER MOUNT TO SWIVEL PIN (7/16 X 5 1/4")
  • 31
    17-25598 PIN, REVERSE LOCK SPRING ATTACHING
    PIN, REVERSE LOCK SPRING ATTACHING
  • 32
    12-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.062)
    WASHER, SWIVEL PIN TO BOTTOM YOKE (.062)
  • 32
    12-26837 WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
    WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
  • 33
    77416T1 YOKE, BOTTOM
    YOKE, BOTTOM
  • 34
    11-71956 NUT, SWIVEL PIN RETAINING
    NUT, SWIVEL PIN RETAINING
  • 35
    55-696531 PIN, LOWER SHOCK MOUNTING
    PIN, LOWER SHOCK MOUNTING
  • 36
    87432 REVERSE LOCK
    REVERSE LOCK
  • 37
    24-29821 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 38
    56349 SHAFT, REVERSE LOCK PIVOT
    SHAFT, REVERSE LOCK PIVOT
  • 39
    23-69132 BUSHING, REVERSE PIVOT SHAFT
    BUSHING, REVERSE PIVOT SHAFT
  • 40
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 41
    23-73203 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
    SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
  • 42
    12-59378 WASHER, LOWER BUSHING RETAINER (INNER)
    WASHER, LOWER BUSHING RETAINER (INNER)
  • 43
    55-58780A7 SHOCK ABSORBER
    SHOCK ABSORBER
  • 44
    23-32171 BUSHING, RUBBER-SHOCK ABSORBER (UPPER)
    BUSHING, RUBBER-SHOCK ABSORBER (UPPER)
  • 45
    23-28198 BUSHING, RUBBER-SHOCK ABSORBER (LOWER)
    BUSHING, RUBBER-SHOCK ABSORBER (LOWER)
  • 46
    12-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
    WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
  • 47
    10-69375A1 SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")
    SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")
  • 48
    70679 COVER, UPPER AND LOWER SHOCK MOUNTING PIN
    COVER, UPPER AND LOWER SHOCK MOUNTING PIN
  • 49
    10-37655 SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")
    SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")
