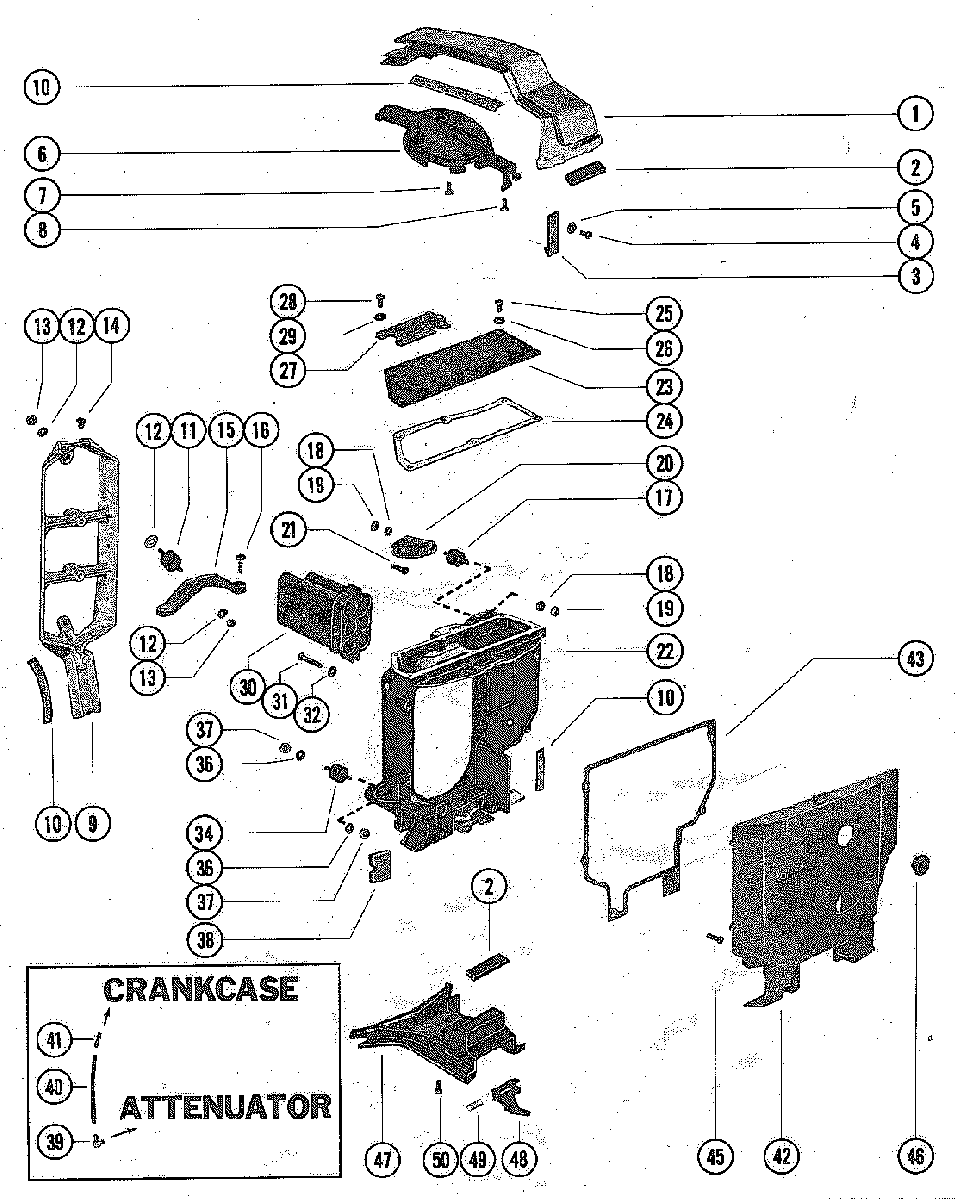

COWL SUPPORT BRACKETS для Mercury - 650 (3 CYL.) 4382057 THRU 4571651

  • №
    Артикул
    Название
  • 1
    73641A1 BRACKET, COWL SUPPORT-TOP
    BRACKET, COWL SUPPORT-TOP
  • 2
    62444 SEAL, RUBBER-TOP BRACKET AND COVER MOUNTING PLATE
    SEAL, RUBBER-TOP BRACKET AND COVER MOUNTING PLATE
  • 3
    79652 CLIP, TOP COWL SUPPORT BRACKET
    CLIP, TOP COWL SUPPORT BRACKET
  • 4
    10-48408 SCREW, CLIP TO TOP COWL SUPPORT (1/2")
    SCREW, CLIP TO TOP COWL SUPPORT (1/2")
  • 5
    12-45075 WASHER, CLIP TO TOP COWL SUPPORT BRACKET
    WASHER, CLIP TO TOP COWL SUPPORT BRACKET
  • 6
    79490 SHIELD FLYWHEEL
    SHIELD FLYWHEEL
  • 7
    10-37656 SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8")
    SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8")
  • 8
    10-48408 SCREW, SHIELD TO TOP SUPPORT BRACKET (1/2")
    SCREW, SHIELD TO TOP SUPPORT BRACKET (1/2")
  • 9
    74510A2 BRACKET, COWL SUPPORT-REAR
    BRACKET, COWL SUPPORT-REAR
  • 10
    698761 SEAL, REAR BRACKET AND TOP BRACKET
    SEAL, REAR BRACKET AND TOP BRACKET
  • 11
    90435 MOUNT, RUBBER-BRACE TO REAR SUPPORT BRACKET
    MOUNT, RUBBER-BRACE TO REAR SUPPORT BRACKET
  • 12
    12-69057 WASHER, RUBBER MOUNT TO REAT SUPPORT BRACKET
    WASHER, RUBBER MOUNT TO REAT SUPPORT BRACKET
  • 13
    11-826709109 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
    NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 14
    269011 STOP, RUBBER-REAR SUPPORT BRACKET
    STOP, RUBBER-REAR SUPPORT BRACKET
  • 15
    60116 BRACE, REAR COWL SUPPORT BRACKET (TOP)
    BRACE, REAR COWL SUPPORT BRACKET (TOP)
  • 16
    10-24878 SCREW, SUPPORT BRK. BRACE TO CYL. BLOCK COVER (1 3/8")
    SCREW, SUPPORT BRK. BRACE TO CYL. BLOCK COVER (1 3/8")
  • 17
    90435 MOUNT, RUBBER- FRONT SUPPORT BRACKET TO BRACKET
    MOUNT, RUBBER- FRONT SUPPORT BRACKET TO BRACKET
  • 18
    12-69057 WASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    WASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
  • 19
    11-8267089 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
  • 20
    71097 BRACKET, RUBBER MOUNT
    BRACKET, RUBBER MOUNT
  • 21
    10-39349 SCREW, BRACKET TO CRANKCASE (3/4")
    SCREW, BRACKET TO CRANKCASE (3/4")
  • 22
    79489 ATTENUATOR, SOUND
    ATTENUATOR, SOUND
  • 23
    76218 COVER, TOP-SOUND ATTENUATOR
    COVER, TOP-SOUND ATTENUATOR
  • 24
    27-71096 GASKET, TOP COVER
    GASKET, TOP COVER
  • 25
    10-37571 SCREW, TOP COVER TO SOUND ATTENUATOR (1/2")
    SCREW, TOP COVER TO SOUND ATTENUATOR (1/2")
  • 26
    12-56681 WASHER, TOP COVER SCREW
    WASHER, TOP COVER SCREW
  • 27
    75841 COVER, MANUAL CHOKE
    COVER, MANUAL CHOKE
  • 28
    10-37978 SCREW, COVER TO TOP COVER
    SCREW, COVER TO TOP COVER
  • 29
    12-56681 WASHER, COVER SCREW
    WASHER, COVER SCREW
  • 30
    73986 AIR MANIFOLD
    AIR MANIFOLD
  • 31
    10-69093 SCREW, AIR MANIFOLD TO SOUND ATTENUATOR
    SCREW, AIR MANIFOLD TO SOUND ATTENUATOR
  • 32
    12-29245 WASHER, AIR MANIFOLD SCREW
    WASHER, AIR MANIFOLD SCREW
  • 34
    90435 MOUNT, RUBBER-FRONT SUPPORT TO STARTER MOTOR COVER
    MOUNT, RUBBER-FRONT SUPPORT TO STARTER MOTOR COVER
  • 36
    12-69057 WASHER, RUBBER MOUNT ATTACHING
    WASHER, RUBBER MOUNT ATTACHING
  • 37
    11-8267089 NUT, RUBBER MOUNT ATTACHING
    NUT, RUBBER MOUNT ATTACHING
  • 38
    76410 SEAL, FUEL CONNECTOR-FRONT SUPPORT BRACKET
    SEAL, FUEL CONNECTOR-FRONT SUPPORT BRACKET
  • 39
    21-428671 CONNECTOR ASSEMBLY, ATTENUATOR
    CONNECTOR ASSEMBLY, ATTENUATOR
  • 40
    32-9938779 TUBE, VENT (LOWER)
    TUBE, VENT (LOWER)
  • 41
    22-56759 FITTING, CRANKCASE VENT (PRESS IN)
    FITTING, CRANKCASE VENT (PRESS IN)
  • 42
    72956 COVER, SOUND ATTENUATOR (FRONT)
    COVER, SOUND ATTENUATOR (FRONT)
  • 43
    27-76579 GASKET, FRONT COVER
    GASKET, FRONT COVER
  • 45
    10-37571 SCREW, FRONT COVER TO SOUND ATTENUATOR (1/2")
    SCREW, FRONT COVER TO SOUND ATTENUATOR (1/2")
  • 46
    19-73336 PLUG, FRONT COVER
    PLUG, FRONT COVER
  • 47
    76251A1 PLATE ASSEMBLY, FRONT COVER MOUNTING
    PLATE ASSEMBLY, FRONT COVER MOUNTING
  • 48
    76264 LATCH, FRONT COVER ATTACHING
    LATCH, FRONT COVER ATTACHING
  • 49
    24-60295 SPRING, FRONT COVER LATCH
    SPRING, FRONT COVER LATCH
  • 50
    10-28635 SCREW, COVER PLATE TO SUPPORT BRACKET (5/8")
    SCREW, COVER PLATE TO SUPPORT BRACKET (5/8")
