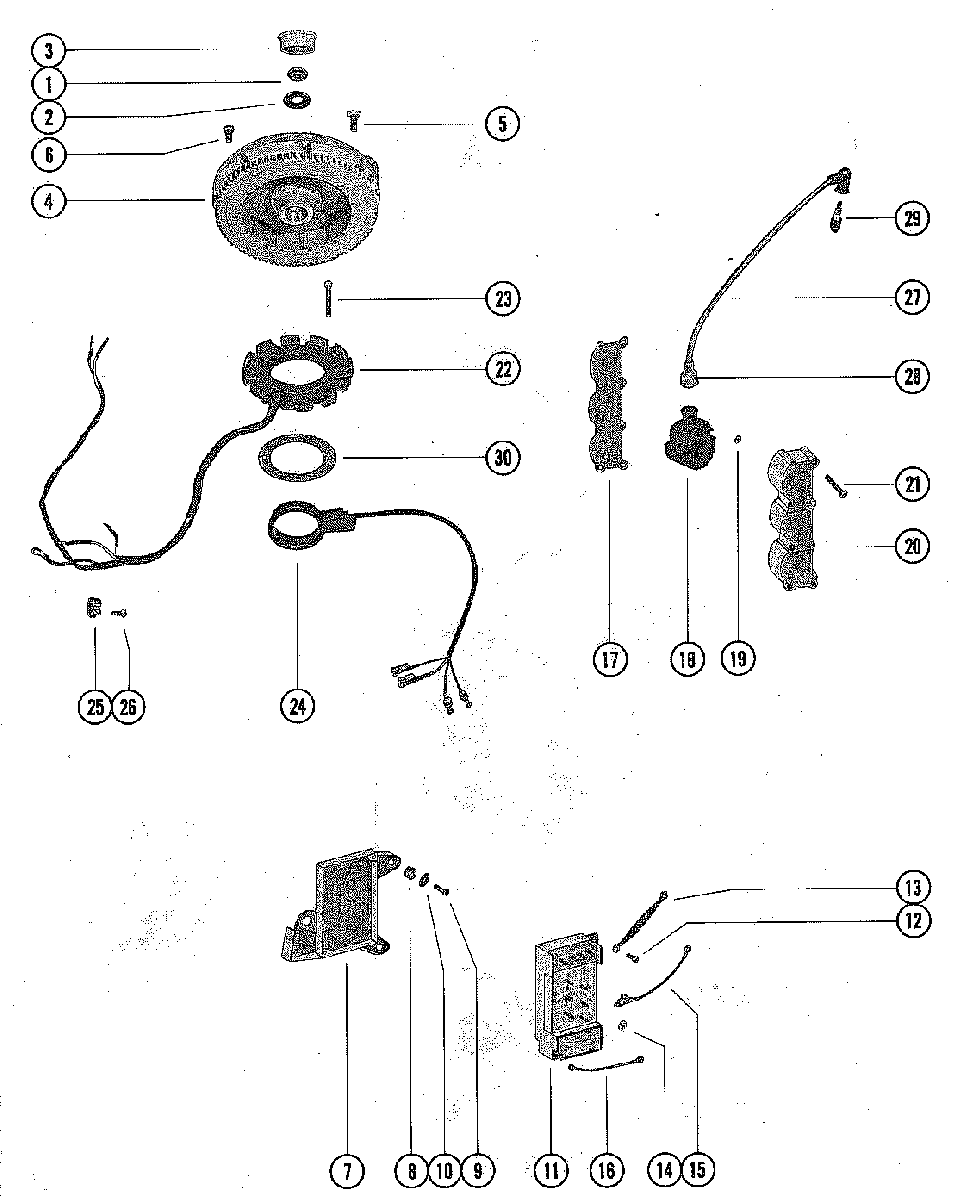

FLYWHEEL, SWITCH BOX, IGNITION COIL AND STATOR ASSEMBLY для Mercury - 650 (3 CYL.) 4382057 THRU 4571651
-
№АртикулНазвание
-
111-52901 NUT, FLYWHEELNUT, FLYWHEEL
-
212-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
319-45907 PLUG, FLYWHEEL PULLER THREADSPLUG, FLYWHEEL PULLER THREADS
-
4248-8722A5 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
510-68997 SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")
-
610-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
-
7889351 PLATE, SWITCHPLATE, SWITCH
-
825-57009001 GROMMET, SWITCH BOX PLATEGROMMET, SWITCH BOX PLATE
-
910-824941 SCREW, SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")SCREW, SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")
-
1012-56720 WASHER, SWITCH BOX PLATE SCREWWASHER, SWITCH BOX PLATE SCREW
-
11332-7778A12 SWITCH BOX ASSEMBLYSWITCH BOX ASSEMBLY
-
1210-26251 SCREW, SWITCH BOX TO PLATE (13/16")SCREW, SWITCH BOX TO PLATE (13/16")
-
1346933A6 WIRE ASSEMBLY, SWITCH BOX SCREWWIRE ASSEMBLY, SWITCH BOX SCREW
-
1411-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
1584-60443A3 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN)WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN)
-
1584-62822A1 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/WHITE)WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/WHITE)
-
1584-68896A1 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/RED)WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/RED)
-
1684-60466A17 WIRE ASSEMBLY, SWITCH BOX TO COIL (BLACK)WIRE ASSEMBLY, SWITCH BOX TO COIL (BLACK)
-
1773439 PLATE, MOUNTING-IGNITION COILPLATE, MOUNTING-IGNITION COIL
-
18339-5288T2 IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
1911-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
2043542 COVER, IGNITION COILCOVER, IGNITION COIL
-
2110-46368 SCREW, COVER TO MOUNTING PLATE (2")SCREW, COVER TO MOUNTING PLATE (2")
-
22398-5704A7 STATOR ASSEMBLYSTATOR ASSEMBLY
-
2310-63136 SCREW, STATOR TO UPPER END CAP (7/8")SCREW, STATOR TO UPPER END CAP (7/8")
-
2496455A8 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
2554-28700 CLAMP, STATOR LEADS ATTACHINGCLAMP, STATOR LEADS ATTACHING
-
2610-98253 SCREW, CLAMP TO CRANKCASE (1/2")SCREW, CLAMP TO CRANKCASE (1/2")
-
2784-813715A1 WIRE ASSEMBLY, SPARK PLUGWIRE ASSEMBLY, SPARK PLUG
-
28332-2854T01 BOOT, IGNITION COIL ENDBOOT, IGNITION COIL END
-
2933-97180Q SPARK PLUG (AC#V40FFM)SPARK PLUG (AC#V40FFM)
-
3015-74049 SHIM, STATORSHIM, STATOR
